11.2.3 MAC ACL
MAC ACLs analyze and process packets based on a series of match conditions, which can be the
source MAC addresses, destination MAC addresses, VLAN ID, and EtherType carried in the
packets.
Choose the menu ACL→ACL Config→MAC ACL to load the following page.

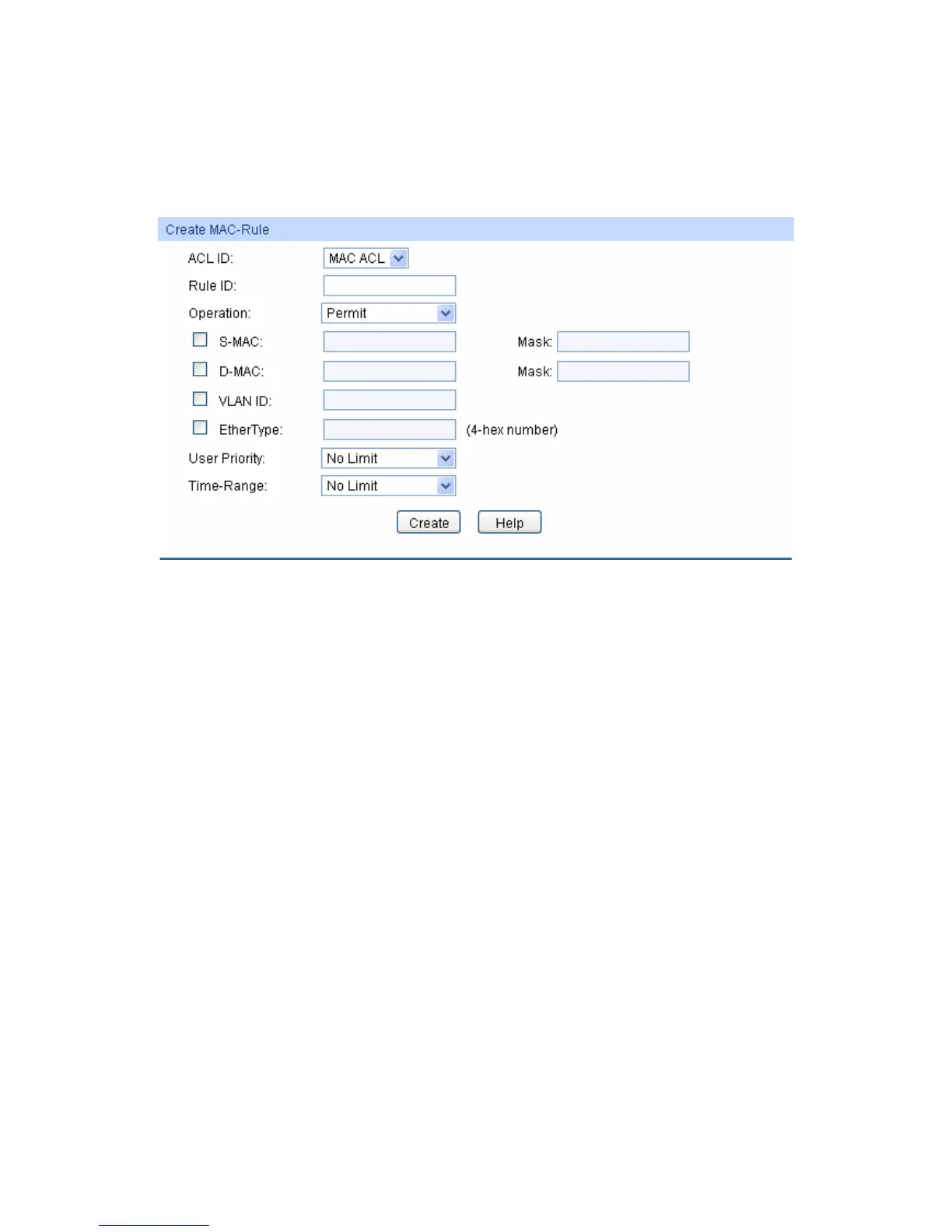

Figure11-6 Create MAC Rule
The following entries are displayed on this screen:
¾ Create MAC ACL
ACL ID: Select the desired MAC ACL for configuration.
Rule ID: Enter the rule ID.
Operation: Select the operation for the switch to process packets which match
the rules.
z Permit: Forward packets.
z Deny: Discard Packets.
S-MAC: Enter the source MAC address contained in the rule.
D-MAC: Enter the destination MAC address contained in the rule.
MASK: Enter MAC address mask. If it is set to 1, it must strictly match the
address.
VLAN ID: Enter the VLAN ID contained in the rule.
EtherType: Enter EtherType contained in the rule.
User Priority: Select the user priority contained in the rule for the tagged packets
to match.
Time-Range: Select the time-range for the rule to take effect.
