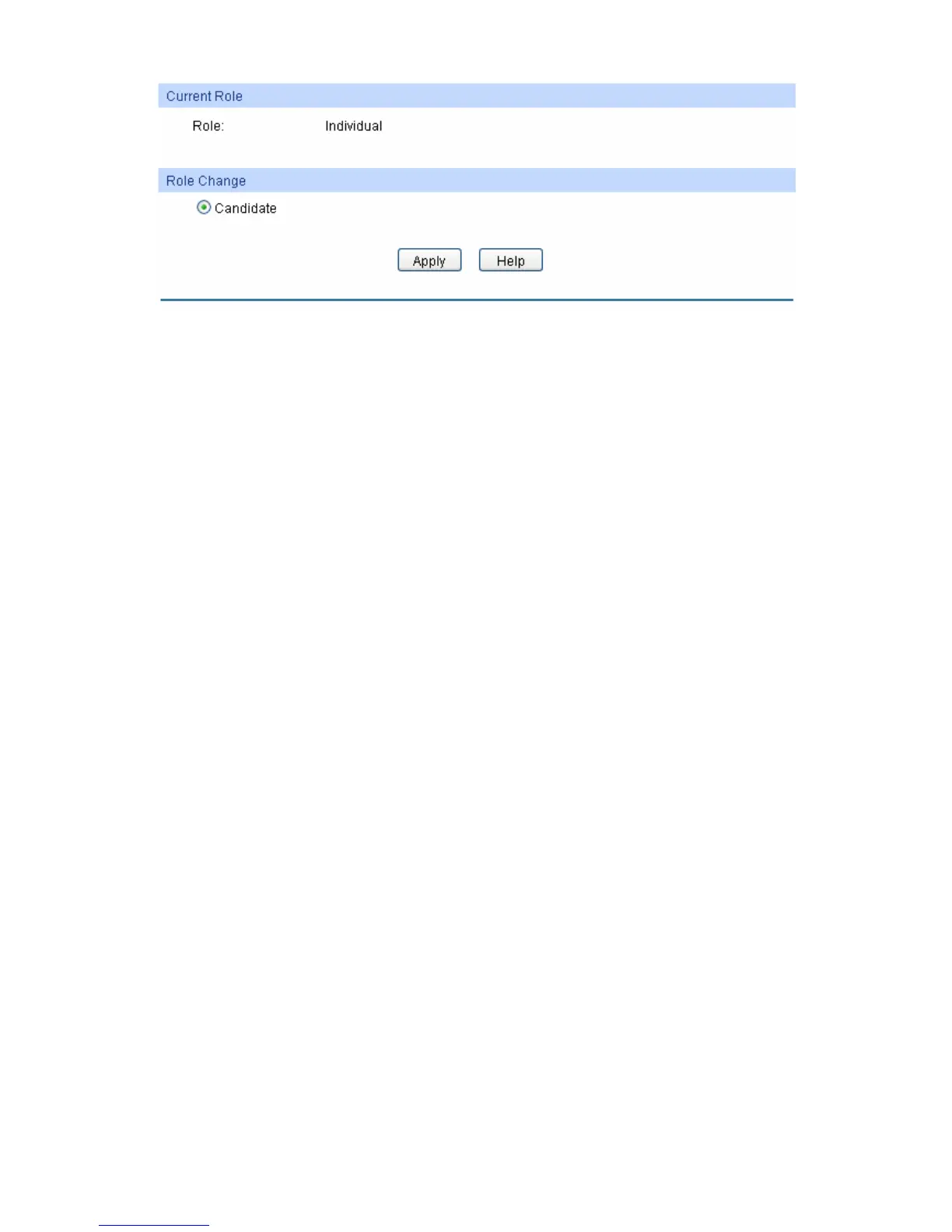

Figure 15-14 Cluster Configuration for Individual Switch
The following entries are displayed on this screen:
¾ Current Role
Role: Displays the role the current switch plays in the cluster.
¾ Role Change
Candidate: Select this option to change the role of the switch to be candidate
switch.
15.4 Application Example for Cluster Function
¾ Network Requirements
Three switches form cluster, one commander switch (Here take TP-LINK TL-SL5428E as an
example) and two member switches (Here take TP-LINK TL-SG32424P as an example). The
administrator manages all the switches in the cluster via the commander switch.
z Port 1 of the commander switch is connecting to the external network, port 2 is connecting to
member switch 1 and port 3 is connecting to member switch 2.
z IP pool: 175.128.0.1, Mask: 255.255.255.0.
¾ Network Diagram
