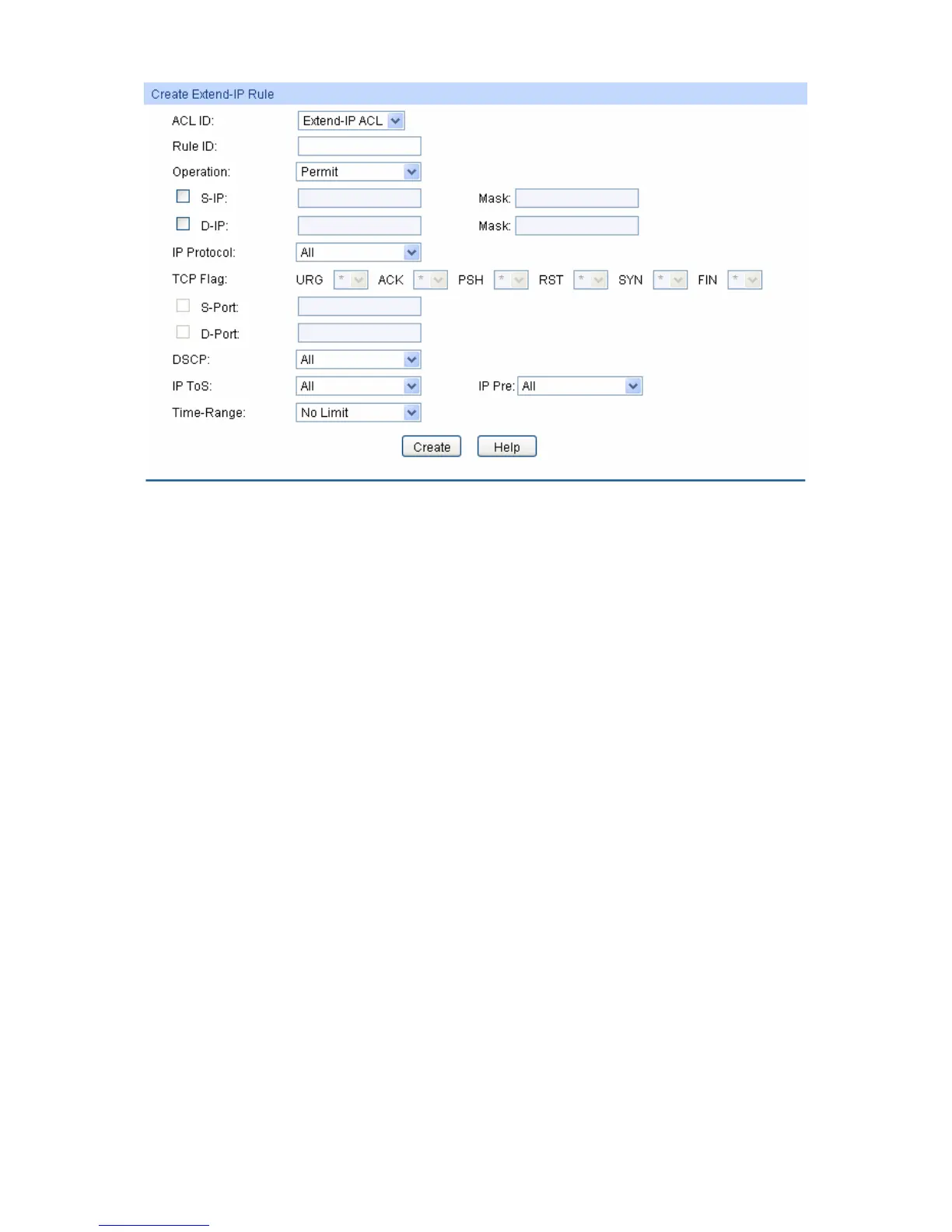

Figure11-8 Create Extend-IP Rule
The following entries are displayed on this screen:
¾ Create Extend-IP ACL
ACL ID: Select the desired Extend-IP ACL for configuration.
Rule ID: Enter the rule ID.
Operation: Select the operation for the switch to process packets which match
the rules.
z Permit: Forward packets.
z Deny: Discard Packets.
S-IP: Enter the source IP address contained in the rule.
D-IP: Enter the destination IP address contained in the rule.
Mask: Enter IP address mask. If it is set to 1, it must strictly match the
address.
IP Protocol: Select IP protocol contained in the rule.
TCP Flag：
Configure TCP flag when TCP is selected from the pull-down list
of IP Protocol.
S-Port: Configure TCP/IP source port contained in the rule when
TCP/UDP is selected from the pull-down list of IP Protocol.
D-Port: Configure TCP/IP destination port contained in the rule when
TCP/UDP is selected from the pull-down list of IP Protocol.
DSCP: Enter the DSCP information contained in the rule.
IP ToS: Enter the IP-ToS contained in the rule.
IP Pre: Enter the IP Precedence contained in the rule.
