4. The R&D department and marketing department cannot communicate with each other.

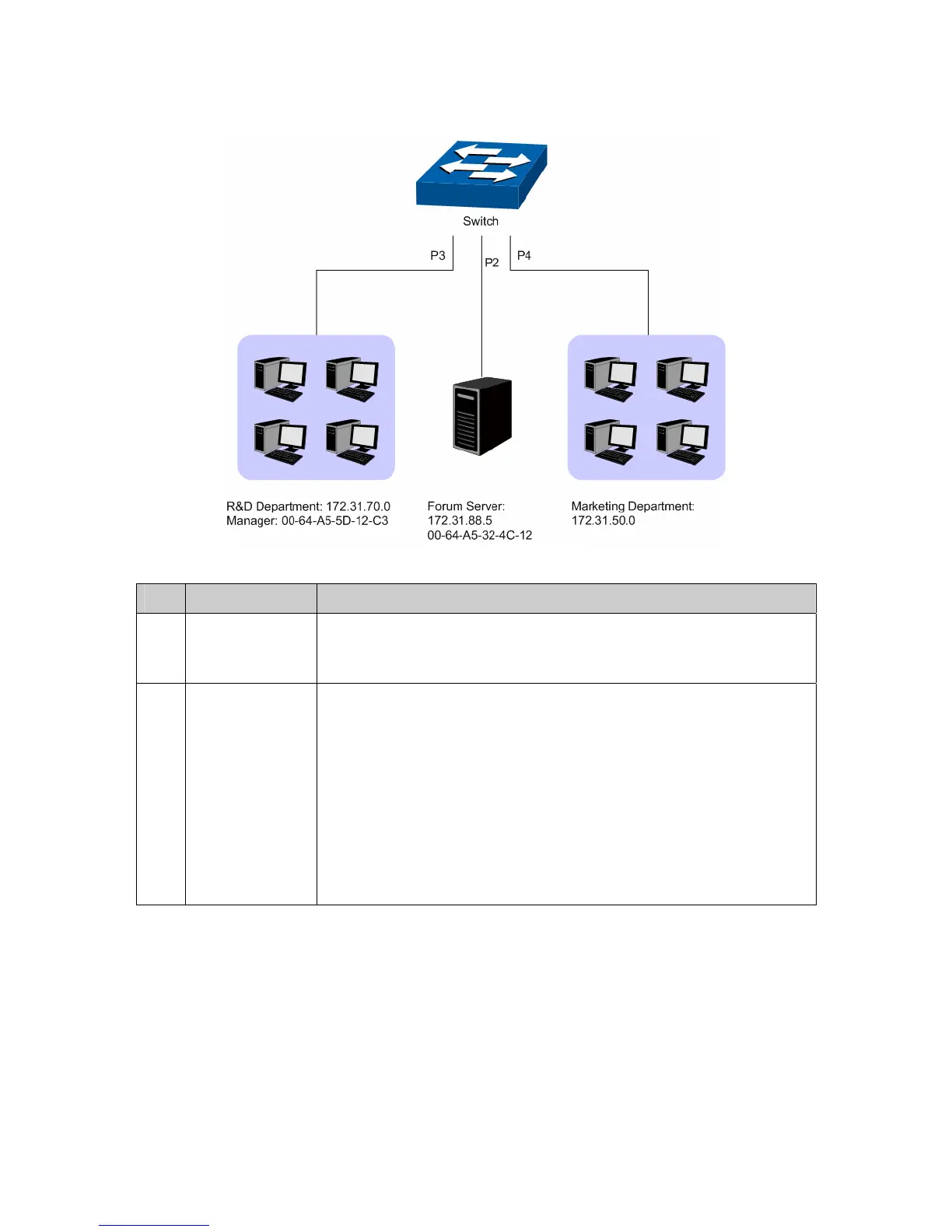

¾ Network Diagram
¾ Configuration Procedure
Step Operation Description
1 Configure
Time-range
On ACL→Time-Range page, create a time-range named work_time.
Select Week mode and configure the week time from Monday to Friday.
Add a time-slice 08:00~18:00.
2 Configure for
requirement 1
On ACL→ACL Config→ACL Create page, create ACL 11.
On ACL→ACL Config→MAC ACL page, select ACL 11, create Rule 1,
configure the operation as Permit, configure the S-MAC as
00-45-A5-5D-12-C3 and mask as FF-FF-FF-FF-FF-FF, and configure
the time-range as No Limit.
On ACL→Policy Config→Policy Create page, create a policy named
manager.
On ACL→Policy Config→Action Create page, add ACL 11 to Policy
manager.
On ACL→Policy Binding→Port Binding page, select Policy manager
to bind to port 3.
