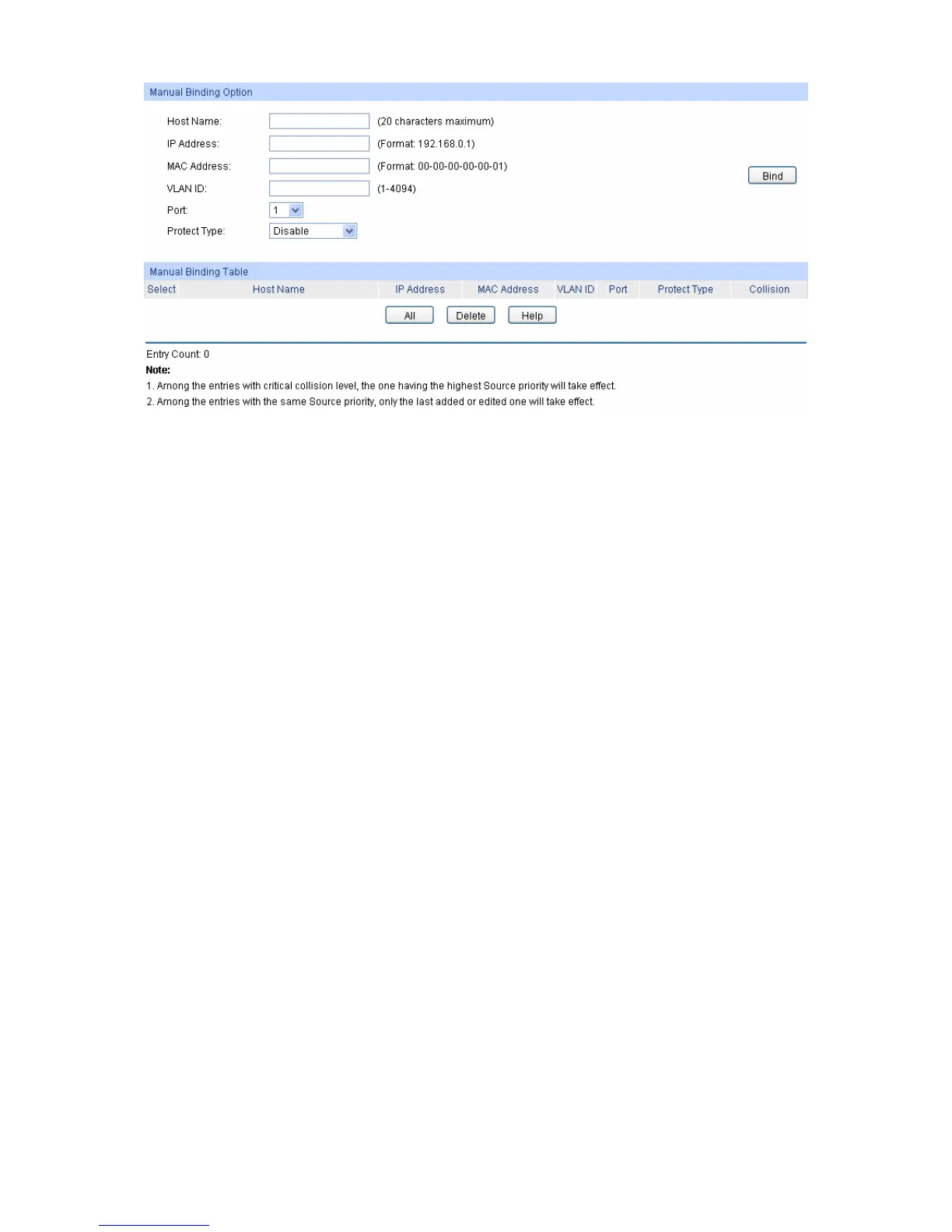

Figure 12-2 Manual Binding
The following entries are displayed on this screen:
¾ Manual Binding Option
Host Name: Enter the Host Name.
IP Address: Enter the IP Address of the Host.
MAC Address: Enter the MAC Address of the Host.
VLAN ID: Enter the VLAN ID.
Port: Select the number of port connected to the Host.
Protect Type: Select the Protect Type for the entry.
¾ Manual Binding Table
Select: Select the desired entry to be deleted. It is multi-optional.
Host Name: Displays the Host Name here.
IP Address: Displays the IP Address of the Host.
MAC Address: Displays the MAC Address of the Host.
VLAN ID: Displays the VLAN ID here.
Port: Displays the number of port connected to the Host.
Protect Type: Displays the Protect Type of the entry.
Collision: Displays the Collision status of the entry.
z Warning: Indicates that the collision may be caused by
the MSTP function.
z Critical: Indicates that the entry has a collision with the
other entries.
153
