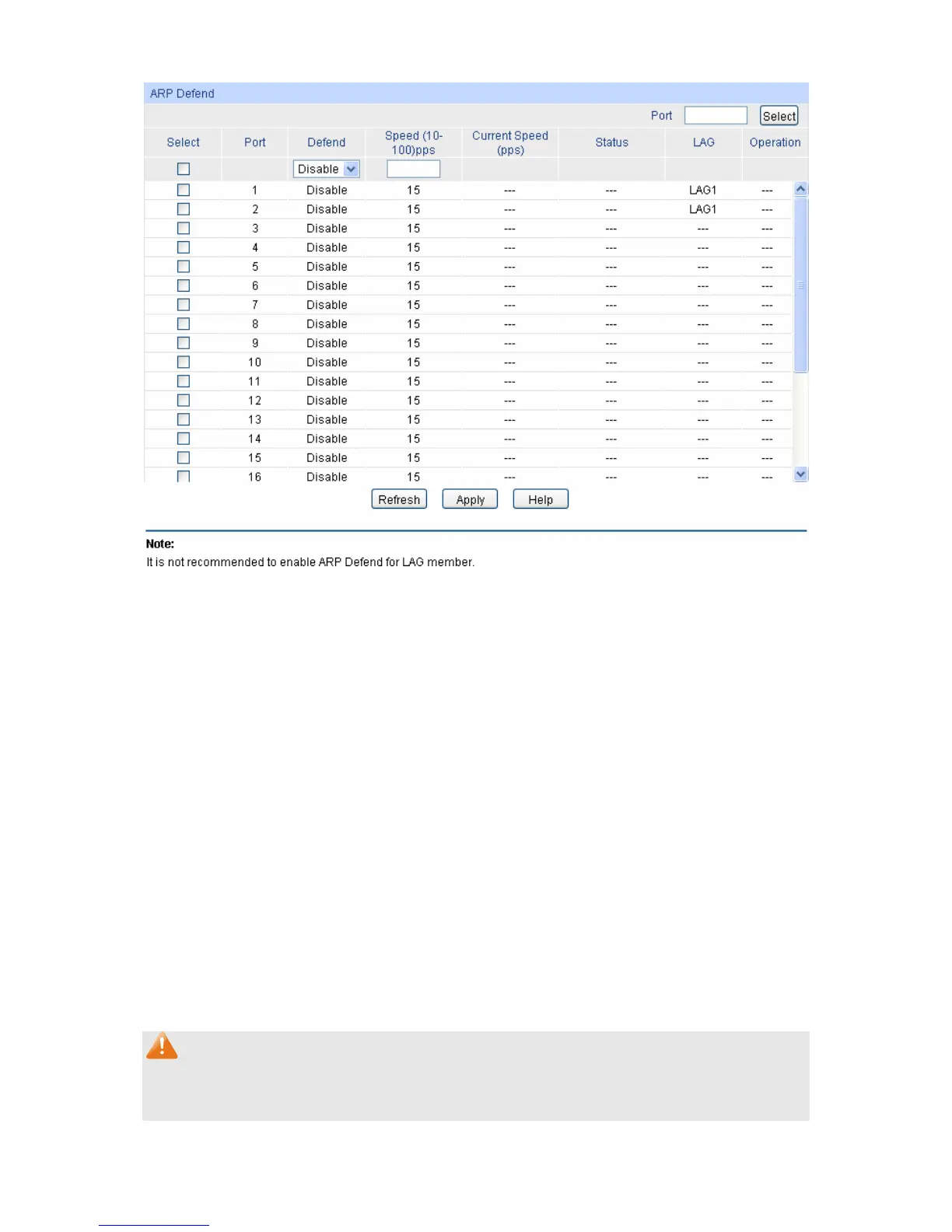

Figure 12-14 ARP Defend
The following entries are displayed on this screen:
¾ ARP Defend
Port Select: Click the Select button to quick-select the corresponding port
based on the port number you entered.
Select: Select your desired port for configuration. It is multi-optional.
Port: Displays the port number.
Defend: Select Enable/Disable the ARP Defend feature for the port.
Speed: Enter a value to specify the maximum amount of the received
ARP packets per second.
Current Speed: Displays the current speed of the received ARP packets.
Status: Displays the status of the ARP attack.
LAG: Displays the LAG to which the port belongs to.
Operation: Click the Recover button to restore the port to the normal
status. The ARP Defend for this port will be re-enabled.
Note:
1. It’s not recommended to enable the ARP Defend feature for the LAG member port.
2. ARP Detect and ARP Defend cannot be enabled at the same time.
167
