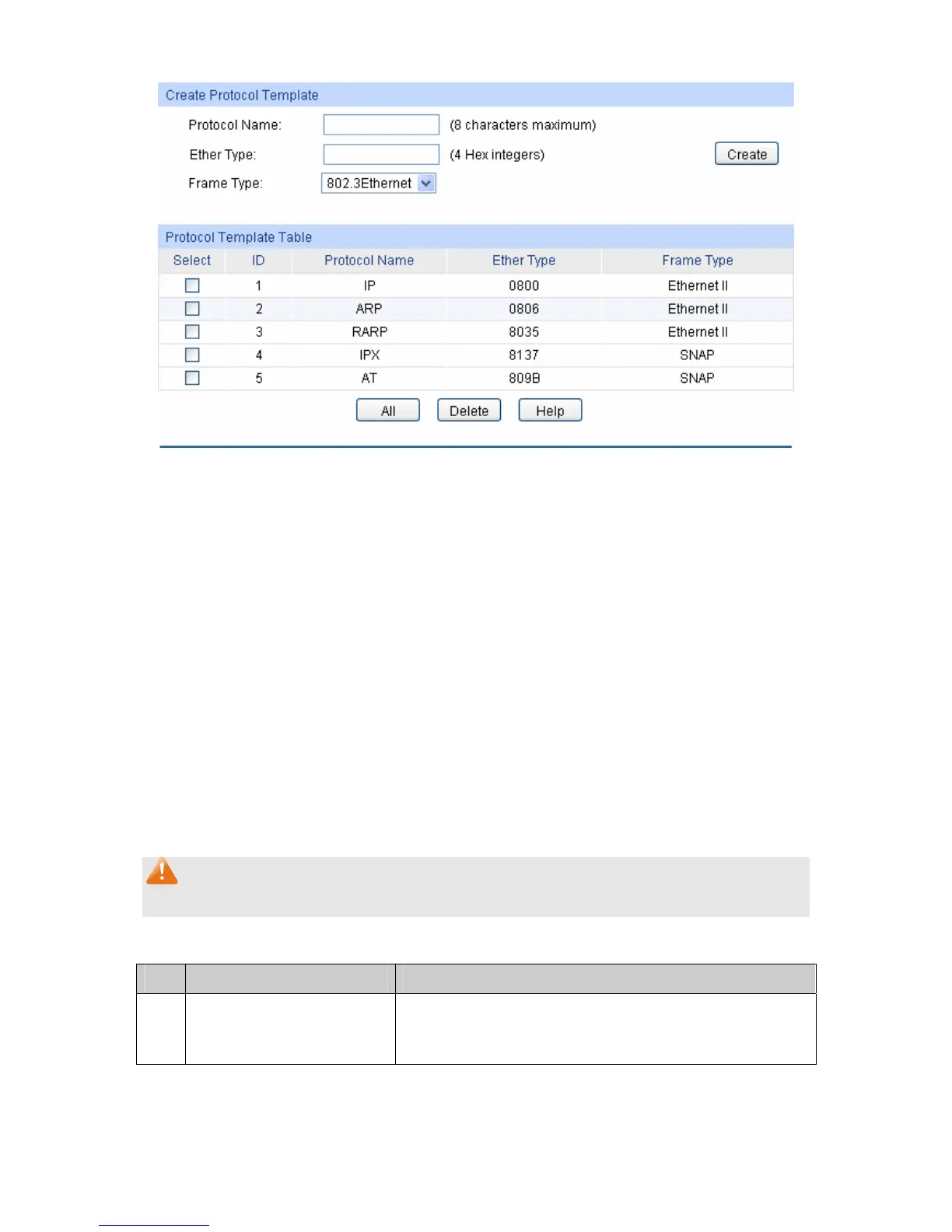

Figure 6-10 Create and View Protocol Template
The following entries are displayed on this screen:
¾ Create Protocol Template
Protocol Name: Give a name for the Protocol Template.
Ether Type: Enter the Ethernet protocol type field in the protocol template.
Frame Type: Select a Frame Type for the Protocol Template.
¾ Protocol Template Table
Select: Select the desired entry. It is multi-optional.
ID Displays the index of the protocol template.
Protocol Name: Displays the name of the protocol template.
Ether Type: Displays the Ethernet protocol type field in the protocol template.
Frame Type Displays the Frame type field for the protocol template.
Note:
The Protocol Template bound to VLAN cannot be deleted.
Configuration Procedure:
Step Operation Description
1 Set the link type for port. Required. On the VLAN→802.1Q VLAN→Port Config
page, set the link type for the port based on its connected
device.
67
