z Notebook A and Notebook B, special for meeting room, are of two different departments;
z The two departments are in VLAN10 and VLAN20 respectively. The two notebooks can just
access the server of their own departments, that is, Server A and Server B, in the two meeting
rooms;
z The MAC address of Notebook A is 00-19-56-8A-4C-71, Notebook B’s MAC address is
00-19-56-82-3B-70.

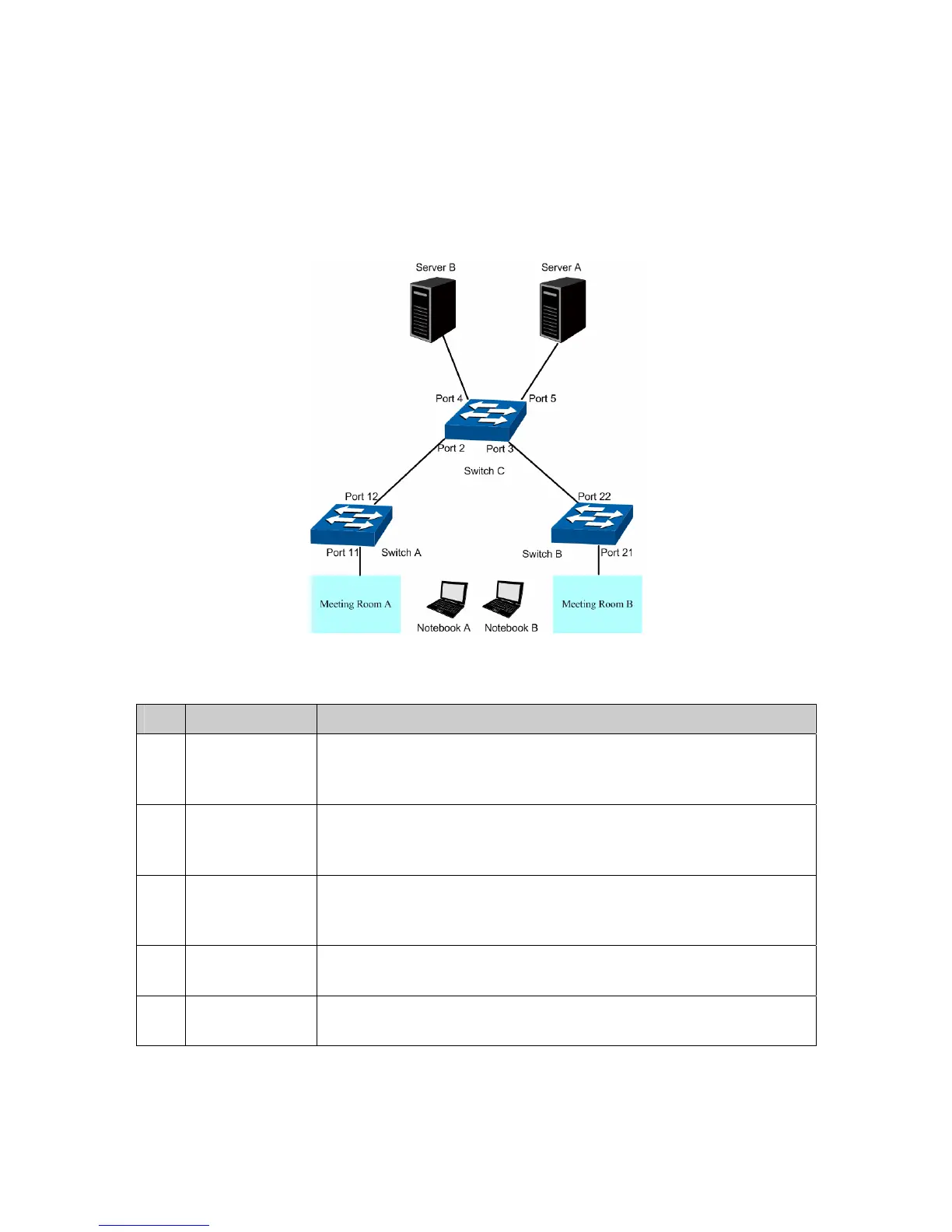

¾ Network Diagram
¾ Configuration Procedure
z Configure Switch A
Step Operation Description
1 Configure the
Link Type of the
ports
Required. On VLAN→802.1Q VLAN→Port Config page, configure the
link type of Port 11 and Port 12 as GENERAL and TRUNK respectively.
2 Create VLAN10 Required. On VLAN→802.1Q VLAN→VLAN Config page, create a
VLAN with its VLANID as 10, owning Port 11 and Port 12, and configure
the egress rule of Port 11 as Untag.
3 Create VLAN20 Required. On VLAN→802.1Q VLAN→VLAN Config page, create a
VLAN with its VLANID as 20, owning Port 11 and Port 12, and configure
the egress rule of Port 11 as Untag.
4 Configure MAC
VLAN 10
On VLAN→MAC VLAN page, create MAC VLAN10 with the MAC
address as 00-19-56-8A-4C-71.
5 Configure MAC
VLAN 20
On VLAN→MAC VLAN page, create MAC VLAN10 with the MAC
address as 00-19-56-82-3B-70.
70
