NC220
Day/Night Cloud Camera, 300Mbps Wi-Fi
Chapter 3 Managing the Camera
The cameras built-in web management page is designed to allow you to easily access and
configure your camera.

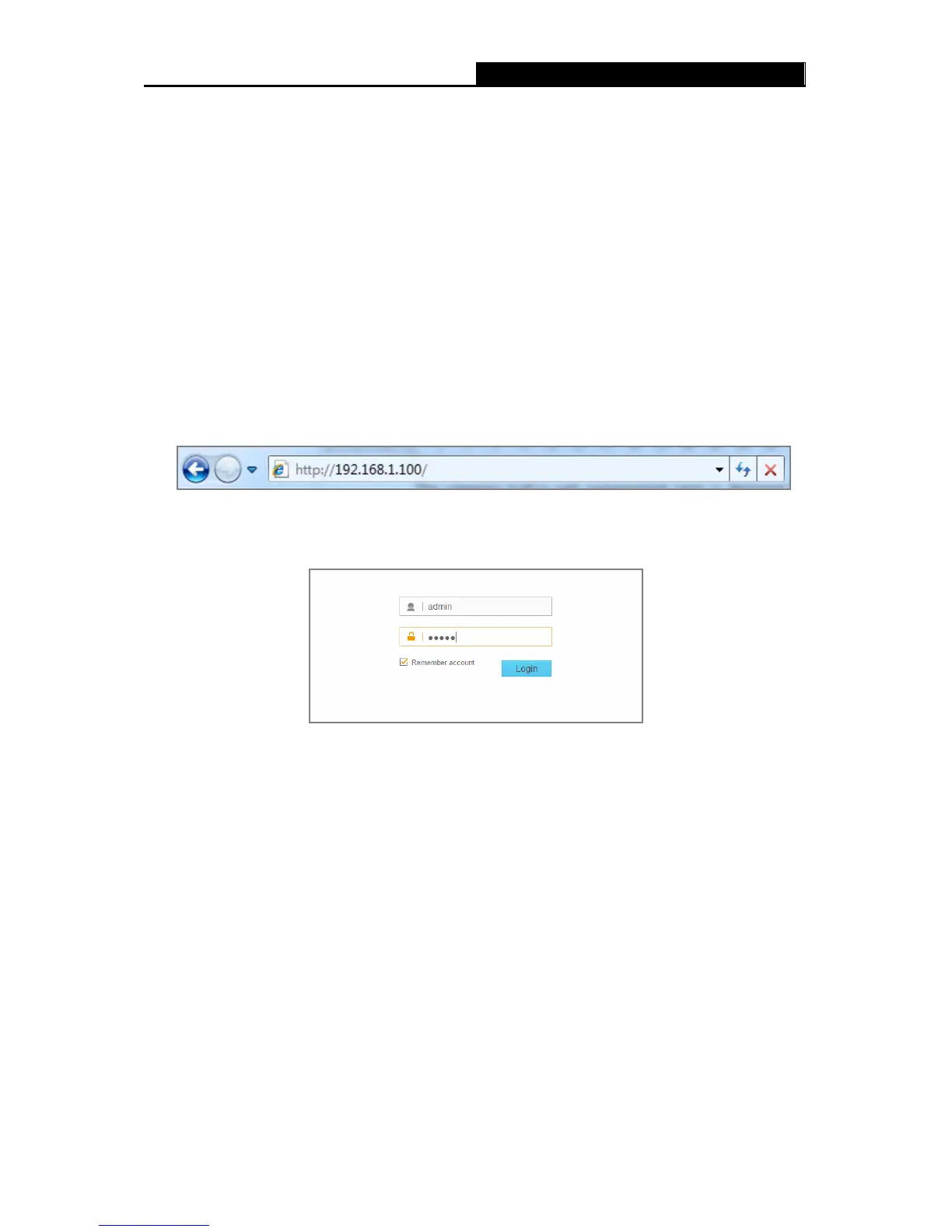

3.1 Login
1. Find the management IP address of the camera via one of the following methods:
Run the Setup Wizard. The IP address is displayed on the Select a camera screen.
Find the IP address on the DHCP setting page of the front device such as a router.
2. Open a Web browser, type in the management IP address in the address field, and press
Enter.
3. Enter the default username and password (admin/admin). Click Login to start the main
menu.
Note:
For the administrator, the default password is admin. We recommend that you change it in the
Account menu. (Go toSystem Account”)
If you log in to the camera as an administrator, you can perform all the settings provided by the
camera.
If you log in to the camera as a common user, you can only view the Live View. After logging as
administrator, you can add up to five user accounts in the Account menu. (Go to System
Account”)
7

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the TP-Link NC220 and is the answer not in the manual?

TP-Link NC220 Specifications

General IconGeneral
TypeIP security camera
PTZ control-
Antenna typeInternal
CertificationCE, FCC
Placement supportedIndoor
Connectivity technologyWired & Wireless
Form factorCube
Mounting typeDesk/Wall
Product colorWhite
LED indicatorsYes
Full HDNo
Maximum resolution640 x 480 pixels
Video formats supportedH.264
Supported graphics resolutions320 x 240
Minimum illumination0.5 lx
Sensor typeCMOS
Optical sensor size1/4 \
Effective sensor resolution0.3 pixels
Digital zoom4 x
Optical zoom- x
Focal length range2.8 - 3.85 mm
Security algorithmsWEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology10/100Base-T(X)
Wi-Fi data rate (max)300 Mbit/s
Supported network protocolsBonjour, TCP/IP, DHCP, PPPoE, ARP, ICMP, FTP, SMTP, Samba, NFS, DNS, NTP, UPnP, HTTP, HTTPS, TCP, UDP
InterfaceRJ-45
Ethernet LAN (RJ-45) ports1
Audio system1-way
Audio formats supportedAAC
AC input voltage9 V
Power consumption (typical)5.4 W
Sustainability certificatesRoHS
Storage temperature (T-T)-40 - 70 °C
Operating temperature (T-T)0 - 40 °C
Storage relative humidity (H-H)5 - 90 %
Operating relative humidity (H-H)10 - 90 %
Mac operating systems supportedMac OS X 10.7 Lion
Weight and Dimensions IconWeight and Dimensions
Depth24 mm
Width61 mm
Height96 mm
