TP-Link NC220 User Manual

NC220
Day/Night Cloud Camera, 300Mbps Wi-Fi
 Motion Detection: To enable or disable the motion detection function.
 Sensitivity: Specify the level of difference between two sequential images that would indicate
motion. Select one of the three levels of sensitivity from the drop-down list: High, Medium, and
Low.
Drag your mouse to draw the areas you want to monitor. Click Save to save and enable the
settings.

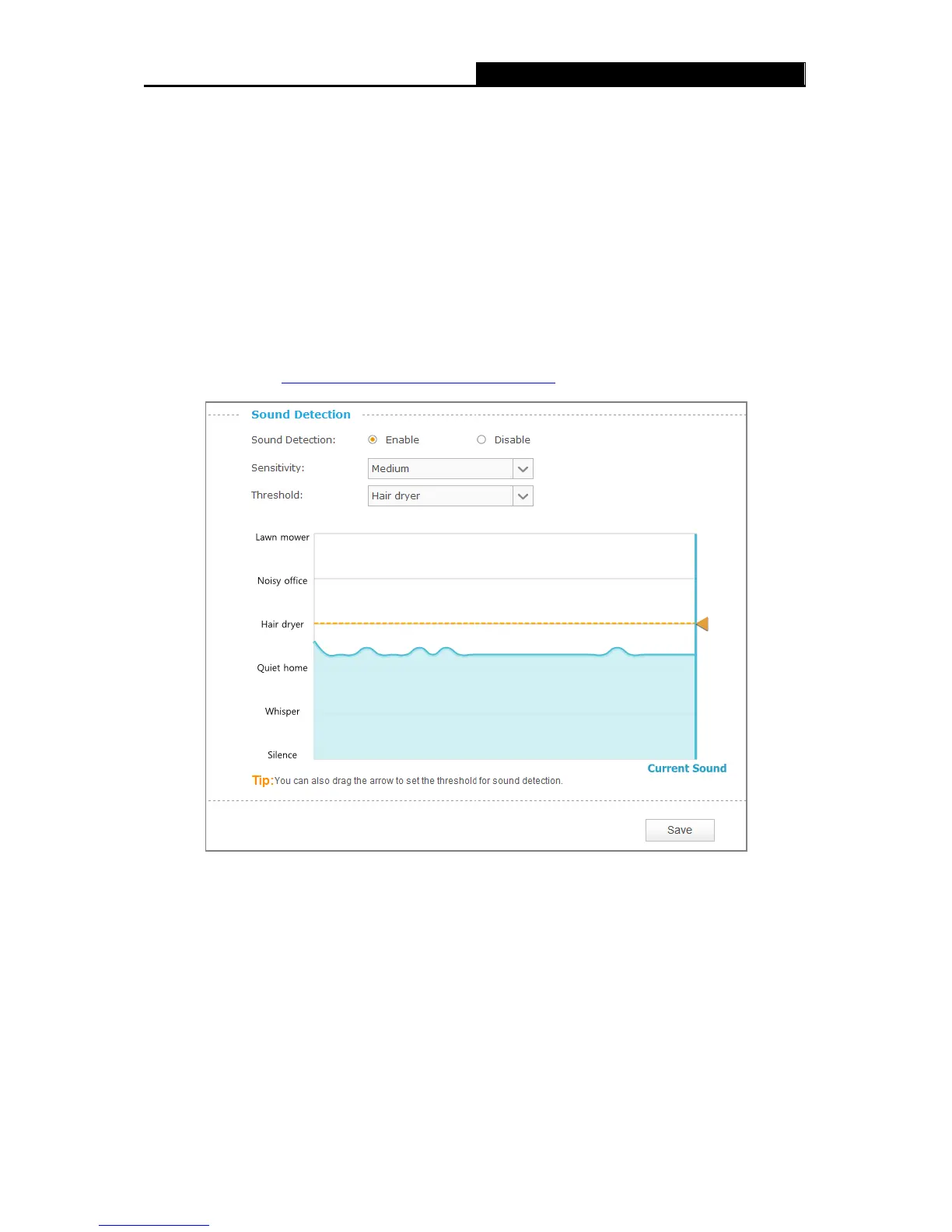

3.4.9 Advanced → Sound Detection
Sound detection allows your camera to detect a loud sound, which can be used to trigger
snapshots. Refer to 3.4.10 Advanced → Notification Delivery
for more details.
 Sound Detection: To enable or disable the sound detection function.
 Sensitivity: Specify the level of difference between current sound and the threshold you set.
Select one of the three levels of sensitivity from the drop-down list: High, Medium, and Low.
 Threshold: Select the threshold of sound level. Snapshots will be triggered when current
sound exceeds this threshold. You can also drag the arrow in the diagram to set the threshold.
Click Save to save and enable the settings.
28

TP-Link NC220 Specifications

General

Type	IP security camera
PTZ control	-
Antenna type	Internal
Certification	CE, FCC
Placement supported	Indoor
Connectivity technology	Wired & Wireless
Form factor	Cube
Mounting type	Desk/Wall
Product color	White
LED indicators	Yes
Full HD	No
Maximum resolution	640 x 480 pixels
Video formats supported	H.264
Supported graphics resolutions	320 x 240
Minimum illumination	0.5 lx
Sensor type	CMOS
Optical sensor size	1/4 \
Effective sensor resolution	0.3 pixels
Digital zoom	4 x
Optical zoom	- x
Focal length range	2.8 - 3.85 mm
Security algorithms	WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Wi-Fi data rate (max)	300 Mbit/s
Supported network protocols	Bonjour, TCP/IP, DHCP, PPPoE, ARP, ICMP, FTP, SMTP, Samba, NFS, DNS, NTP, UPnP, HTTP, HTTPS, TCP, UDP
Interface	RJ-45
Ethernet LAN (RJ-45) ports	1
Audio system	1-way
Audio formats supported	AAC
AC input voltage	9 V
Power consumption (typical)	5.4 W
Sustainability certificates	RoHS
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Mac operating systems supported	Mac OS X 10.7 Lion

Weight and Dimensions

Depth	24 mm
Width	61 mm
Height	96 mm
