TP-Link TC-W7960

TC-W7960
300Mbps Wireless N DOCSIS 3.0 Cable Modem Router User Guide

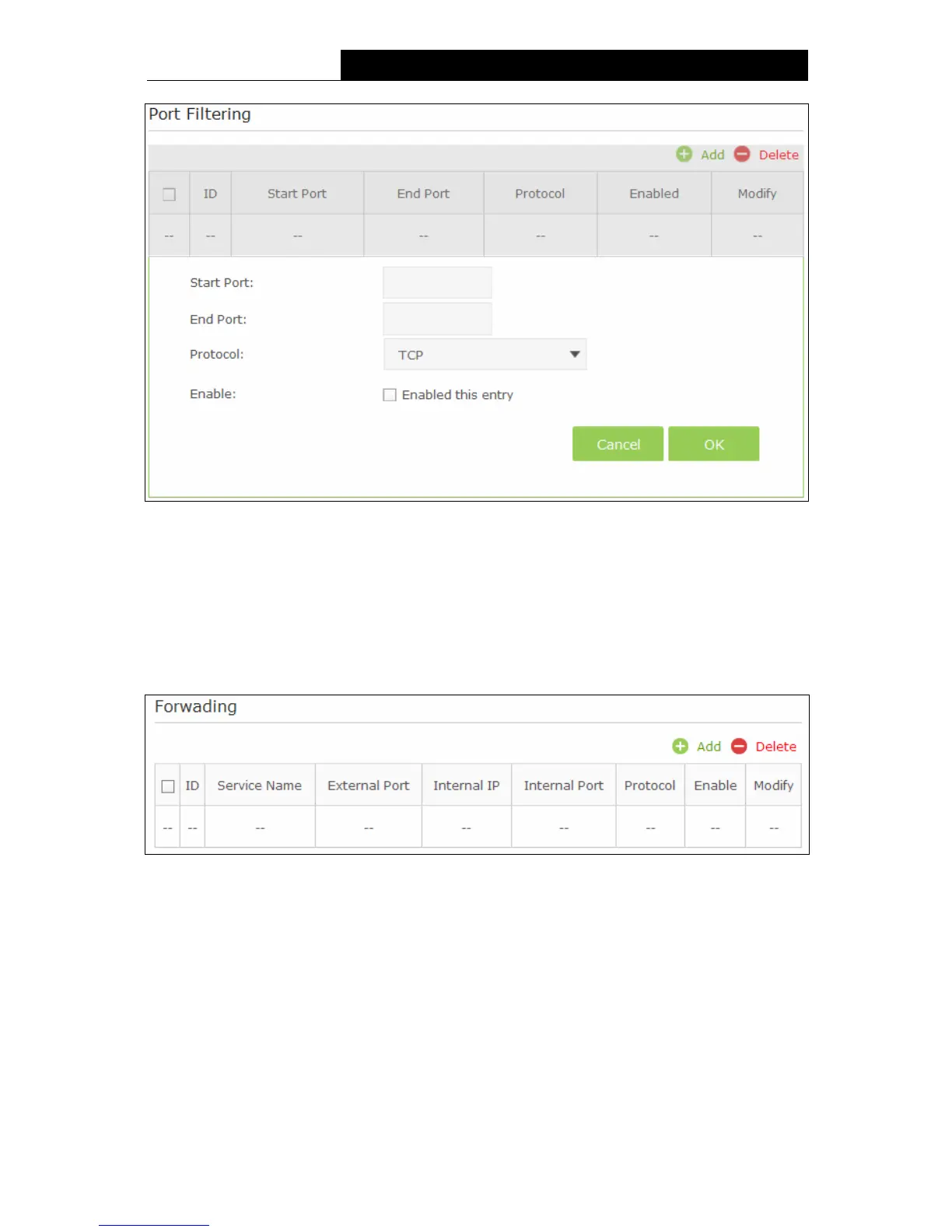

Figure 5-31
5. Click the OK button to save this entry. If you do not want to save this entry, click the Cancel
button.
5.5.4 Port Forwarding
Choose menu “Advanced  NAT Forwarding  Port Forwarding”, and then you will see the
screen as shown below.
Figure 5-32
 Service Name - The port forwarding you want to use.
 External Port - The numbers of External Service Ports. You can enter a service port (the
value between 1-65535).
 Internal IP - The IP address of the PC running the service application (which is in the same
subnet with LAN IP).
 Internal Port - The Internal Service Port number of the PC running the service application.
You can enter a service port (the value between 1-65535).
 Protocol - The protocol used for this application, either TCP, UDP, or BOTH (all protocols
supported by the modem router).
52
