TC-W7960
300Mbps Wireless N DOCSIS 3.0 Cable Modem Router User Guide

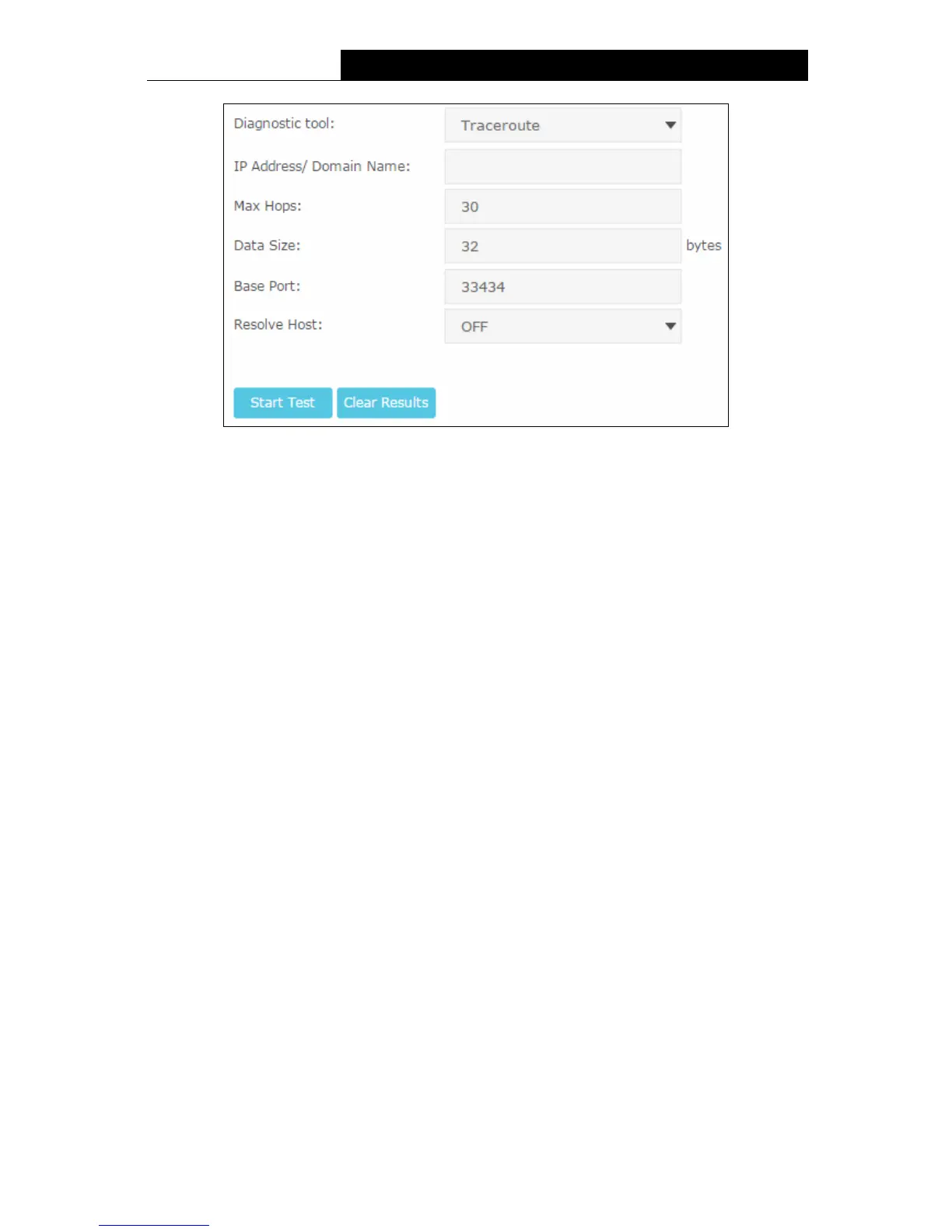

Figure 5-59
IP Address/ Domain Name – Enter the IP Address or Domain Name you want to
trace.
Max Hops – Enter the max number of hops.
Data Size – Enter the size of data you want to use.
Base Port – Enter the port number to send packets.
Resolve Host – To resolve the host name to the IP address you can select ON from
the drop-down list. The default status is OFF.
Click Start Test to check the connectivity of the Internet. The page will display the result
of diagnosis.
Click Clear Results to delete the logs.
Note:
Only one user can use the diagnostic tools at one time.
5.9.5 Time Settings
Choose menu “Advanced→System Tools→Time Settings”, you can configure the time settings
on the following screen.
74
