TD-8840T ADSL2+ Modem Router User Guide
24
4.4.1.5 IPoA
If your ISP provides an IPoA connection, select IPoA option for the WAN service type on the
screen.

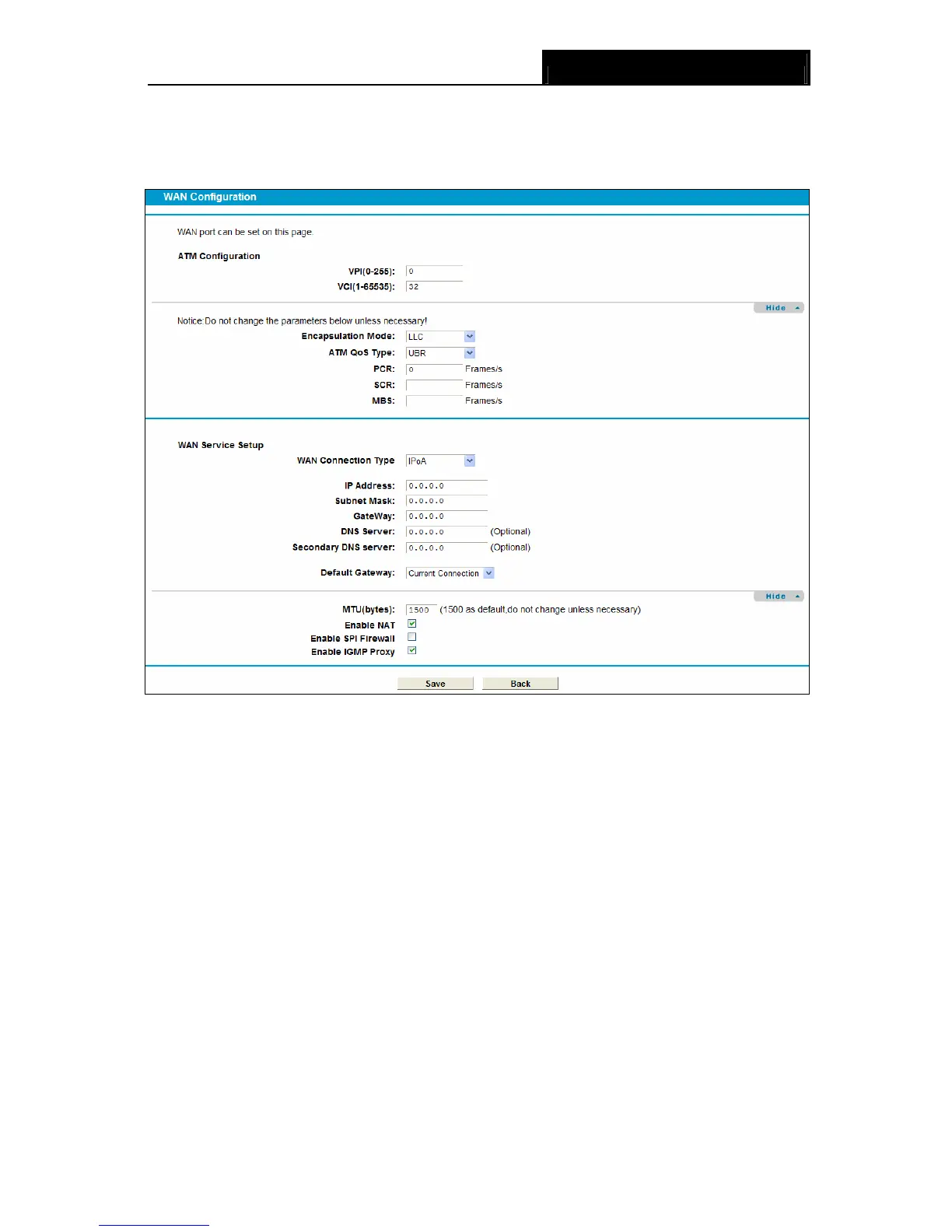

Figure 4-8
¾ IP Address/Subnet Mask: Enter the IP Address and Subnet Mask provided by ISP. If you
forget, you can ask your ISP.
¾ DNS Server/Secondary DNS Server: Type in your preferred DNS server.
¾ Default Gateway: select a WAN Interface from the drop-down list as the IPv4 default
gateway.
4.4.1.6 Bridge
If you select this type of connection, the modem can be configured to act as a bridging device
between your LAN and your ISP. Bridges are devices that enable two or more networks to
communicate as if they are two segments of the same physical LAN.
