TD-8840T ADSL2+ Modem Router User Guide
33

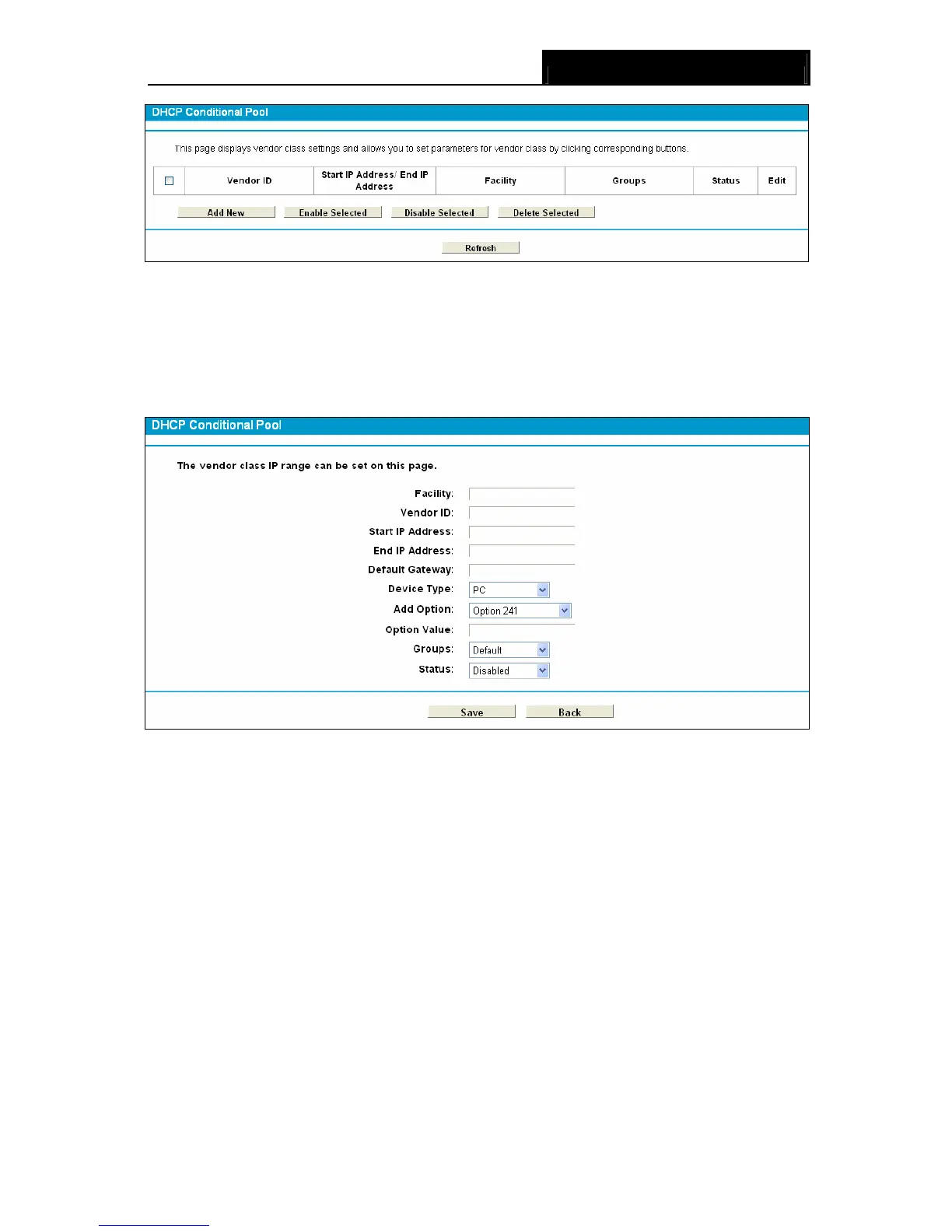

Figure 4-20
To add a vendor class:
1. Click the Add New button. Then Figure 4-21 will pop up.
2. Enter parameters for the vendor class.
Click the Save button.
Figure 4-21
To modify or delete an existing entry:
4. Click the Edit in the entry you want to modify. If you want to delete the entry, click the Delete.
5. Modify the information.
6. Click the Save button.
Click the Enable/Disable Selected button to make selected entries enabled/disabled.
Click the Delete Selected button to selected entries.
4.6 Route Settings
Choose “Route Settings”, it includes three menus: Default Gateway, Static Route and RIP
Settings. The detailed descriptions are provided below.
