TD-W8950ND 150Mbps Wireless N ADSL2+ Modem Router User Guide

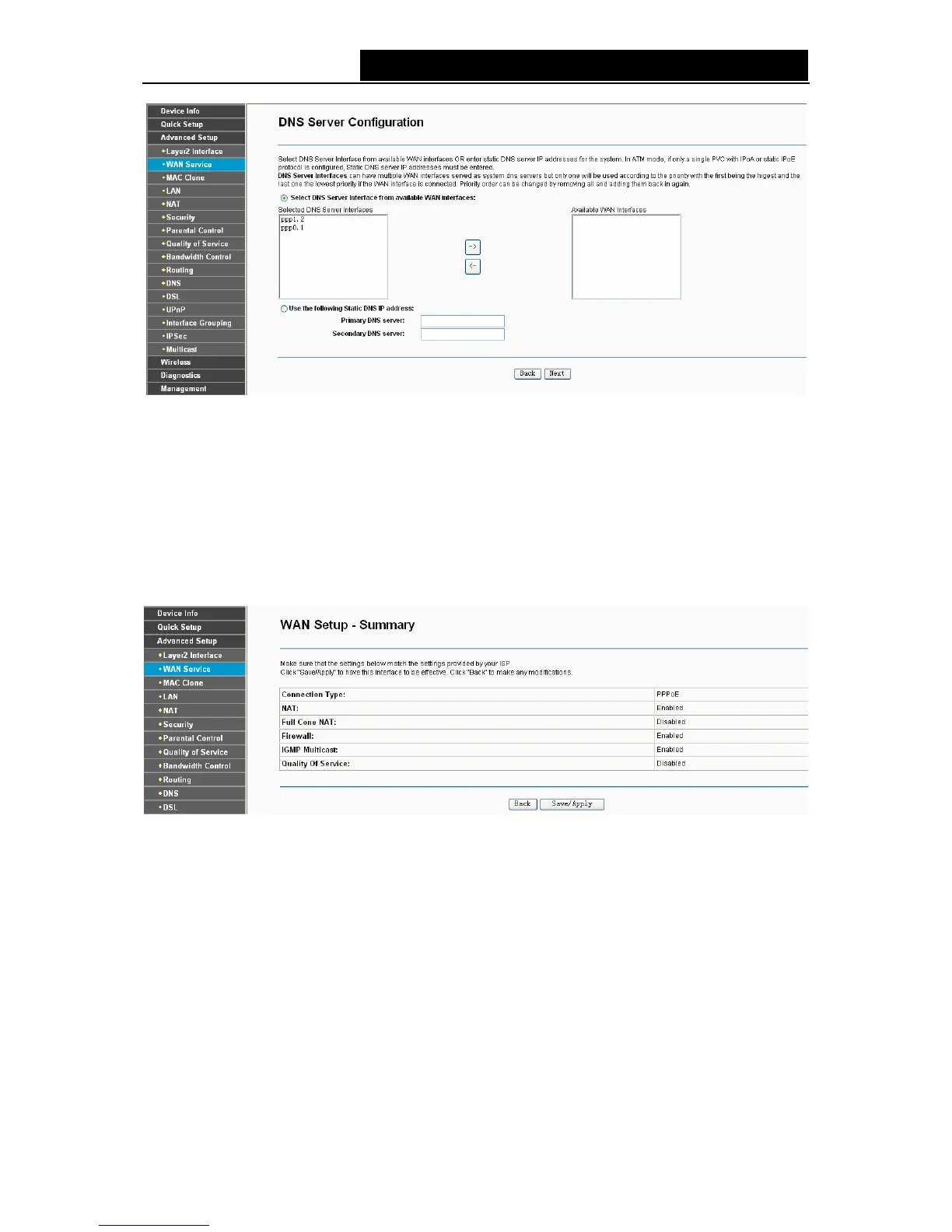

Figure 4-12
¾ Select DNS Server Interface from available WAN Interfaces: You can select this option to
automatically get DNS server information from the selected WAN interface.
¾ Use the following Static DNS IP Address: You can select this option to manually enter the
primary and /or optional secondary DNS server IP addresses provided by your ISP.
)
Note:
If only single PVC with IPoA is configured, you must enter static DNS server IP addresses.
7. On the next screen you will see the detailed settings you’ve made. Please click the
Save/Apply button to save these settings.
Figure 4-13
8. On the next screen you will see the WAN Port Information Table with the new configuration.
25
