TD-W8950ND 150Mbps Wireless N ADSL2+ Modem Router User Guide
¾ Precedence: Specify precedence for this QoS queue entry.
¾ DSL Latency: Select latency path for the type of data transmission, only Path0 is available for
this modem router.
After you specify the condition, click Save/Apply to save the entry and then you will see you
settings as shown in Figure 4-42.
)
Note:
1) Lower integer values for precedence imply higher priority for this queue relative to others.
2) The queue entry configured here will be used by the classifier to place ingress packets
appropriately.
4.4.8.2 QoS Classification
This section will guide you to create a traffic class rule to classify the upstream traffic, assign
queue which defines the precedence and the interface and optionally overwrite the IP header
DSCP byte.
A rule consists of a class name and at least one condition below. All of the specified conditions in
this classification rule must be satisfied for the rule to take effect.

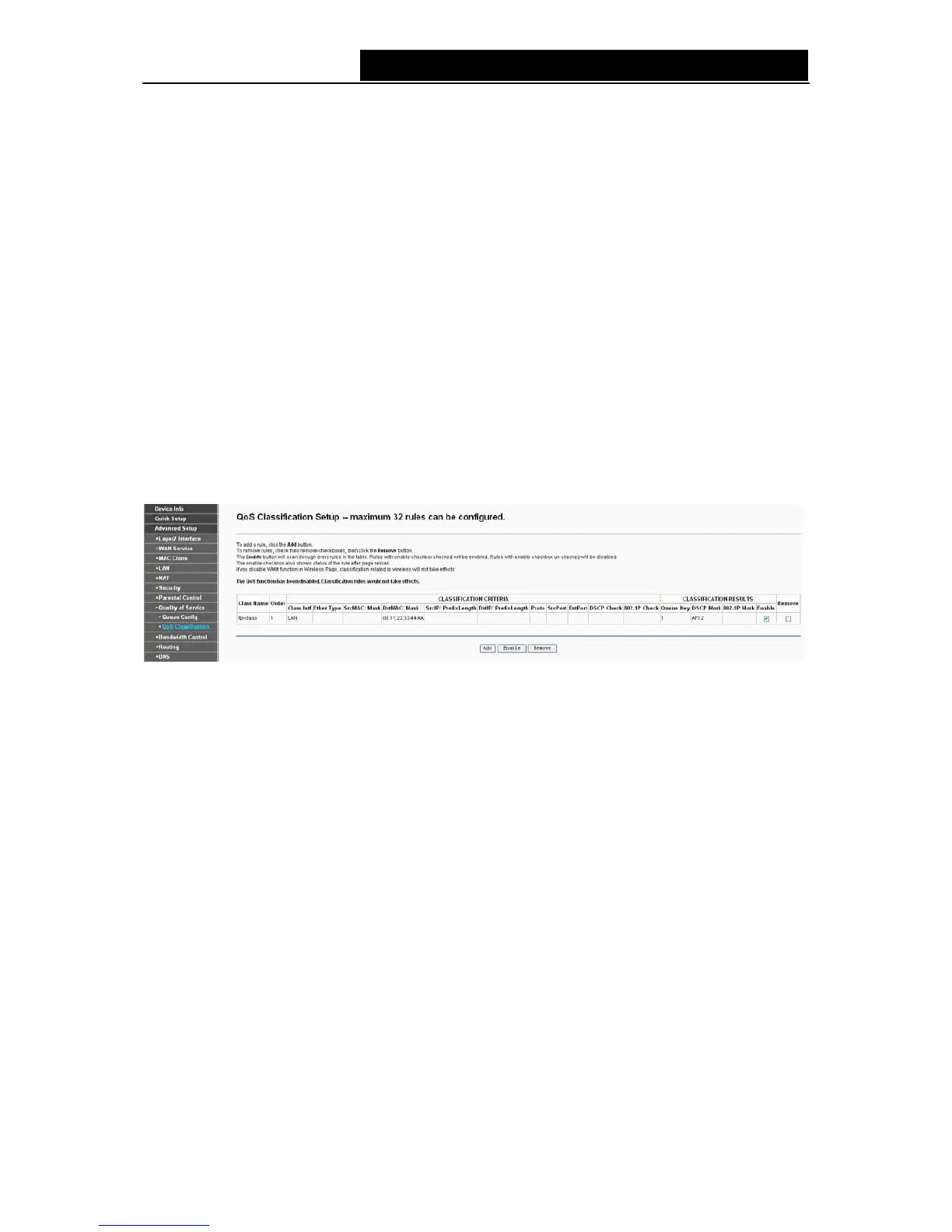

Figure 4-44
Click the Add button Figure 4-44, and you can configure the QoS on the next screen.
46
