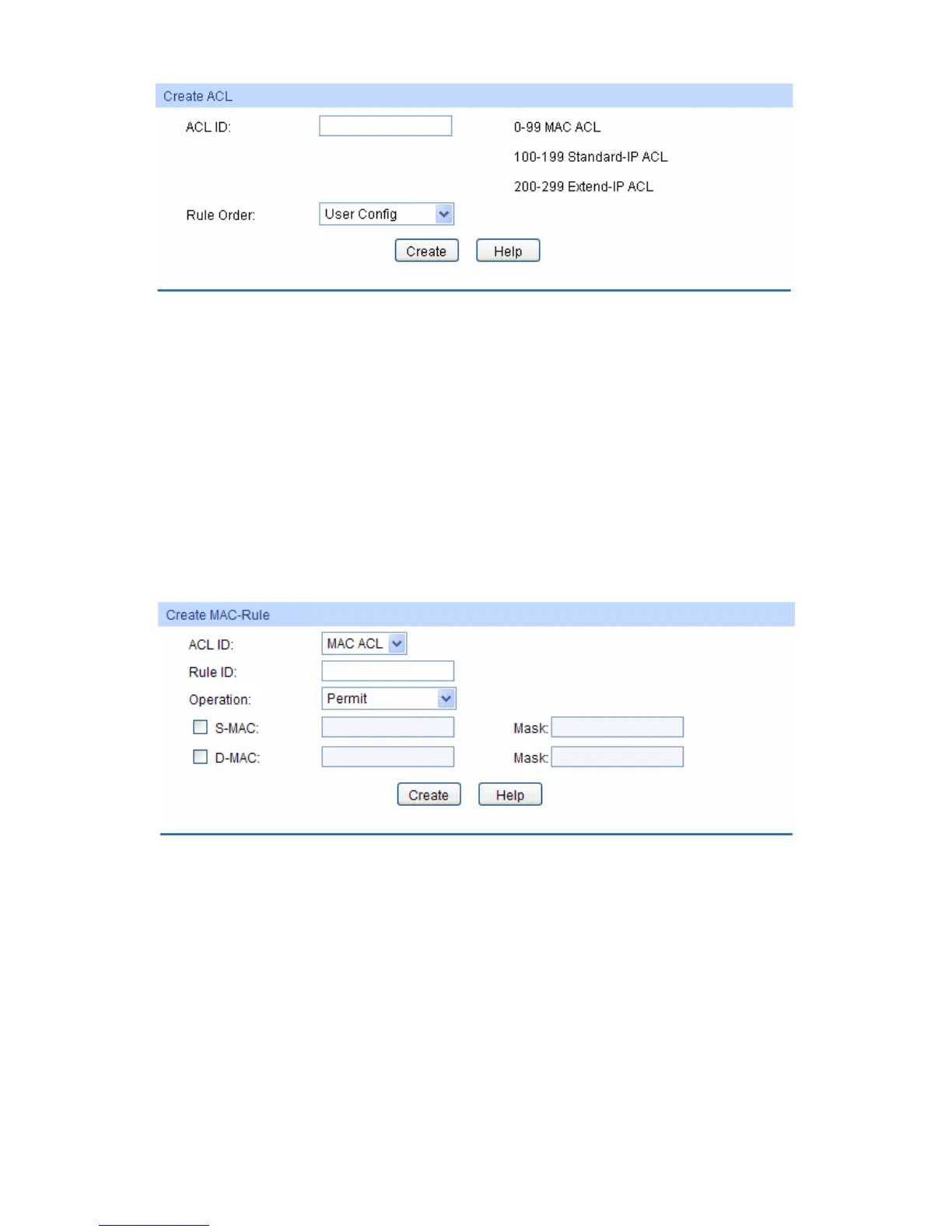

Figure 10-2 ACL Create
The following entries are displayed on this screen:
Create ACL
ACL ID: Enter ACL ID of the ACL you want to create.
Rule Order: User Config order is set to be match order in this ACL.
10.1.3 MAC ACL
MAC ACLs analyze and process packets based on a series of match conditions, which can be the
source MAC addresses and destination MAC addresses carried in the packets.
Choose the menu ACL→ACL Config→MAC ACL to load the following page.
Figure 10-3 Create MAC Rule
The following entries are displayed on this screen:
Create MAC ACL
ACL ID: Select the desired MAC ACL for configuration.
Rule ID: Enter the rule ID.
Operation: Select the operation for the switch to process packets which match the
rules.
Permit: Forward packets.
Deny: Discard Packets.
S-MAC: Enter the source MAC address contained in the rule.
