TP-Link TL-SG2452 - Page 712

Configuring ACL ACL Configuration
User Guide 687

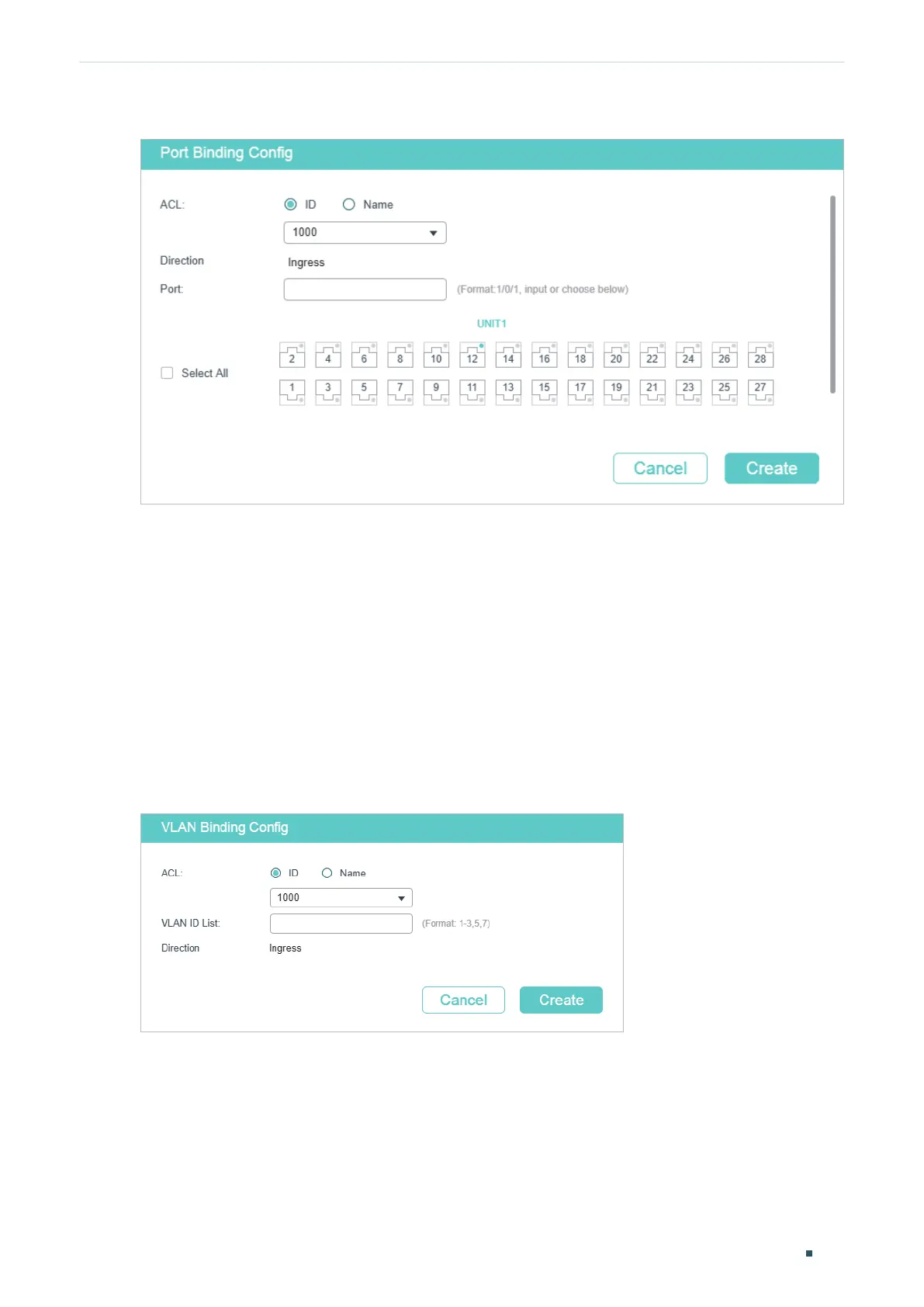

Figure 2-28 Binding the ACL to a Port
Follow these steps to bind the ACL to a Port:
1) Choose ID or Name to be used for matching the ACL. Then select an ACL from the
drop-down list.
2) Specify the port to be bound.
3) Click Create.
■ Binding the ACL to a VLAN
Choose the menu SECURITY > ACL > ACL Binding > VLAN Binding to load the following
page.
Figure 2-29 Binding the ACL to a VLAN
Follow these steps to bind the ACL to a VLAN:
1) Choose ID or Name to be used for matching the ACL. Then select an ACL from the
drop-down list.
2) Enter the ID of the VLAN to be bound.
3) Click Create.
