1.4 Panel Layout
1.4.1 The Front Panel

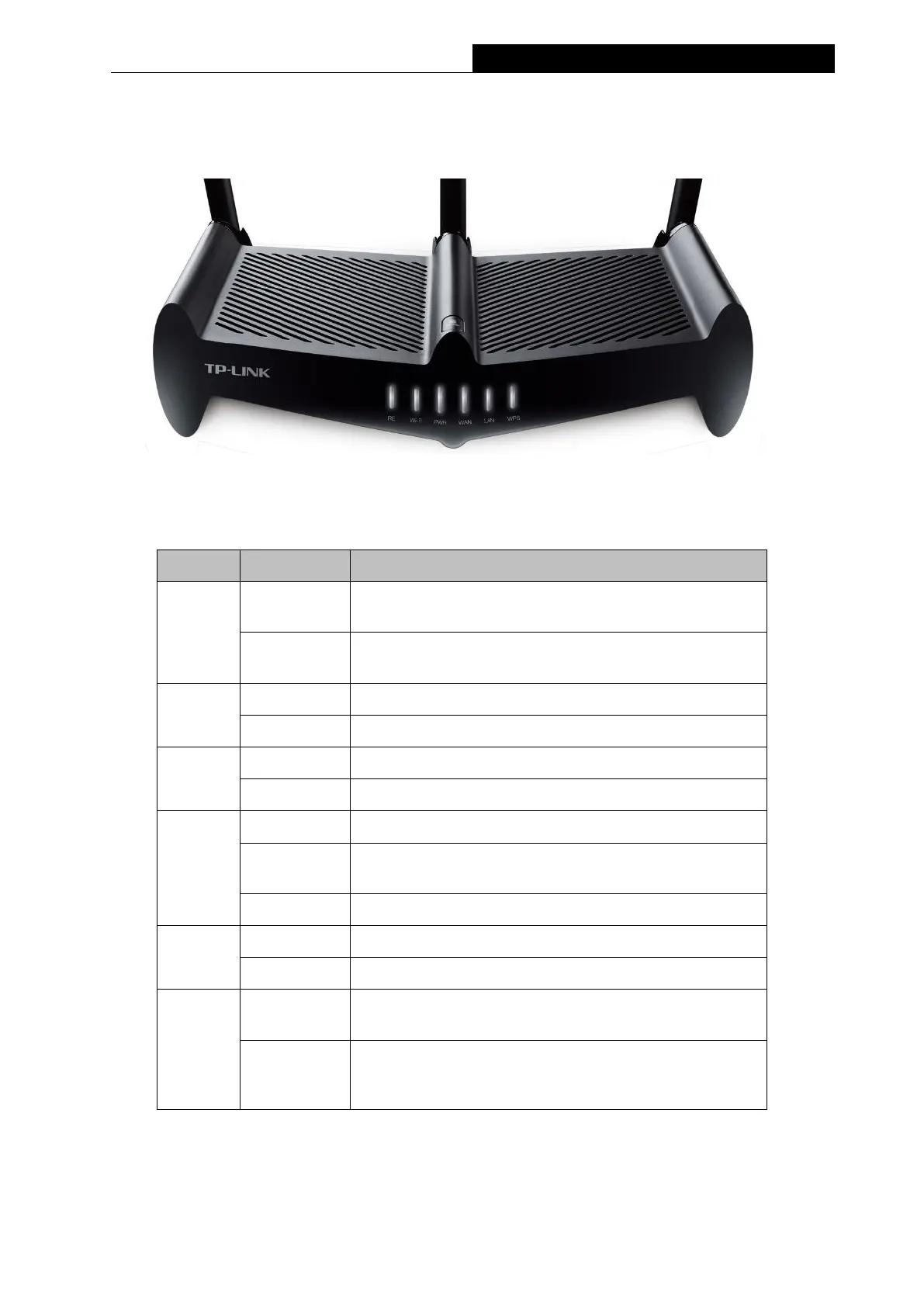

Figure 1-1 Front Panel
The router’s LEDs are located on the front panel (View from left to right).
Name
Status
Indication
RE
Blinking
The router is connecting to the host network. This
process will last in the first 2 minutes.
On
The router has been successfully connected to the host
network, and it is working in Range Extender mode.
Wi-Fi
Off
The wireless function is disabled.
On
The wireless function is enabled.
PWR
Blinking
The router is updating or initializing.
On
The router is working in a normal status.
WAN
Off
No connection.
On(Orange)
The router’s Internet port has been connected but the
Internet is unavailable.
On
The Internet is available.
LAN
On
There is a device connected to the corresponding port.
Off
No connection.
WPS
Blinking
A wireless device is connecting to the network by WPS
function. This process will last in the first 2 minutes.
On
A wireless device has been successfully added to the
network by WPS function. The WPS LED will be off
after 5 minutes.
Table 1-1 The LEDs description
