76
450Mbps High Power Wireless N Router
3.4.11.1. Static Routing List
Go to “Advanced→Advanced Routing→Static Routing List”, and then you can configure the
static route in this page. A static route is a pre-determined path that network information must
travel to reach a specific host or network.

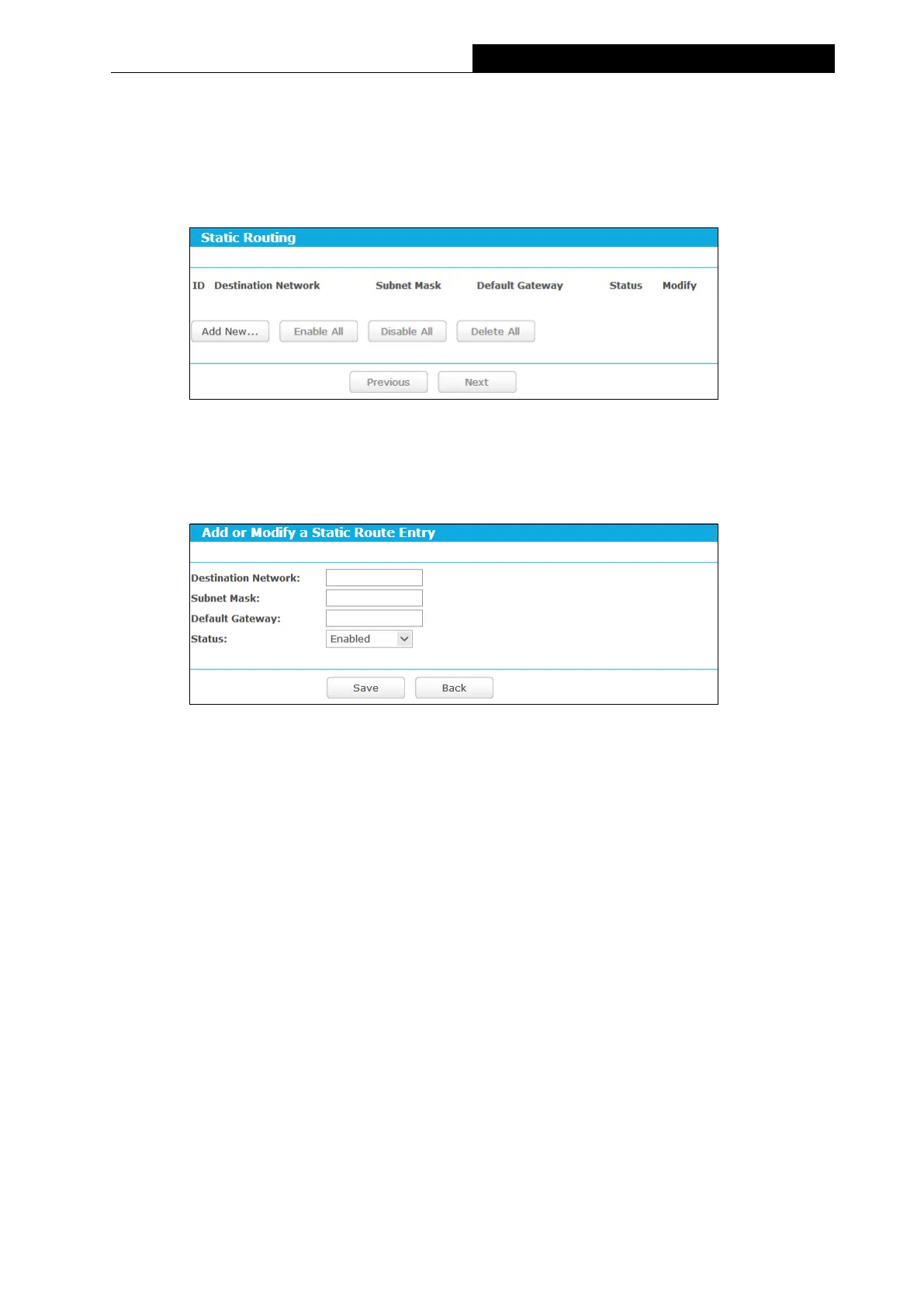

Figure 3-62 Static Routing
To add static routing entries:
1. Click Add New…, you will see the following screen.
Figure 3-63 Add or Modify a Static Route Entry
2. Enter the following data:
Destination Network - The Destination Network is the address of the network or host
that you want to assign to a static route.
Subnet Mask - The Subnet Mask determines which portion of an IP Address is the
network portion, and which portion is the host portion.
Default Gateway - This is the IP Address of the gateway device that allows for contact
between the router and the network or host.
3. Select Enabled or Disabled for this entry on the Status drop-down list.
4. Click the Save button to make the entry take effect.
Other configurations for the entries:
Click the Delete button to delete the entry.
Click the Enable All button to enable all the entries.
Click the Disable All button to disable all the entries.
