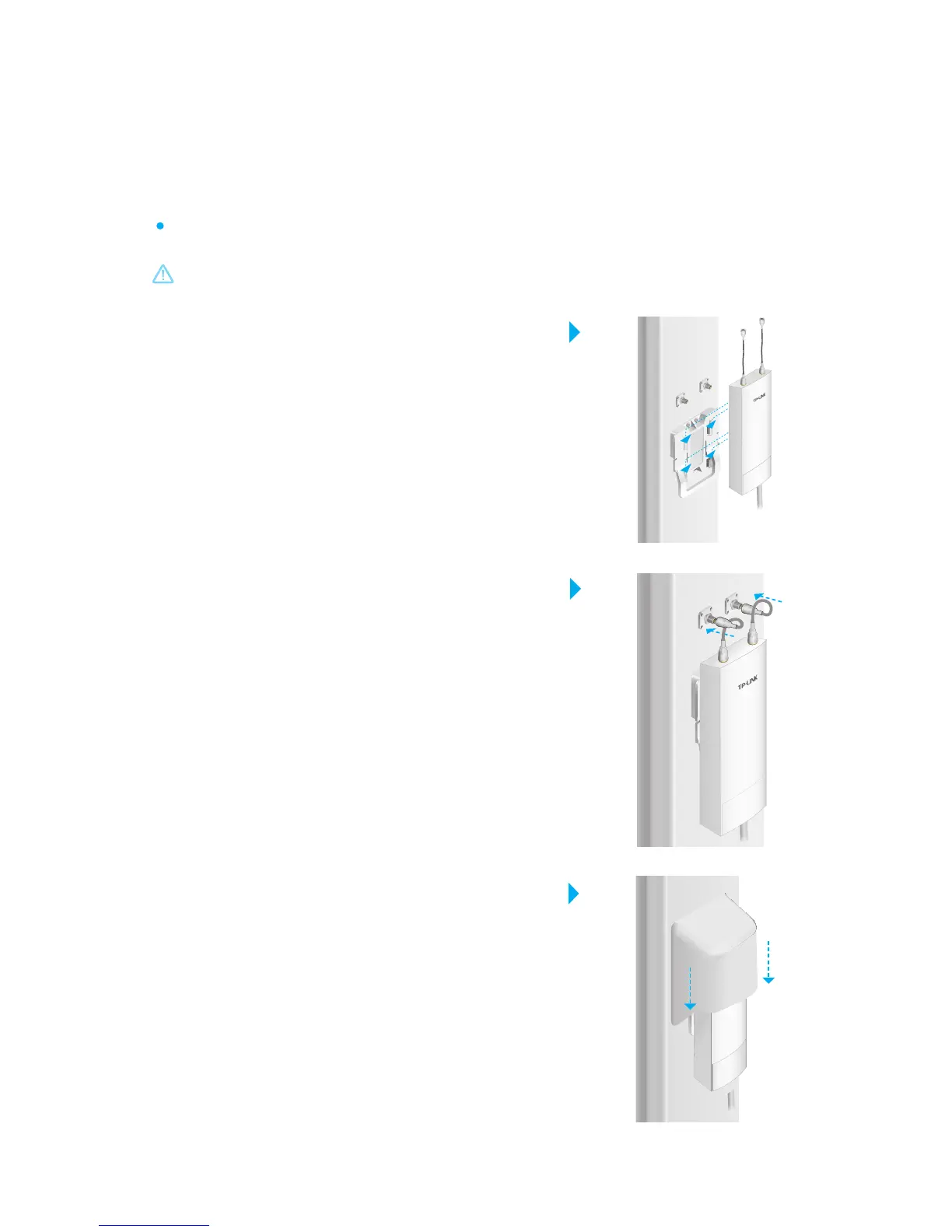

Attach the protective cap. Push and
slide the protective cap down over the
Base Station until it firmly locks into
place.
Align the mounting tabs on the back
of the Base Station with the four slots
of the mounting bracket. Push and
slide the Base Station downward
until it locks into place.
Connect the RF cables from the Base
Station to the corresponding
connectors on the antenna.
5
Sector antenna is used as a demonstration below.
1
2
3
Mount Antenna
Option1: Mounting the Base Station on an Antenna
Mount the Base Station on an antenna with a suitable mounting
bracket or on a pole for the antenna without the mounting bracket.
