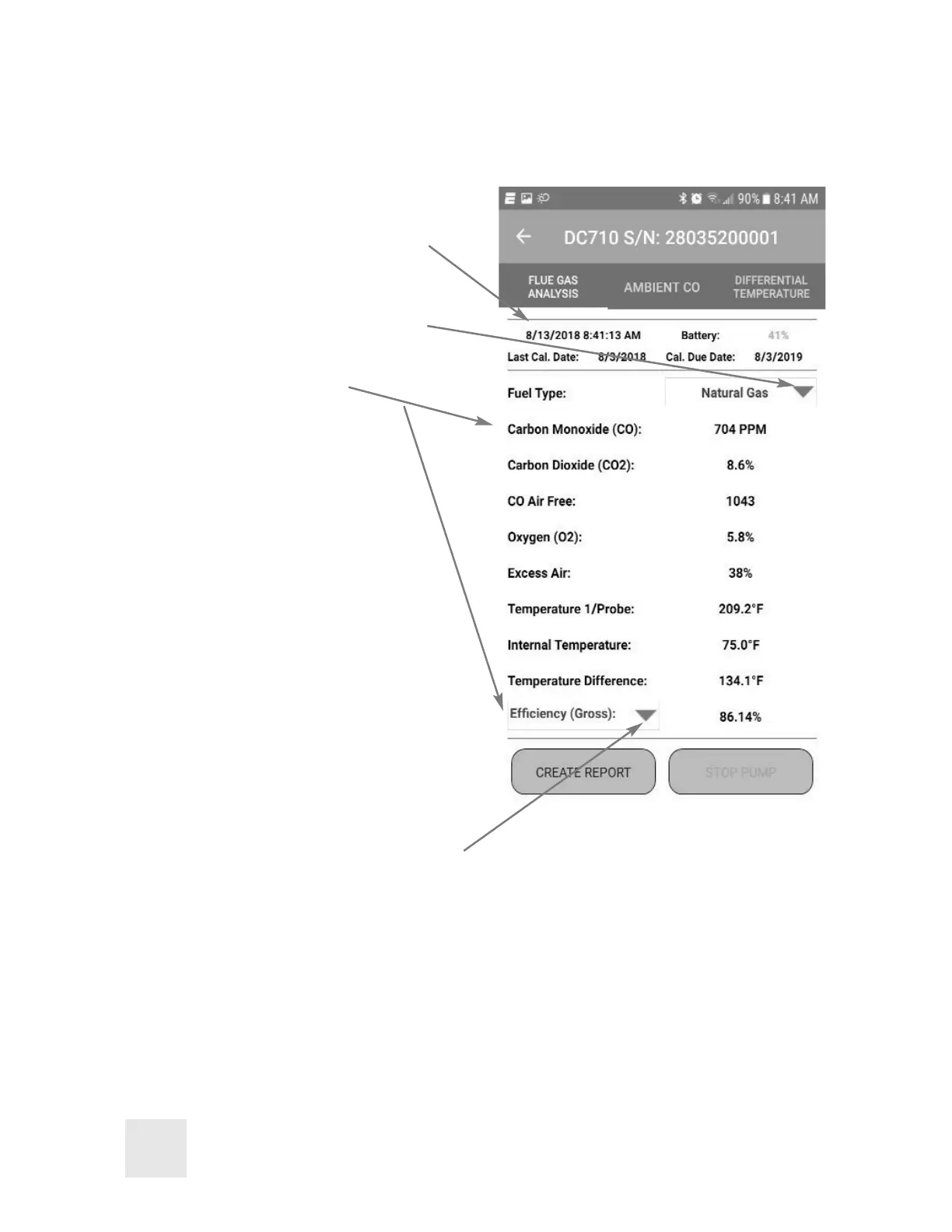

5. The combustion analysis readings will be displayed on the TPI View app.
Allow the readings to stabilize.
The date, time, battery status, last
calibration date, and calibration due
date are displayed at the top.
The fuel type is selectable by tapping
on the down arrow next to the
diplayed fuel.
Parameter Displayed:
CO Level (measured)
CO2 percentage (calculated)
CO Air Free (calculated)
O2 Level (measured)
Excess Air (calculated)
T1 Temperature (flue temp mea-
sured)
Internal Temperature (ambient air
measured) or T2 Temperature (mea-
sured) if the ambient air probe is
connected to T2
Temperature Difference (T1-Ambient)
Efficiency (Calculated)
The efficiency type can be set to Net
or Gross by tapping on the down
arrow key.
Note: Gross efficiency is used in the
USA.
14
