TPI DC710 User Manual

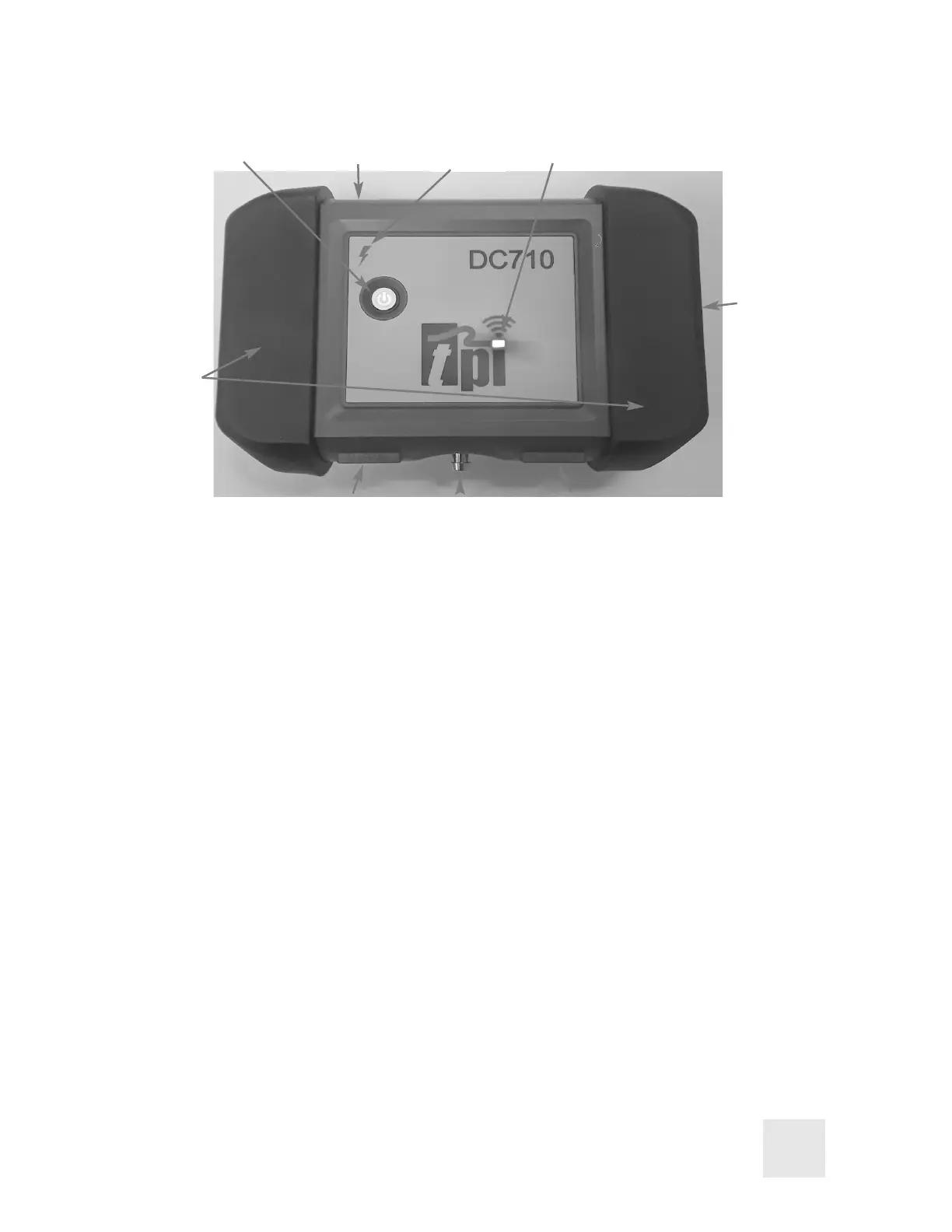

Instrument Overview - Front View
Power Button Used to turn the DC710 on and off. Illuminates
green when power is on.
USB Charger Input Jack Connection for included charger.
Charge Indicator Red = Charging. Green = Fully charged.
Bluetooth Indicator Blue = Connected to smart device.
Red = Disconnected from device.
T1 Input Jack Connection for the flue probe temperature lead
(see page 8).
Gas Sampling Port Connection for Mini Pump Protection Filter and
Flue Probe (see page 8).
T2 Input Jack Connection for ambient tempreature probe. If
this probe isn’t used the DC710 uses it’s internal
temperature sensor (see page 8).
Rubber End Caps Protects the instrument from accidental damage
3
Charge
Indicator
Bluetooth
Indicator
Exhaust
Port
Rubber
End Cap
T1 Gas Sample T2
Input Port Input
Power
Button
USB Charger
Input Jack

TPI DC710 Specifications

General

Brand	TPI
Model	DC710
Category	Measuring Instruments
Language	English
