72

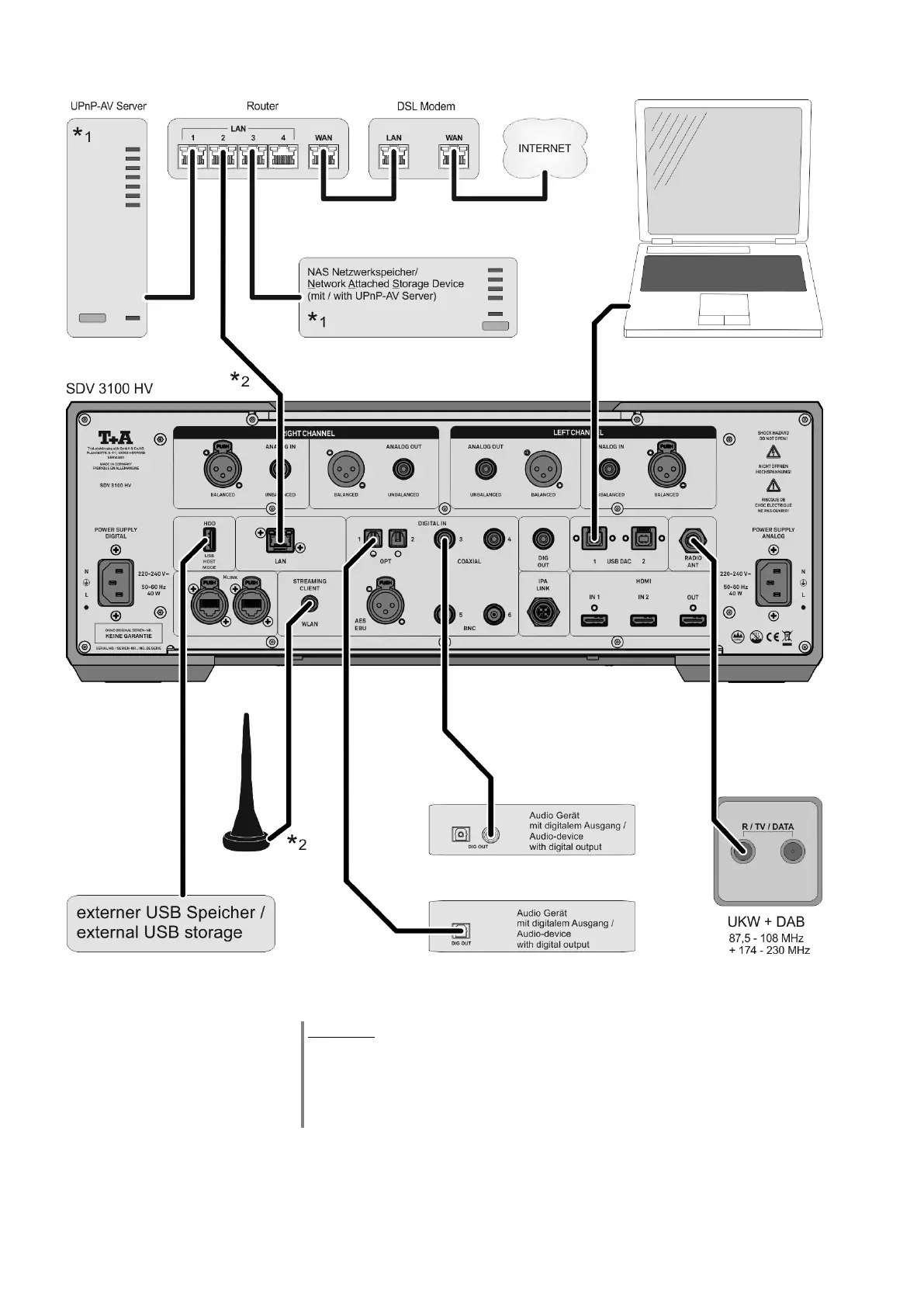

Wiring diagram

Attention!
A properly set up home network with router must be installed and in
operation to use the SDV 3100 HV.
For the use of internet radio a DSL access to the internet is needed.
For questions regarding setting up your network and internet connection
please ask your system administrator or any network specialist.
*1 Music Server with UPnP-AV server software installed
*2 Connection either via Cable-LAN or Wireless-LAN
