Page 4-14 Installation Checkout TQG191-IM
Rev 0: 28 Feb 2019

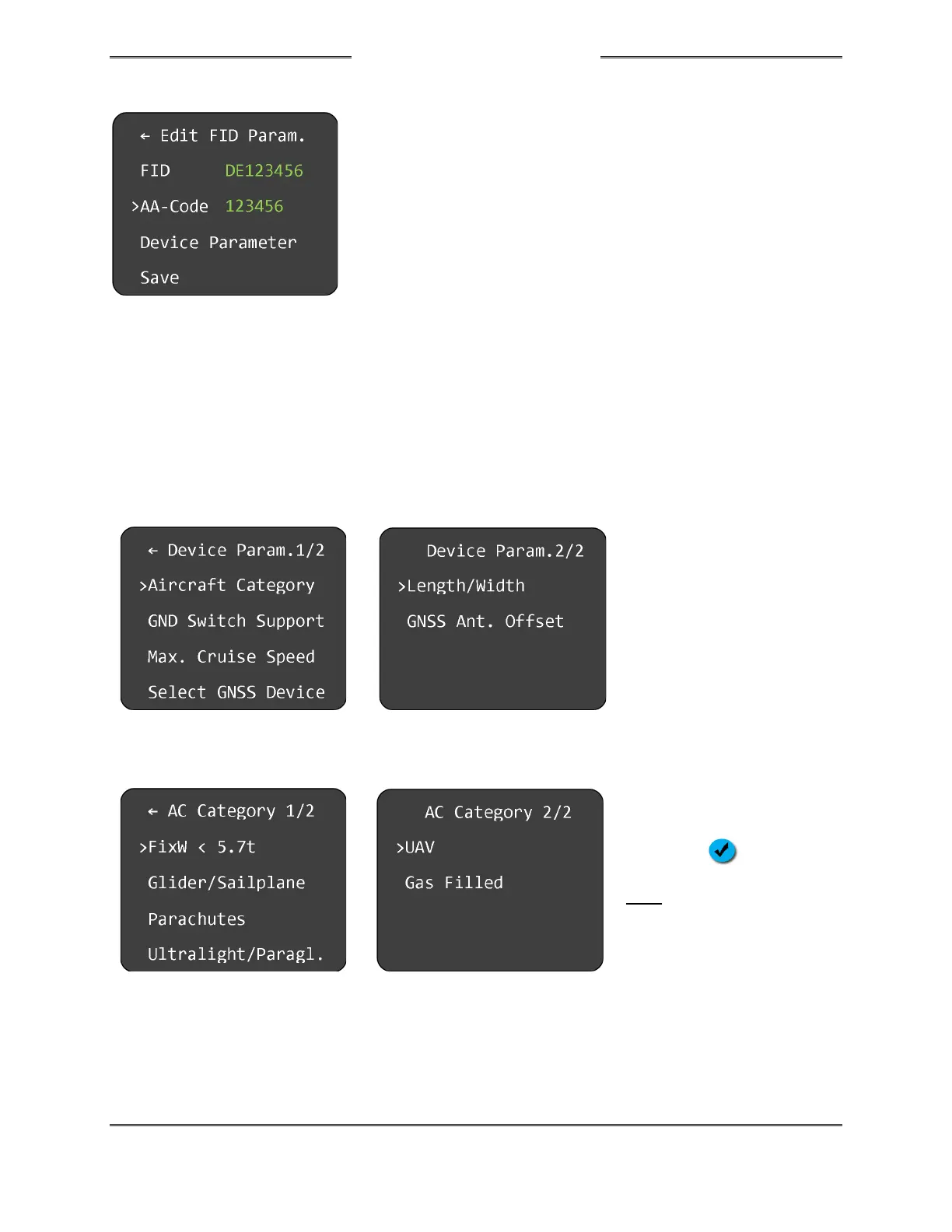

4. Rotate the rotary knob to enter the AA-Code submenu. Press to jump to the next digit,
rotate to select the desired character until the Aircraft Address is complete.
5. When code is complete, turn rotary knob to move cursor to “Save”, save configuration by
pushing the rotary knob. Leave the menu entering the first line (“Edit FID Param.”) and
by pushing the rotary knob.
4.4.2.3 Aircraft Parameter
1. Rotate the Rotary Knob to select “Device Parameter” and push the knob to select. The
following screens appear (2 pages):
2. Select the “Aircraft Category” sub-menu and the following screens appear (2 pages):
NOTE
Only “FixW” is authorized
under this STC
3. Select “FixW < 5.7t”. This is equivalent to the ICAO emitter category for aircraft <15,000
lbs.;
4. When selection is complete, leave the menu in the usual way.
