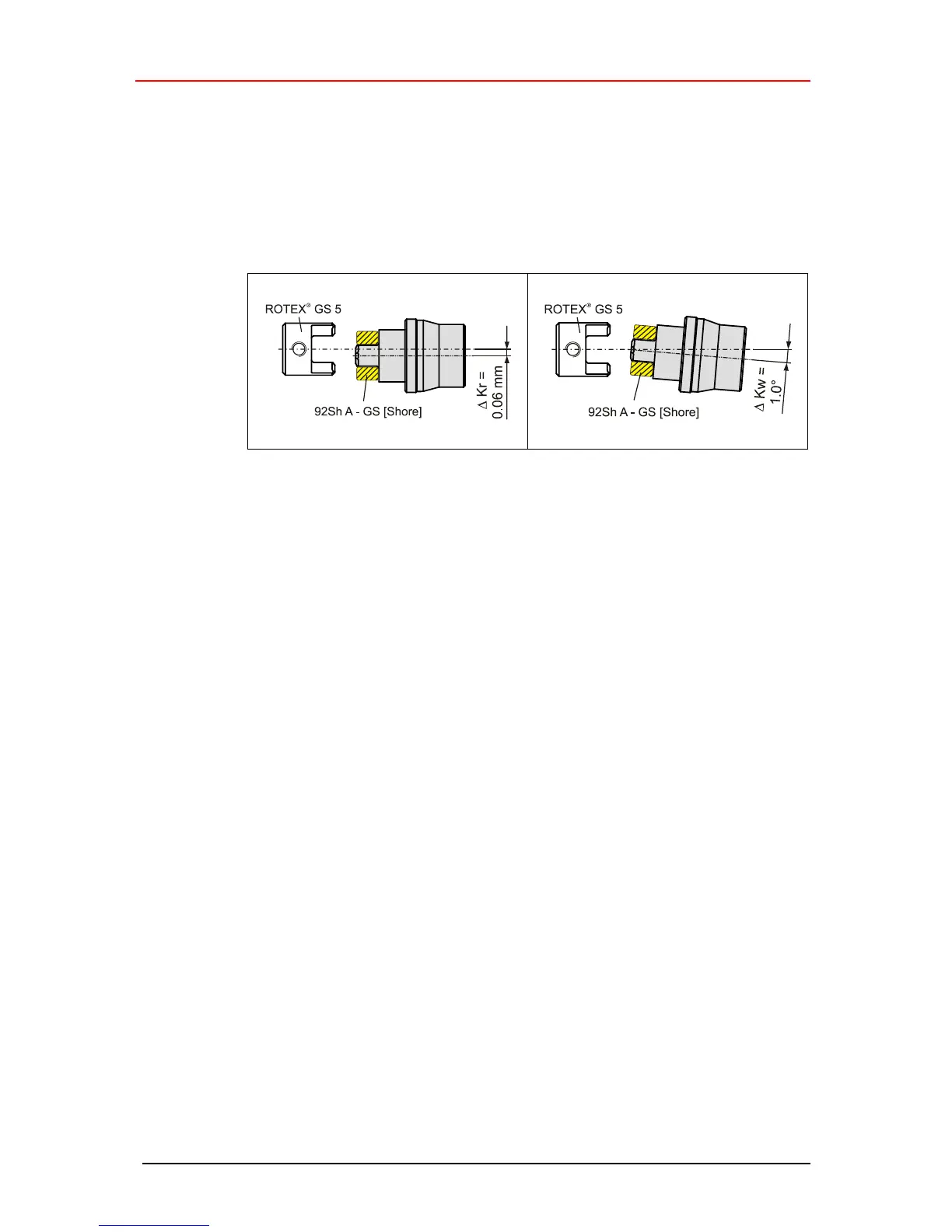

Radial- / angle misalignment
The couplings can take up either a radial ( Kr) or an angle misalignment ( Kw).
Carefully and exactly aligning of the shafts increases the life time of the couplings. The
shaft ends which can be connected should be mounted in bearings directly before and
behind the coupling. Circulating parts must be protected against unintentionally
touching by the user (Safety of machines see DIN EN ISO 12100).
