Trace Engineering Mariner - Figure 8, Typical DC Wiring Diagram

,167$//$7,21
&RS\ULJKW7UDFH(QJLQHHULQJ&R,QF 7HOHSKRQH 3DUW1XPEHU

WK
6WUHHW1( )D[ 2FWREHU
$UOLQJWRQ:$86$ ZZZWUDFHHQJLQHHULQJFRP
3DJH

Caution! This inverter is not reverse polarity protected! If the positive terminal
of the battery is connected to the negative terminal of the inverter, the result is
failure of the unit. This type of failure is very obvious and is not covered under
warranty. Double check when making battery connections!

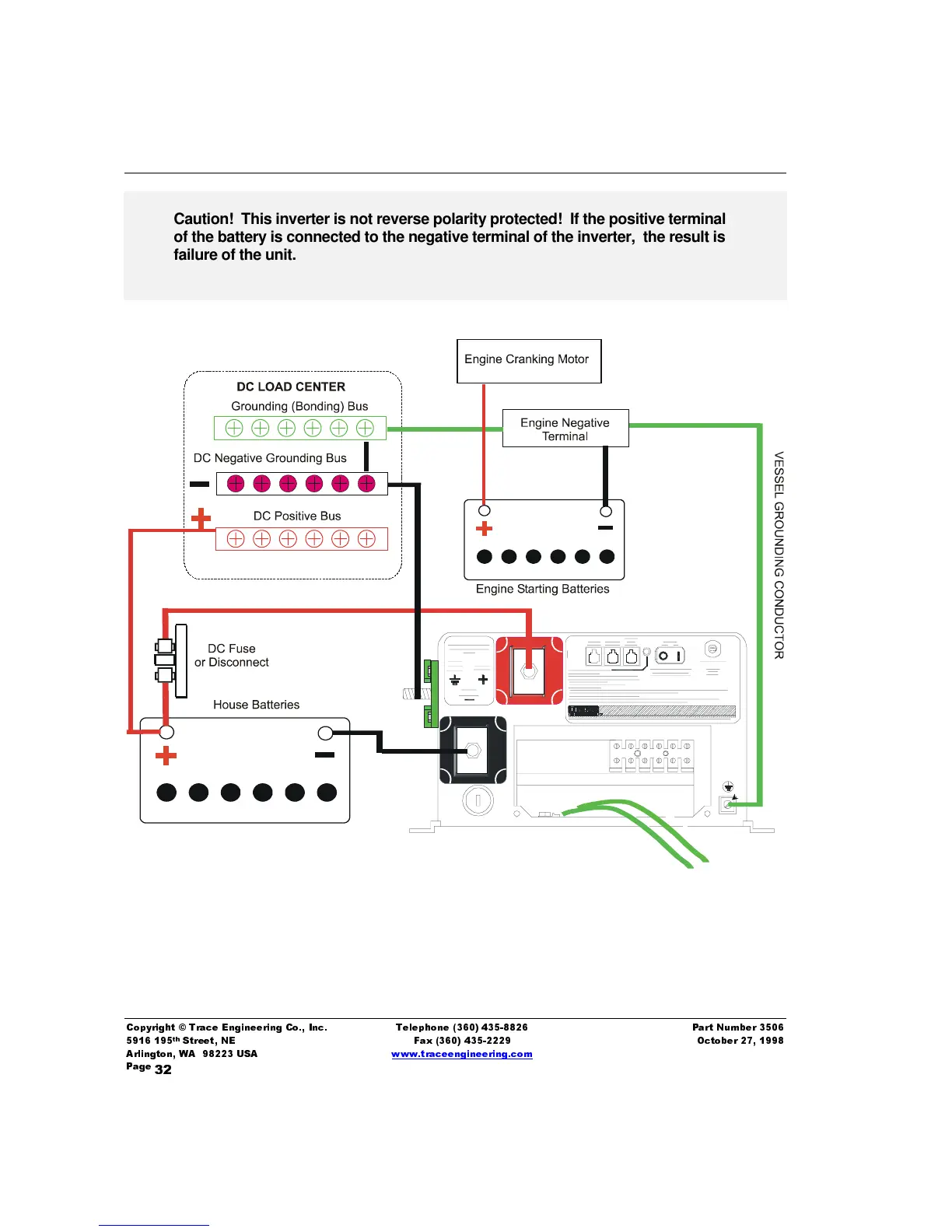

Figure 8, Typical DC Wiring Diagram
