Tracker Off-Road 800SX - Differential Assembly Service

140
XR348

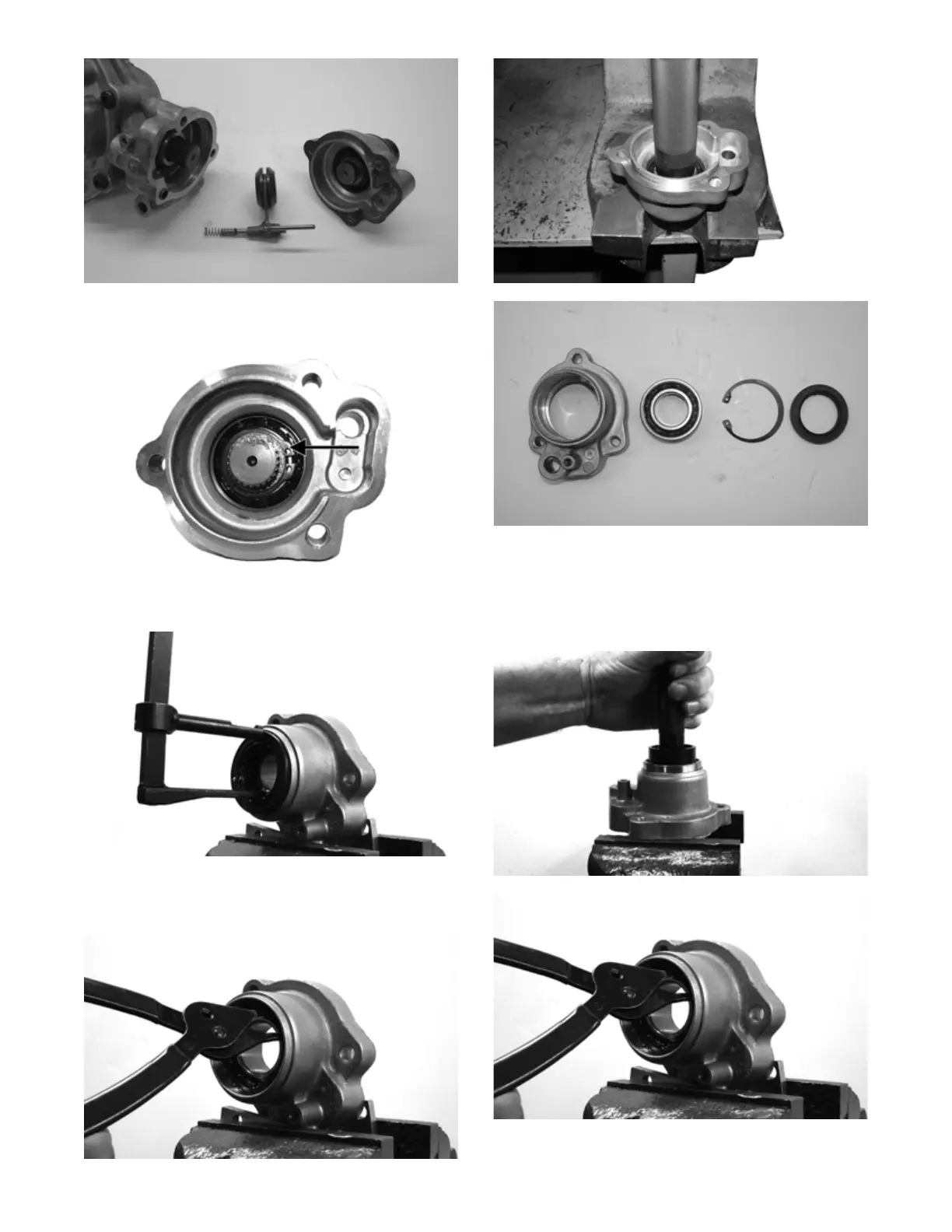

3. Remove the snap rings from the input shaft; then
remove the input shaft from the pinion housing.
GC009A
4. Using a seal removal tool, remove the input shaft
seal. Account for a spacer.
GC010
5. Remove the snap ring securing the input shaft bear-
ing; then place the pinion housing in a press and
remove the bearing.
GC011
XR350
XR351
Assembling Input Shaft
1. Place the pinion housing in a press and install the
input shaft bearing. Secure the bearing with the
existing snap ring making sure the sharp edge of the
snap ring faces to the outside.
GC012
GC011
2. Install the input shaft seal making sure it is fully
seated in the edge of the housing.
