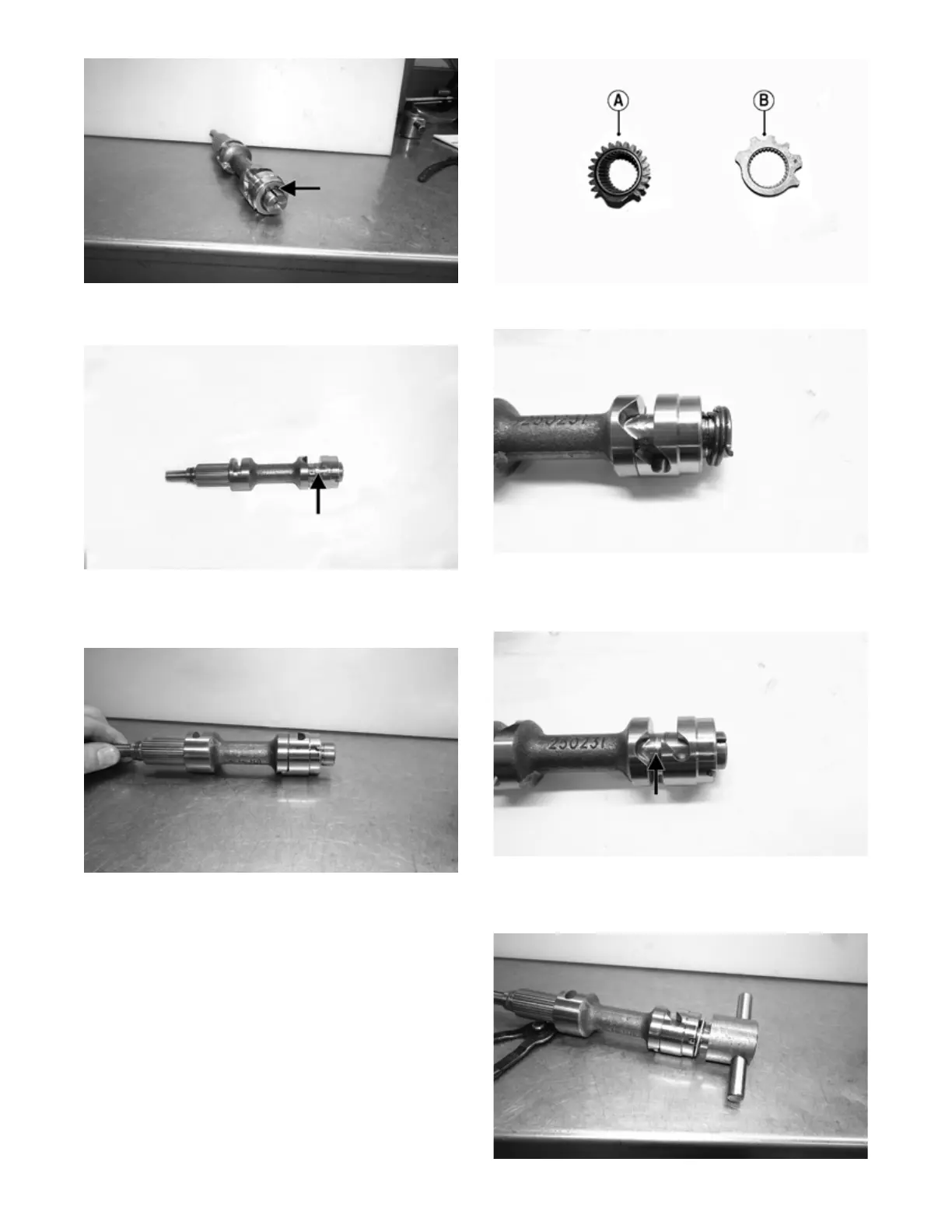

2. Inspect the cam groove for signs of wear. If present,
replace the cam.
TA133A
3. Check the shaft splines for nicks, cracks, chips, or
signs of wear. If any are present, the shift drum must
be replaced.
TA039
4. Check the detent star (A) and shift drum gear (B) for
nicks, cracks, chips, or signs of wear. If any are pres-
ent, the detent star must be replaced.
TA057A
5. Install the spring into the shift drum.
TA121
6. Rotate the cam clockwise so the tab of the spring
installs into the shift drum groove. Install the washer
to retain the spring.
TA122A
7. While holding pressure on the washer, rotate the cam
counterclockwise to lock the cam onto the shift
drum.
