63
MOD548

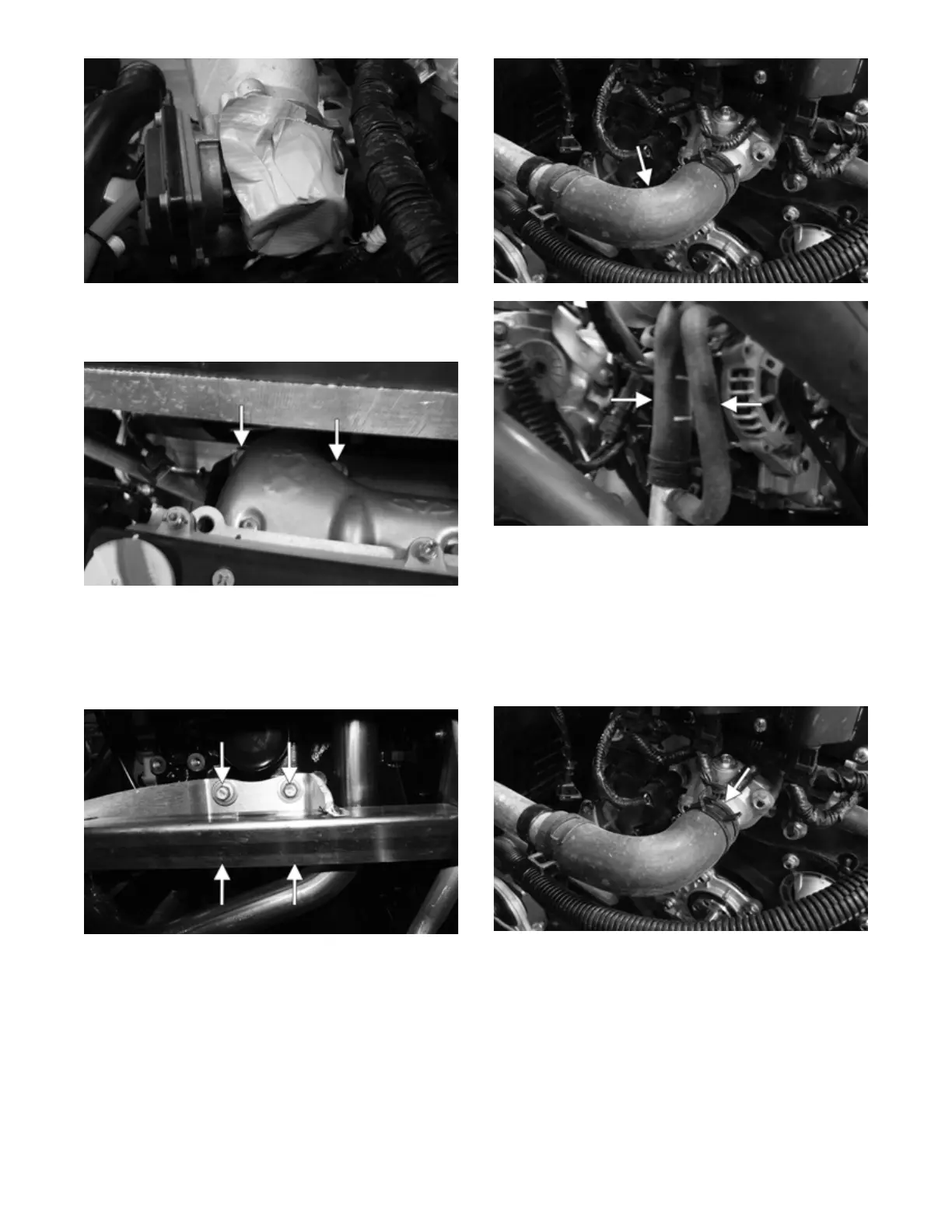

11. Remove the two cap screws and nuts securing the
exhaust to the exhaust manifold; then gently pull the
exhaust from the exhaust manifold.
MOD549.
NOTE: When removing the four cap screws in the
next step, the engine will be completely unsecured in
the chassis
12. Remove the four cap screws at the front of the engine
below the engine oil filter.
MOD550
13. Using suitable clamps, clamp the areas indicated to
minimize coolant leakage.
MOD551
MOD552
NOTE: Coolant will come out when removing the
coolant hoses. It is recommended to have a drain pan
or suitable absorbant material near when removing
coolant hoses.
14. Remove the driver-side coolant hose from the
engine; then remove the coolant hose above the
starter; then remove the coolant hose near the engine
intake.
MOD405
