97

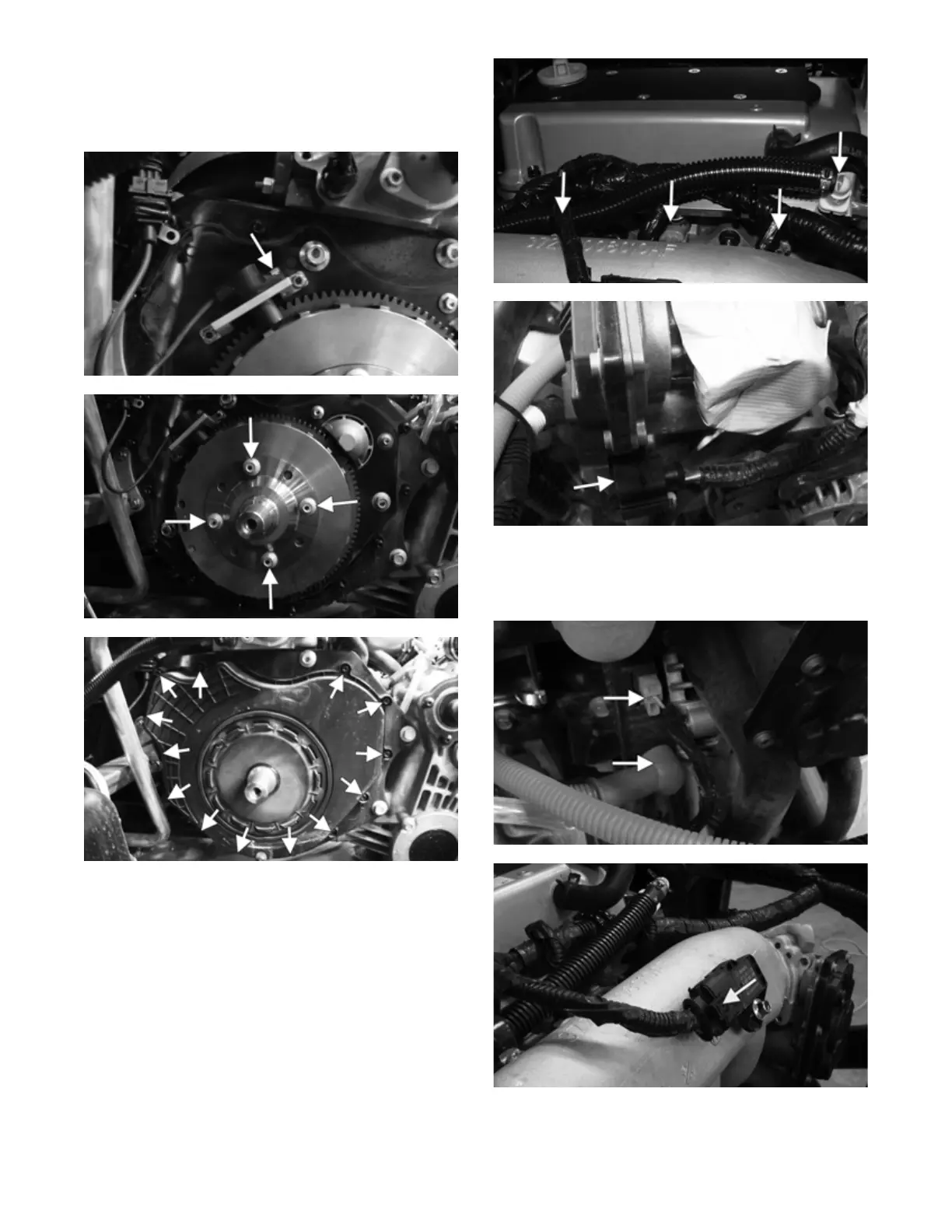

10. Install the crank position sensor into the crankshaft
position sensor bracket and tighten to 8 ft-lb (10.9 N-m).
Install the PTO stub shaft and tighten cap screws to
36.9 ft-lb (50 N-m). Install the flywheel cover and
tighten cap screws securely.
MOD541A
MOD540
MOD539
11. Connect the gas line to the injector rail; then connect
each injector connector to the injector; then connect
the electronic throttle control (ETC) connector to the
ETC.
MOD561
MOD560
12. Install the wires going to the alternator; then install
the temperature/manifold absolute pressure (TMAP)
connector to the temperature/manifold absolute pres-
sure (TMAP) sensor.
MOD558
MOD559
