Division II — Operation/
Maintenance
ATV Specifications
Specifications subject to change without notice.

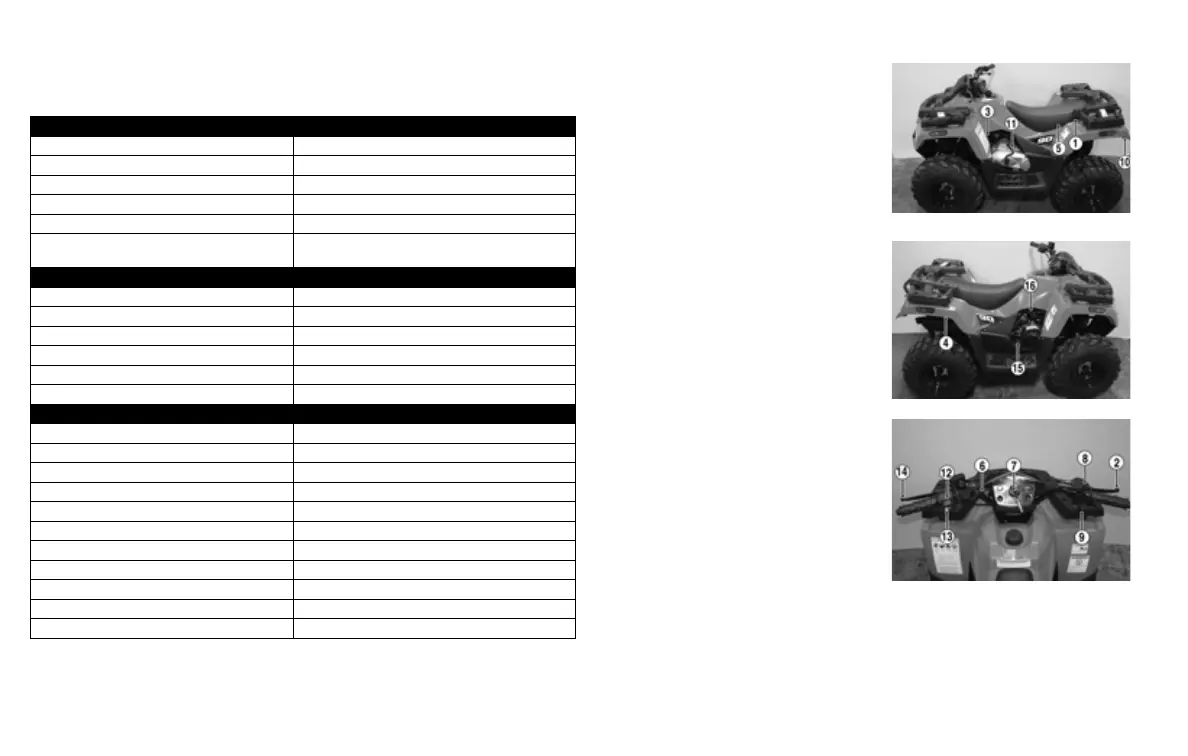

Location of Controls
1. Battery
2. Front Brake Lever
3. Fuel Valve
4. Seat Lock Lever
5. Tool Storage
6. Parking Brake
7. Key Switch
8. Throttle Limiter
9. Throttle Lever
10. Taillight/Brake Light
11. Kick Start Lever
12. Emergency Stop Switch
13. Starter Button
14. Rear Brake Lever
15. Oil Level Stick
16. Shift Lever
NOTE: The ATV you have
purchased may differ slightly
from those shown in the fig-
ures of this manual.
ENGINE AND DRIVE
Type Four-Cycle/OHC/Air Cooled
Bore x Stroke 47 x 51.8 mm (1.85 x 1.62 in.)
Displacement 89.9 cc (5.5 cu in.)
Spark Plug Type CR7HSA
Spark Plug Gap 0.6 - 0.7 mm (0.024 - 0.028 in.)
Brake Type Front Double Drum/Rear Hydraulic Disc w/
Parking Brake
CHASSIS
Length (Overall) 146.8 mm (57.8 in.)
Height (Overall) 96.3 mm (37.9 in.)
Width (Overall) 87.6 mm (34.5 in.)
Tire Size (Front) AT20 x 7-8
Tire Size (Rear) AT19 x 8-8
Tire Inflation Pressure 27.6 kPa (4.0 psi)
MISCELLANEOUS
Dry Weight (Approx) 120 kg (265 lb)
Gas Tank Capacity (Rated) 5.7 L (1.5 U.S. gal.)
Reserve Capacity 1.3 L (0.34 U.S. gal.)
Transmission Lubricant (Recommended) SAE 80W-90 Hypoid
Transmission Lubricant Capacity 250 ml (8.4 fl oz)
Engine Oil Capacity (Approx) 0.8 L (0.84 U.S. qt)
Gasoline (Recommended) 87 Octane Regular Unleaded
Engine Oil (Recommended) 0W-40 ACX All Weather (Synthetic)
Headlights 12V/15W
Brake Light 12V/P21/5W
Starting System Electric w/Kick Start (Emergency)
