36

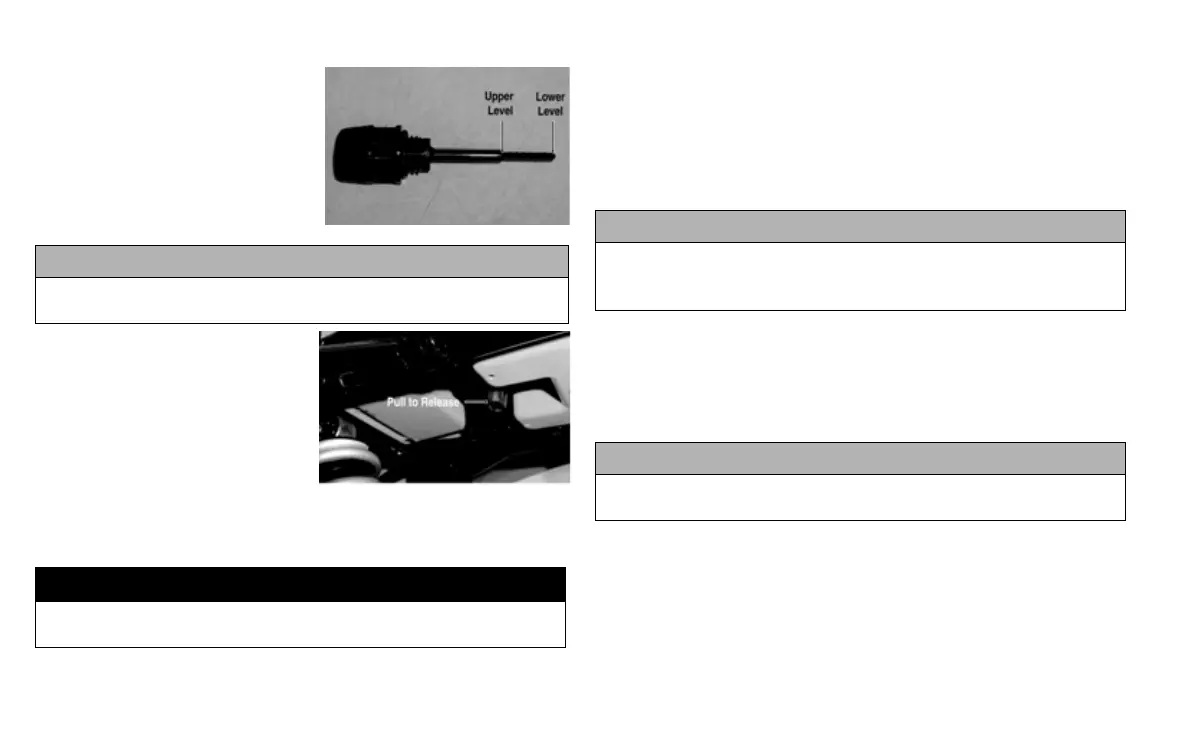

2. Install the oil level stick completely into the engine crankcase.
NOTE: The oil level stick
should be threaded into the
engine crankcase for checking
purposes.
3. Remove the oil level stick; the
engine oil level should be
between the lower level and
upper level on the stick.
Seat Lock
1. To remove the seat, pull the
seat lock lever rearward
(located at the rear of the ATV
under the seat). Raise the rear
end of the seat and slide it rear-
ward.
2. To lock the seat into position,
slide the front of the seat into
the seat retainers and push down firmly on back of seat. The seat
should automatically lock into position.
Safety Flag/Bracket
A bracket is provided for mounting a flag at the rear of the ATV. T h e
flag should be displayed to make the ATV more visible.
Transporting ATV
When transporting the ATV, the ATV must be in its normal operating
position (on all four wheels) and the following procedure must be used:
1. Engage the parking brake and place the transmission in gear.
2. Turn the fuel valve OFF.
3. Secure the ATV with load rated hold-down straps.
NOTE: Suitable hold-down straps are available from your
authorized dealer. Ordinary rope is not recommended
because it can stretch under load.
CAUTION
Do not overfill the engine with oil. Always make sure the oil level
is between the lower and upper levels on the stick.
! WARNING
Make sure the seat is secure before mounting the ATV. Severe
personal injury may result if the seat is not properly secured.
CAUTION
Failure to engage the parking brake and place the transmis-
sion in gear could result in the ATV rolling off the trailer in
the event of tie-down strap failure.
CAUTION
When using hold-down straps, care must be taken not to
damage the ATV.
