43
4. Check the bushing for free-play
by grasping the steering knuckle
and turning it from side to side
and up and down.
5. If boot damage is present or
bushing free-play seems exces-
sive, contact an authorized dealer
for service.

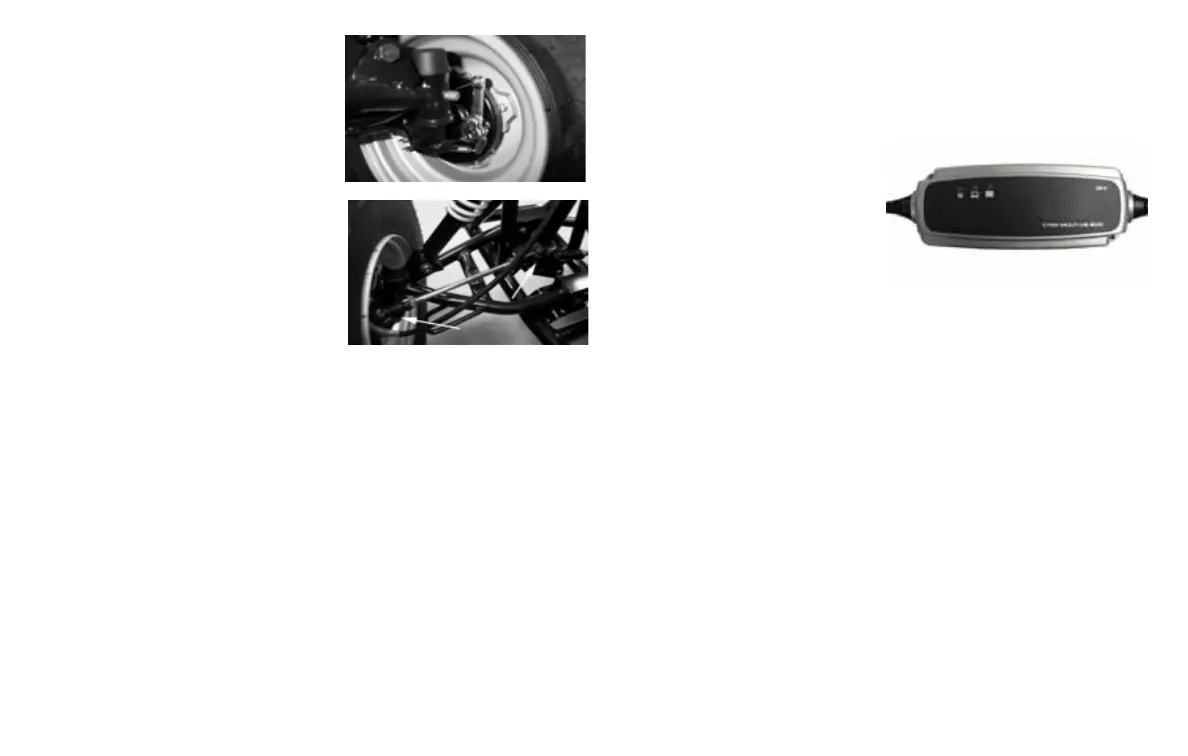

Tie Rod Boots (Inner
and Outer/Right and
Left)
1. Secure the ATV on a support
stand to elevate the front wheels.
2. Remove both front wheels.
3. Inspect the four tie rod boots for
cracks, tears, or perforations.
4. Check the tie rod end free-play by grasping the tie rod near the end
and attempting to move it up and down.
5. If boot damage is present or tie rod end free-play seems excessive,
contact an authorized dealer for service.
Battery
The battery is located under the seat.
After being in service, batteries require regular cleaning and recharging
in order to deliver peak performance and maximum service life. The fol-
lowing procedure is recommended for cleaning and maintaining a sealed
battery. Always read and follow instructions provided with battery char-
gers and battery products.
NOTE: Refer to all warnings and cautions provided with the
battery or battery maintainer/charger.
Loss of battery charge may be caused by ambient temperature, ignition
OFF current draw, corroded terminals, self discharge, frequent start/
stops, and short engine run times. Frequent winch usage, snowplowing,
extended low RPM operation, short trips, and high amperage accessory
usage are also reasons for battery discharge.
Charging/
Maintenance
Charging
NOTE: Use of the CTEK
Multi US 800 for charging or
the CTEK Multi US 3300 for
maintenance charging is rec-
ommended. Maintenance
charging is required on all
batteries not used for more
than two weeks or as required by battery drain.
NOTE: When charging a battery in the vehicle, be sure the
ignition switch is in the OFF position.
1. Clean the battery terminals with a solution of baking soda and
water.
NOTE: The sealing strip should NOT be removed and NO
fluid should be added.
2. Be sure the charger and battery are in a well-ventilated area. Be
sure the charger is unplugged from the 110-volt electrical outlet.
3. Connect the red terminal lead from the charger to the positive ter-
minal of the battery; then connect the black terminal lead of the
charger to the negative terminal of the battery.
