Appendix—How to Create an RSU MAP File
TrafficCast Quick Start—BlueTOAD Spectra and Spectra RSU
Revision 02 May 2019 4-15

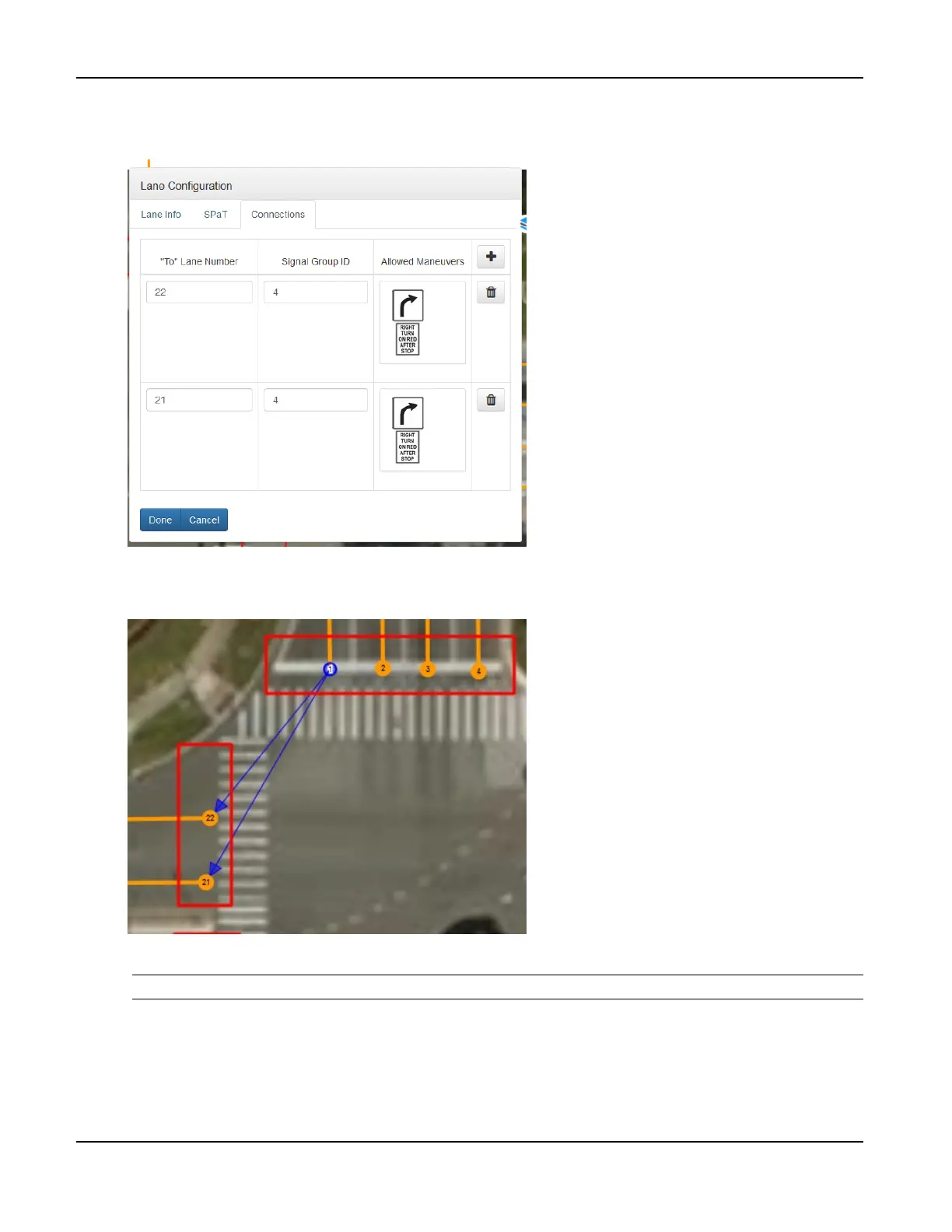

42. Use the + button in the Connections tab window to add more connections and repeat the process
as needed. When done, click Done.
43. Click again on node 1. Blue arrows will be visible to show established connections.
44. Repeat this process for every Ingress lane in the intersection.
Note: Egress lanes do not need connections.
