page 22
TRD-54-T (22.5)
Maintenance
TORQUE REQUIREMENTS!
Follow all torque requirements! Do not use any component with visibly
worn or damaged threads. Failure to follow these safety alerts can lead
to loss of vehicle control, property damage, serious personal injury or
death.

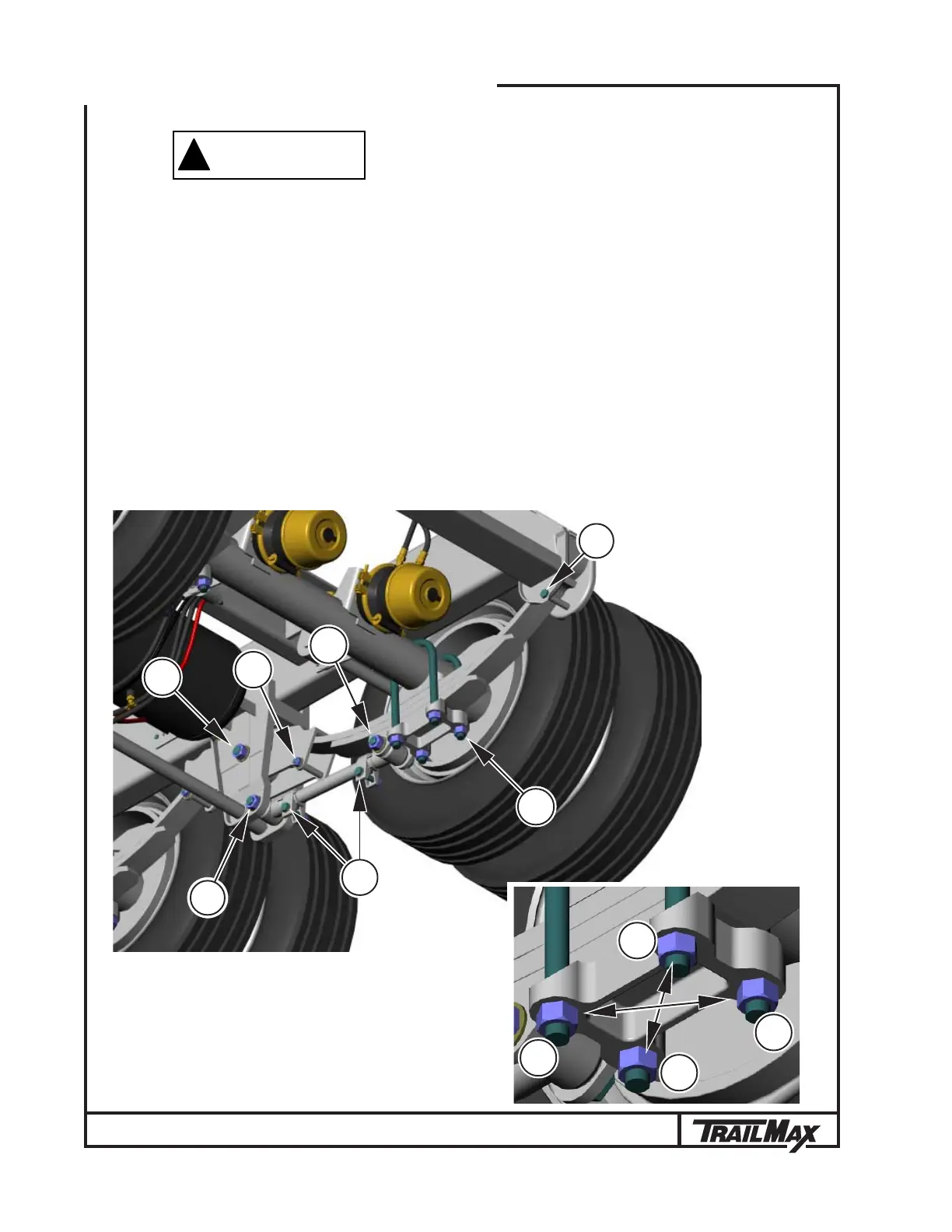

Item Oiled Torque Dry Torque
1. 1
1
/8" -7 Rocker Bolt* 590 lb-ft 790 lb-ft
2.
5
/8" -18 Spring Retainer Bolt 35 lb-ft 50 lb-ft
3. 1" -14 Radius Rod Bolt 540 lb-ft 720 lb-ft
4.
5
/8" -18 Radius Rod Clamp Bolt 130 lb-ft 170 lb-ft
5.
7
/8" - 14 Axle U-bolt (with pattern) 350 lb-ft 470 lb-ft
*Rocker bolt may be of the ‘Huck’ type and have a permanent clinch end instead of
a nut. If so, no torquing is necessary.
5
1st
2nd
4th
3rd
Item #5- Torque the axle
u-bolts in the pattern
shown.
WARNING
!
