TrailMax TRD-54-T - Bearing and Hub Component Details

®
page 49
TRD-54-T (22.5)

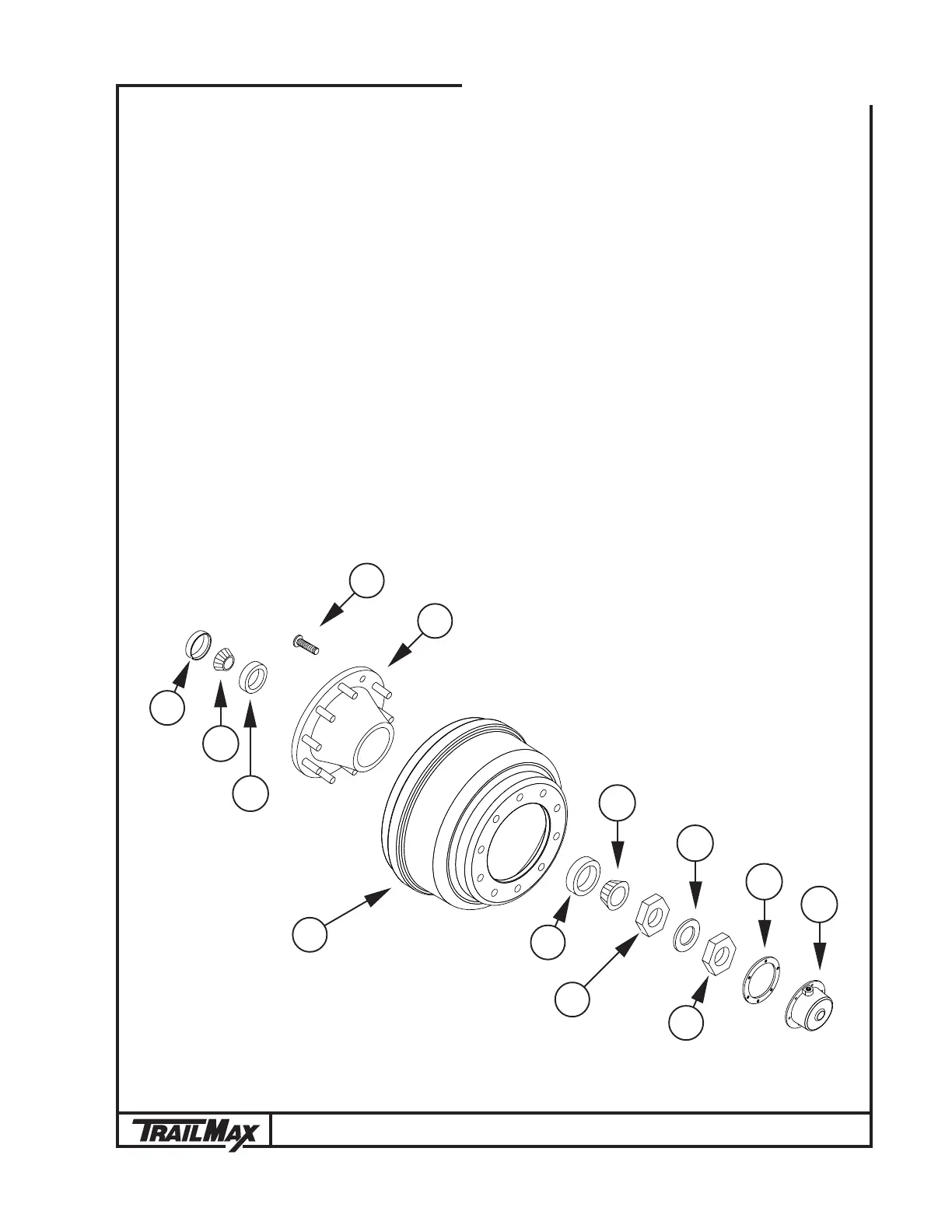

Bearing and Hub Components, 22.5
Ref. Quantity Description......................................................................... Part No.
1. 1 Oil Seal ................................................................................... 46300
2. 1 Inner Bearing Cone .......................................................... HM218248
3. 1 Inner Bearing Cup ............................................................ HM218210
4. 8 Wheel Stud ............................................................................. E-5997
5. 1 Wheel Hub, Non-ABS ...................................................... Webb 2023
1 Wheel Hub, ABS ...................................................... Webb 2023 MLT
6. 1 Brake Drum................................................................. 03123207002
7. 1 Outer Bearing Cup ........................................................... HM212011
8. 1 Outer Bearing Cone ......................................................... HM212049
9. 1 Axle Jam Nut ............................................................................ E-540
10. 1 Inner Jam Nut Washer............................................................... E-573
11. 1 Outer Jam Nut .......................................................................... E-572
12. 1 Oil Cap Seal ..........................................................Stemco 330-3009
13. 1 Oil Cap ..................................................................Stemco 340-4009
Note: Quantities shown are per wheel.
