TrailMax TRD-54-T - Trailer Parts Identification and Diagrams; Structural Components Identification

®
page 36
TRD-54-T (22.5)
Parts
2
1
3
Section3. Parts

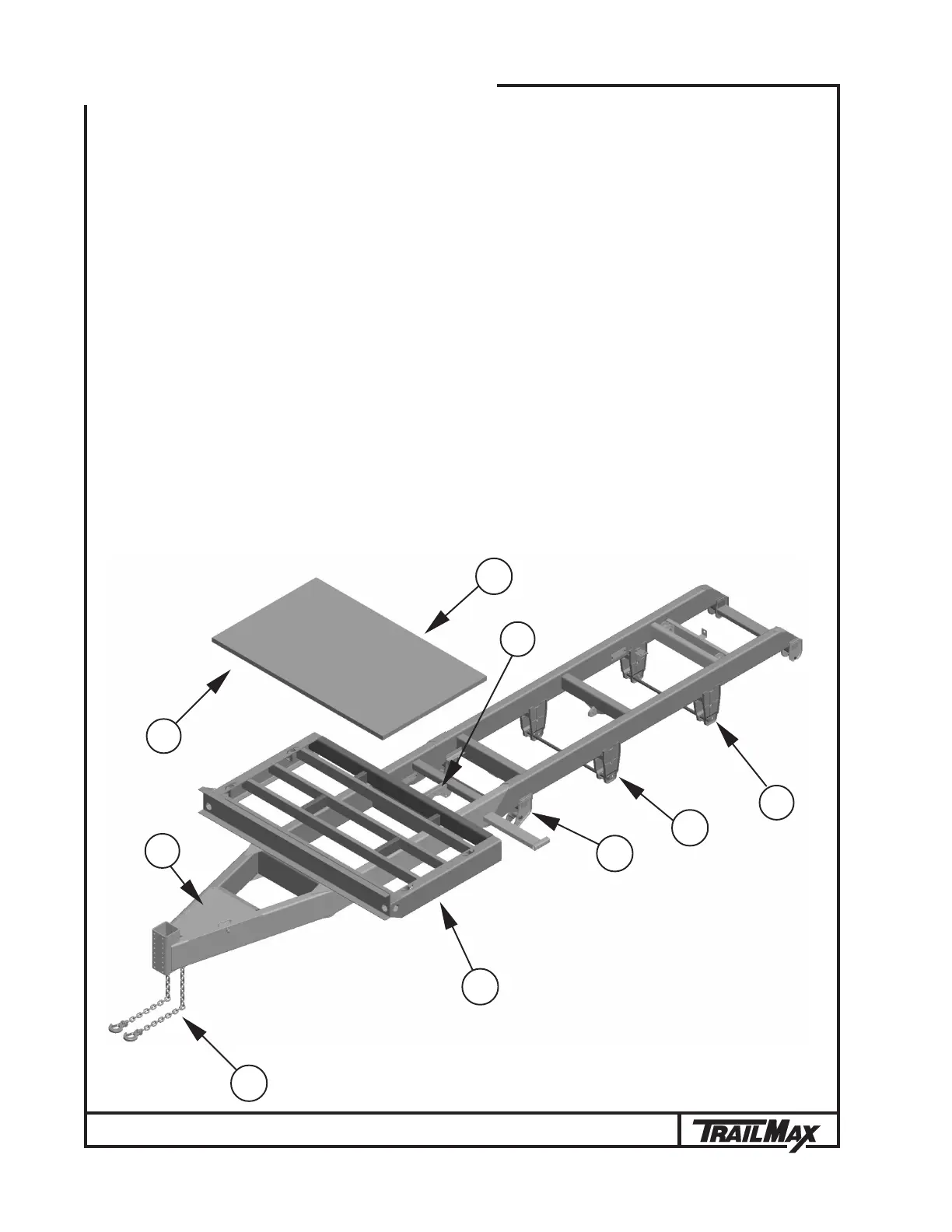

3.1 Structural Components
Sub-frame
Ref. Quantity Description ......................................................................... Part No.
1. 1 Sub-frame Assembly ......................................................... SA-02269
2. 2 Safety Chain and Hook Assembly ........................................
1
/2" ASSY
3. 4 Deck Lumber, 2-1/8” x 12” x 10’ .......................................2 1/8x12 10'
4. 64 1/4-20 x 3” Torx Deck Screws .................................................. 32523
5. 2 *Front Hanger ....................................................................... 7701-01
6. 2 *Center Hanger .................................................................. 16180-01
7. 2 *Rear Hanger ....................................................................... 7703-01
8. 2 *Lower Stationary Side Plate ................................................ C-02024
9. 1 Tool Box Lid Assembly ....................................................... SA-01144
*These items are included in Sub-frame Assembly SA-02269
5
4
7
6
9
8
