TrailMax TRD-54-T - Deck Latch Assembly Components

®
page 41
TRD-54-T (22.5)
Parts
P
A
R
T
S

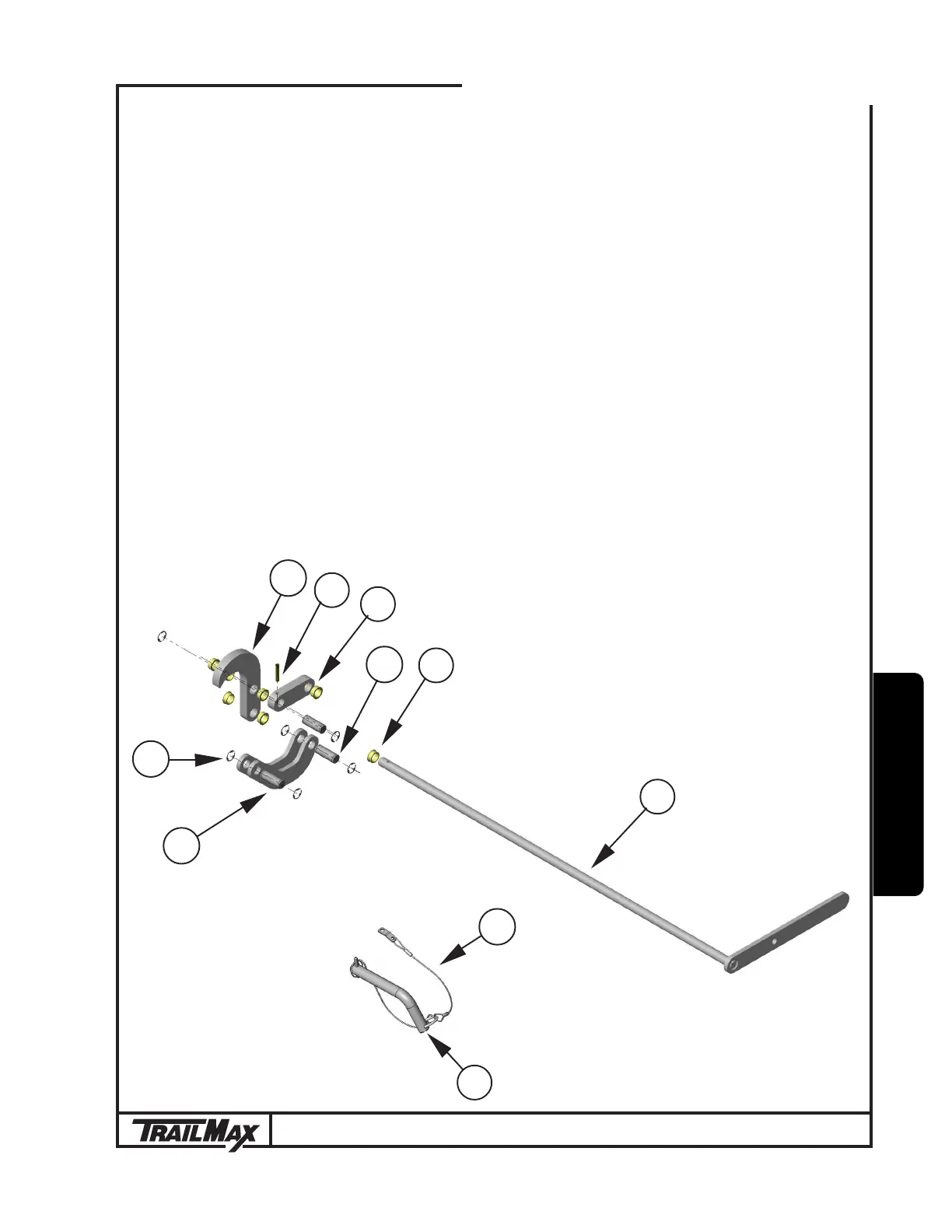

Deck Latch Assembly
Ref. Quantity Description......................................................................... Part No.
1 Latch Assembly ............................................................. SA-12549
1. 1 Latch Hook ..................................................................... C-11171
2. 1 Latch Link ....................................................................... C-11181
3. 1 Latch Arm Assembly .................................................... SA-12544
4. 1 Latch Handle Assembly ................................................ SA-12547
5. 3 Latch Pin ........................................................................ C-06050
6. 6 E-clip SE 98ZD....................................................... 10385-00128
7. 9 Flanged Bushing .......................................................GFI-1618-08
8. 1 Roll Pin,
3
/8" x 2" ................................................................. 64315
9. 1 Bent Arm Pin Assembly ................................................... 2250-BENT
10. 1 12” Lanyard/Stainless Bracket ...................................... 2250-L62N12
Note: Kit names are bold type while component names are regular type; kit compo-
nents are indexed under the kit name. Kit component quantities are per kit; other parts and
kit quantities are per trailer.
2
3
4
5
6
7
8
9
10
1
