TrailMax TRD-54-T - Brake Component Parts Catalog

®
page 48

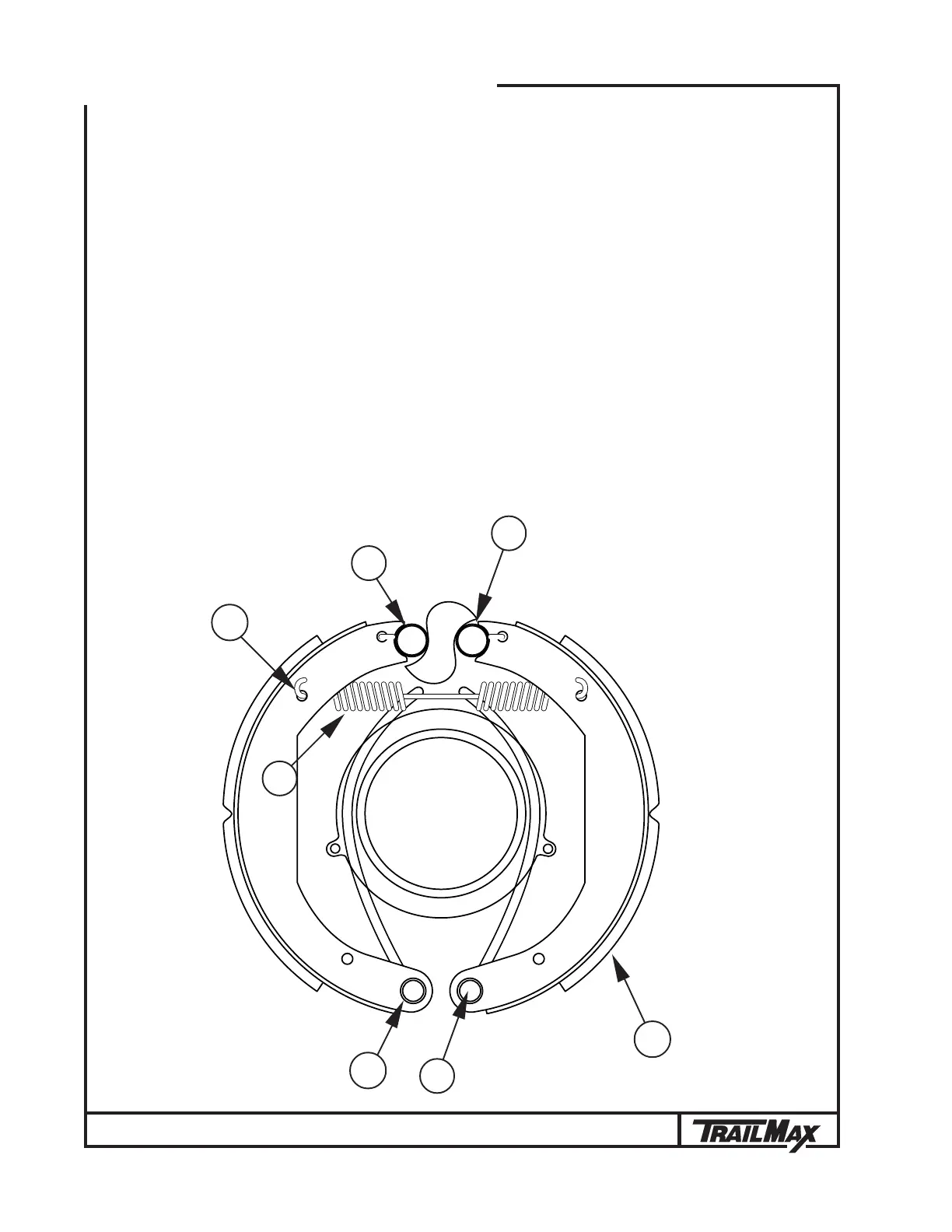

TRD-54-T (22.5)
Brake Components, 22.5
Ref. Quantity Description ......................................................................... Part No.
1. 2 Brake Shoe and Lining ........................................................... E-2778
Brake Repair Kit......................................................................................... Kit 8000
2. 2 Roller ...................................................................... 2297-T-7222
3. 2 Roller Retainer .......................................................... 3105-B-210
4. 2 Anchor Pin ................................................................ 1259-N-274
5. 2 Anchor Pin Bushing ................................................... 1225-B-496
6. 2 Return Spring Pin ........................................................1218-G-85
7. 1 Return Spring ............................................................ 2258-U-619
Note: Kit names are bold type while component names are regular type; kit components
are indexed under the kit name. Kit component quantities are per kit; other parts and kit quanti-
ties are per trailer.
Note: Quantities shown are per brake.
1
Parts
2
3
6
5
4
7
