TrailMax TRD-54-T - Manual Brake (Free Stroke) Adjustment

®
page 34
TRD-54-T (22.5)
Manual Brake (Free Stroke) Adjustment
DISENGAGING THE PAWL!
You must disengage a pull pawl or remove a conventional pawl before
rotating the manual adjusting nut, or you will damage the pawl teeth. A
damaged pawl will not allow the slack adjuster to automatically adjust
brake clearance. Replace damaged pawls before putting the vehicle in
service.
1. Disengage a pull pawl or remove a conventional pawl. The pull pawl can be
disengaged by prying up on it with a screwdriver at least
1
/32".
2. Turn the adjusting nut in the counterclockwise direction until the linings touch the
drum, and then turn the adjusting nut in the opposite direction (clockwise)
1
/2 turn.
3. Repeat the free stroke measurement procedure. If it is necessary to adjust the
stroke, turn the adjusting nut
1
/8 turn clockwise to lengthen the stroke, or
1
/8 turn coun-
terclockwise to shorten the stroke. Repeat these steps until the free stroke length is
correct.
4. Release the pull pawl or reinstall a conventional pawl.
Maintenance
CAUTION
!

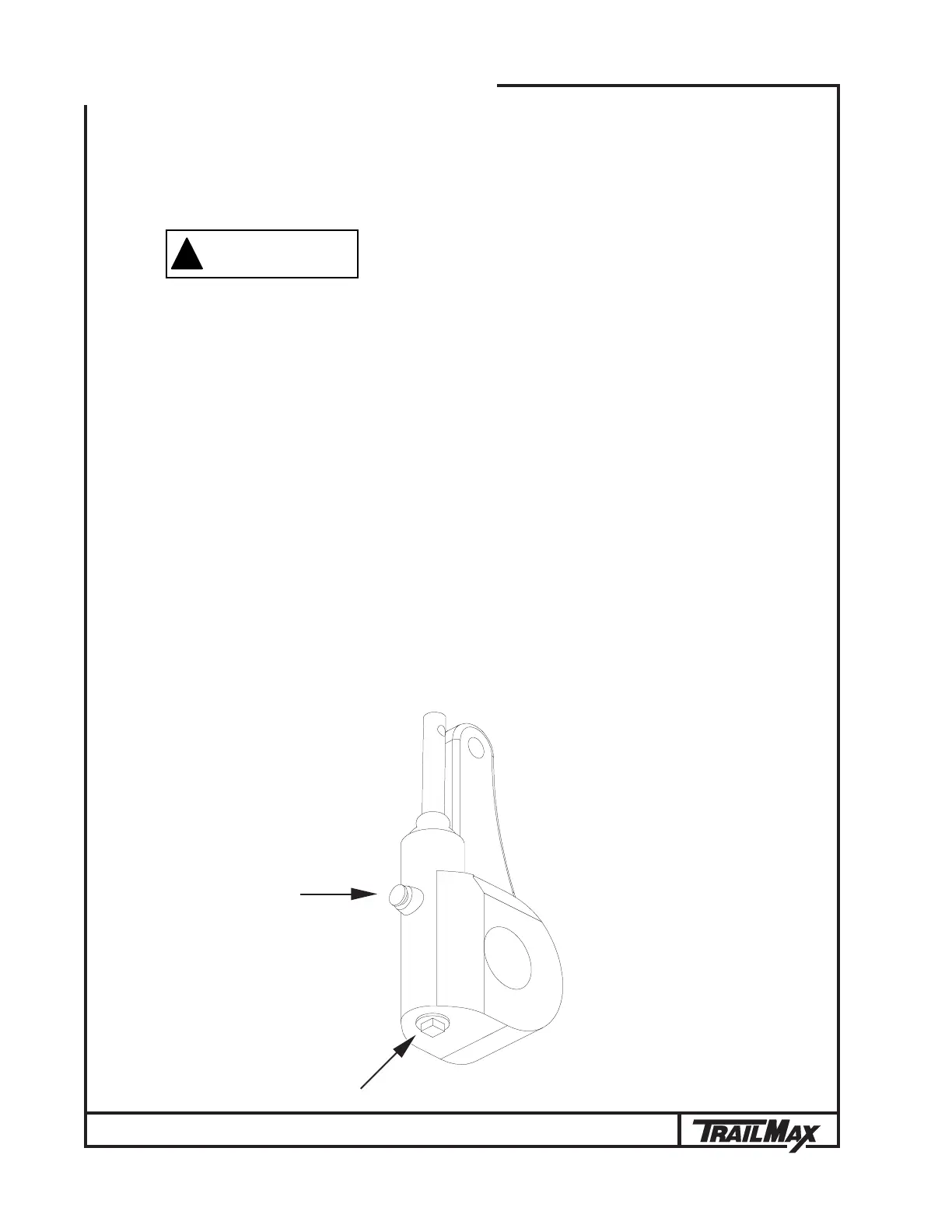

Pawl
Adjusting Nut
