TrailMax TRD-54-T - Deck Assembly Parts Breakdown

®
page 37
TRD-54-T (22.5)
Parts
P
A
R
T
S
5
2

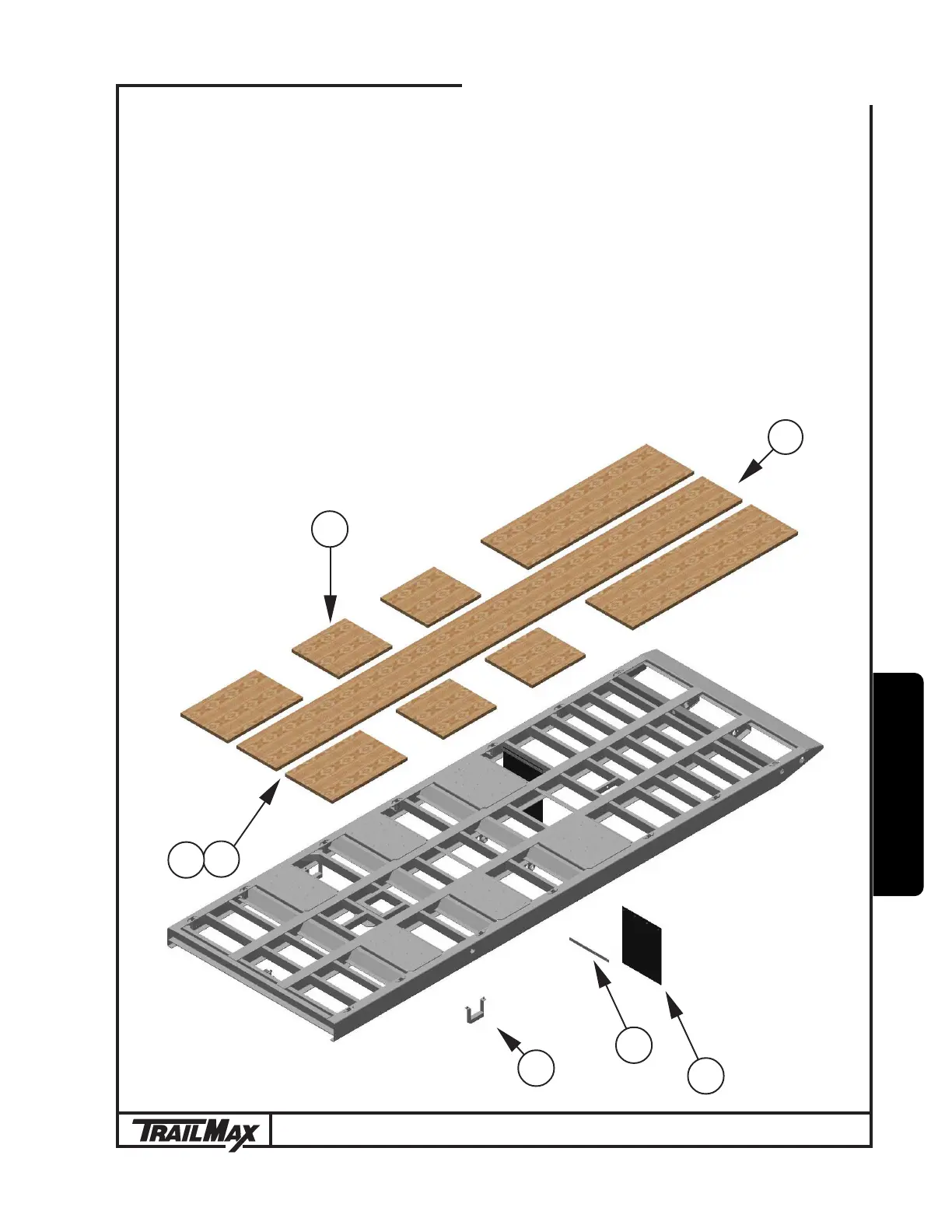

Deck Assemblies
Ref. Quantity Description ......................................................................... Part No.
1. 2 Step Assembly .................................................................. SA-04069
2. 2 Deck Lumber, 2-1/8” x 8” x 24’ .......................................... 2 1/8x8 24’
3. 1 Deck Lumber, 2-1/8” x 10” x 24’ ...................................... 2 1/8x10 24’
4. 17.3 Deck Lumber, Oak 2-1/8” x 7-1/4” x 9’ ................ 2 1/8 x 7 1/4 x 9 Oak
5. 2 TrailMax Mudflap ................................................................. B30PCB
6. 2 Mudflap Bracket ............................................................... MFW 2375
7. 306 1/4-20 x 3” Torx Deck Screws .................................................. 32523
7
4
6
3
2
