TRD-54-T (22.5)

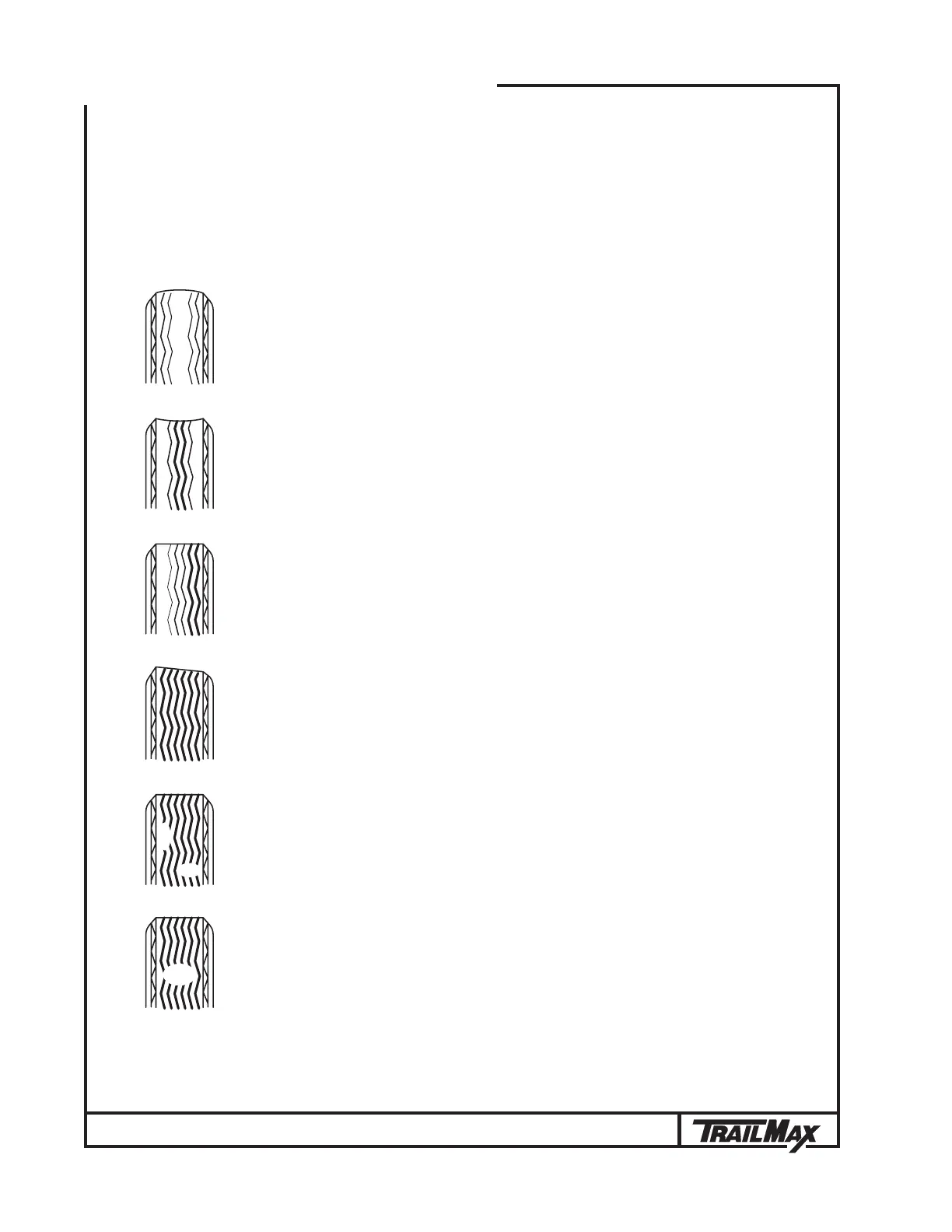

Center Wear Over inflation Adjust pressure to
particular load per
tire catalog
Edge Wear Under inflation Adjust pressure to
particular load per
tire catalog
Side Wear
Loss of camber or
over loading
Adhere to load
limits. Have axle
aligned
Toe Wear Incorrect toe-in Have axle aligned
Cupping Loose bearing or
out of balance
Adjust bearing;
balance tires
Flat spots
Wheel lockup or
tire skidding
Adjust brakes;
avoid sudden
stops
Wear Pattern Cause Corrective Action
Tire Wear Diagnostic Chart
