Installation - Mechanical
CLCH-SVX009J-EN 31

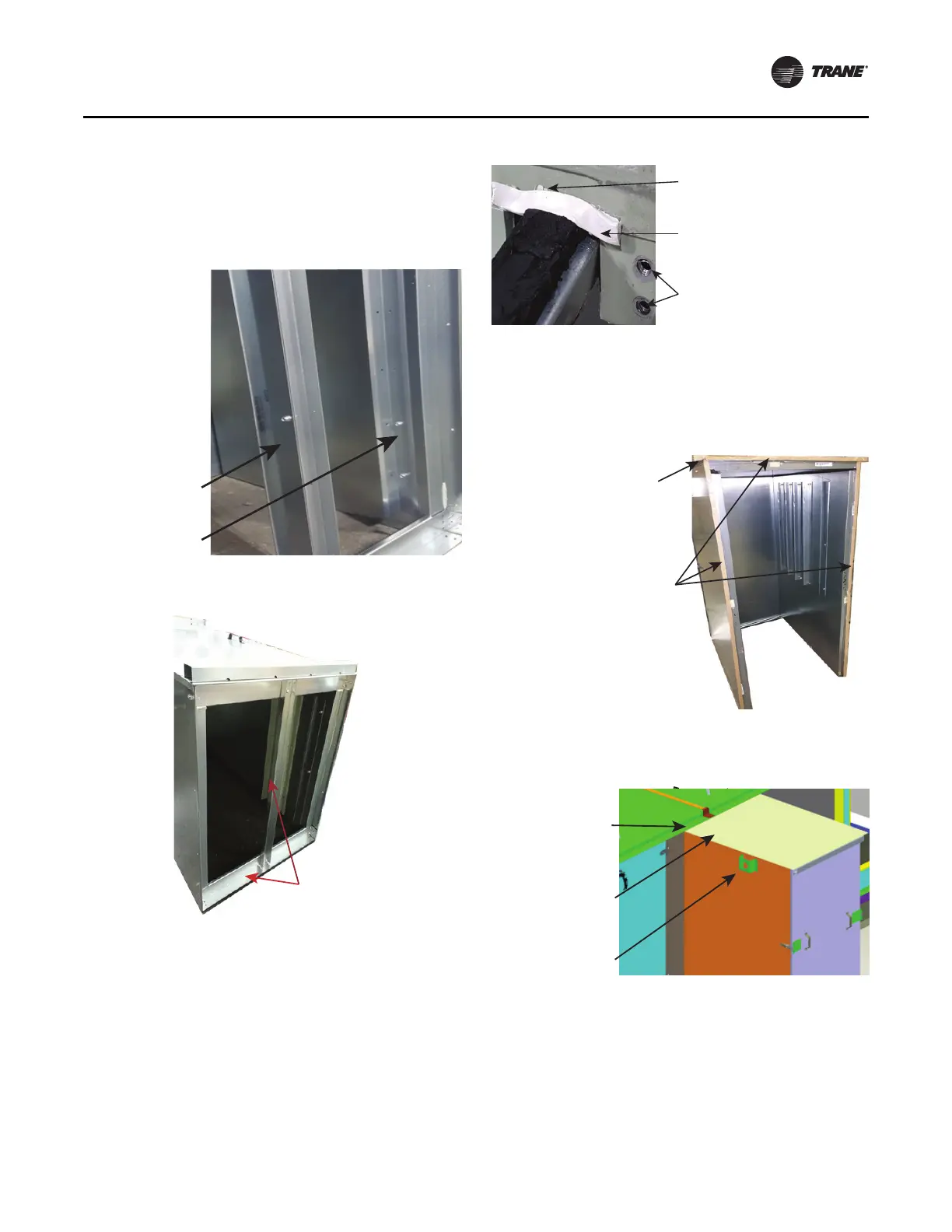

Pipe Cabinets
For outdoor units, the pipe cabinet must be mounted as an
individual section.
1. Remove trim angle and roof hook from the inner side
of the pipe cabinet side wall.
2. Remove the shipping supports from the pipe cabinet.
3. Apply Butyl tape to the unit baserail roof curb notches
(tape must extend beyond the notch) on both sides,
and peel off liner). Remove screw from baserail that
will interfere with trim angles.
4. Apply Butyl tape to the back of pipe cabinet side wall
(full height of the side wall along the outer edge to
base) and roof (full length of the roof along the outer
edge), and peel off the liner. Strips of tape must contact
each other at intersections. Tape must contact gasket.
5. Lift the pipe cabinet using the side lifting lugs. Tuck the
pipe cabinet roof underneath the unit roof overhang.
6. Place the pipe cabinet against the unit and push firmly
to squeeze Butyl tape.
Remove screws
(outside the pipe cabinet)
Butyl tape must
contact gasket
Butyl tape
Butyl tape
with liner
Strips of tape must
contact each other
at intersections
Pipe cabinet
roof
Unit roof
overhang
Lifting lug
To Next Page
