Trane Technologies Climate Changer UCCA - Page 53

Electrical Requirements
CLCH-SVX009J-EN 53
VFD Wiring Schematic
Typical wiring schematic for a VFD is shown in the figure
below. Unit specific wiring schematics are shipped with
each unit.

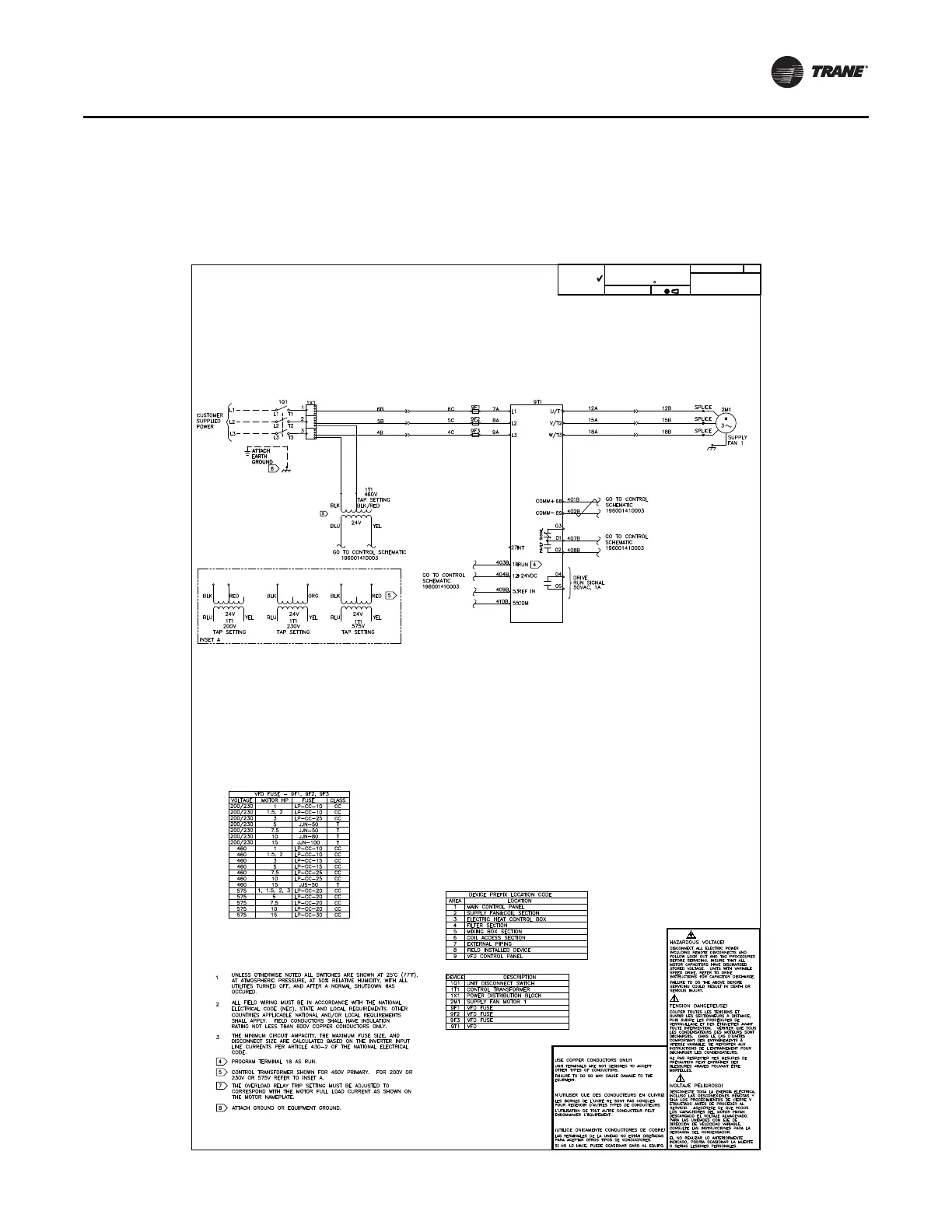

Figure 58. Typical VFD wiring schematic for indoor air handlers
