Trane Technologies Climate Changer UCCA - Page 56

Electrical Requirements
56 CLCH-SVX009J-EN

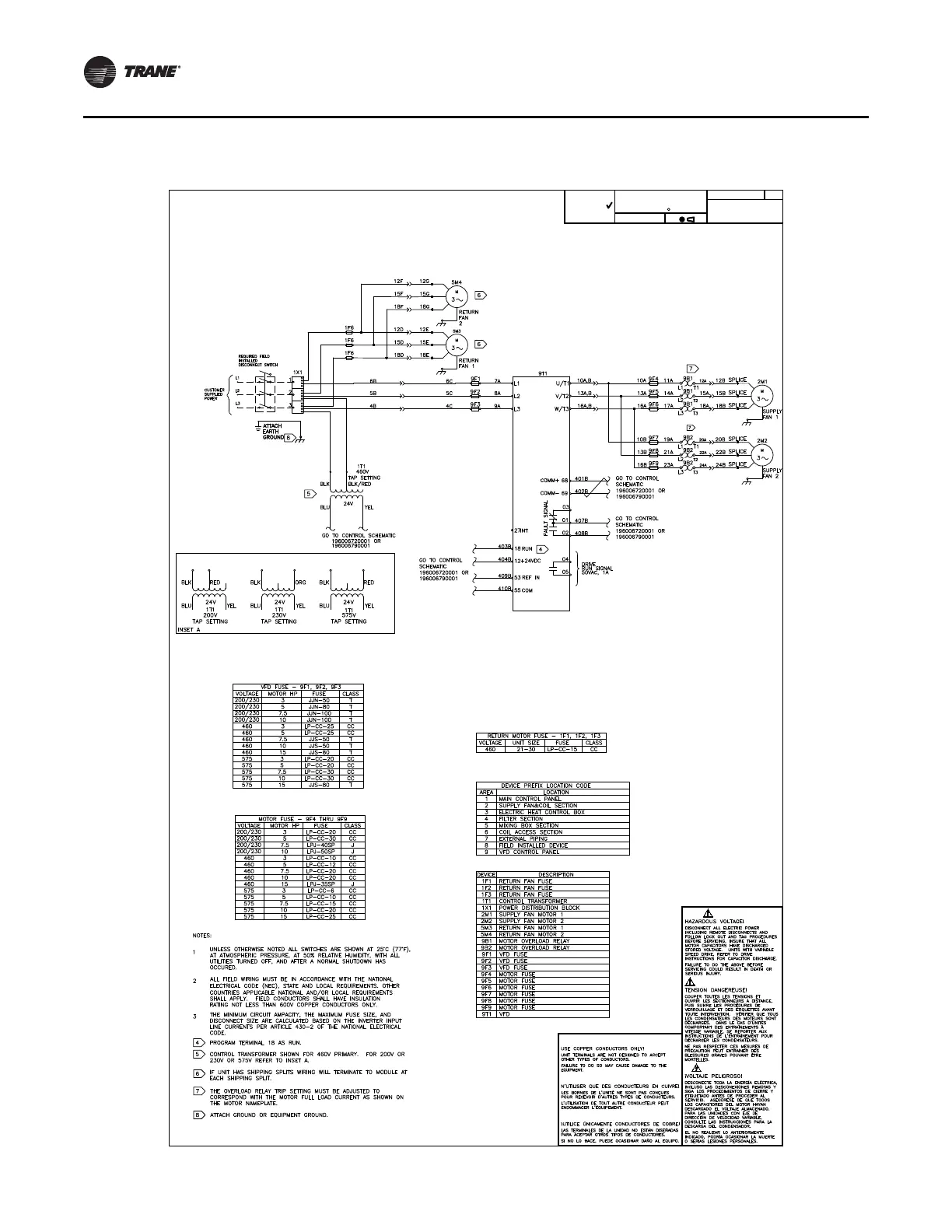

Figure 61. Typical dual fan VFD wiring schematic - outdoor air handler only
