Routine Maintenance
CLCH-SVX009J-EN 71
For unit sizes 8 and 14-30, see Figure 75.

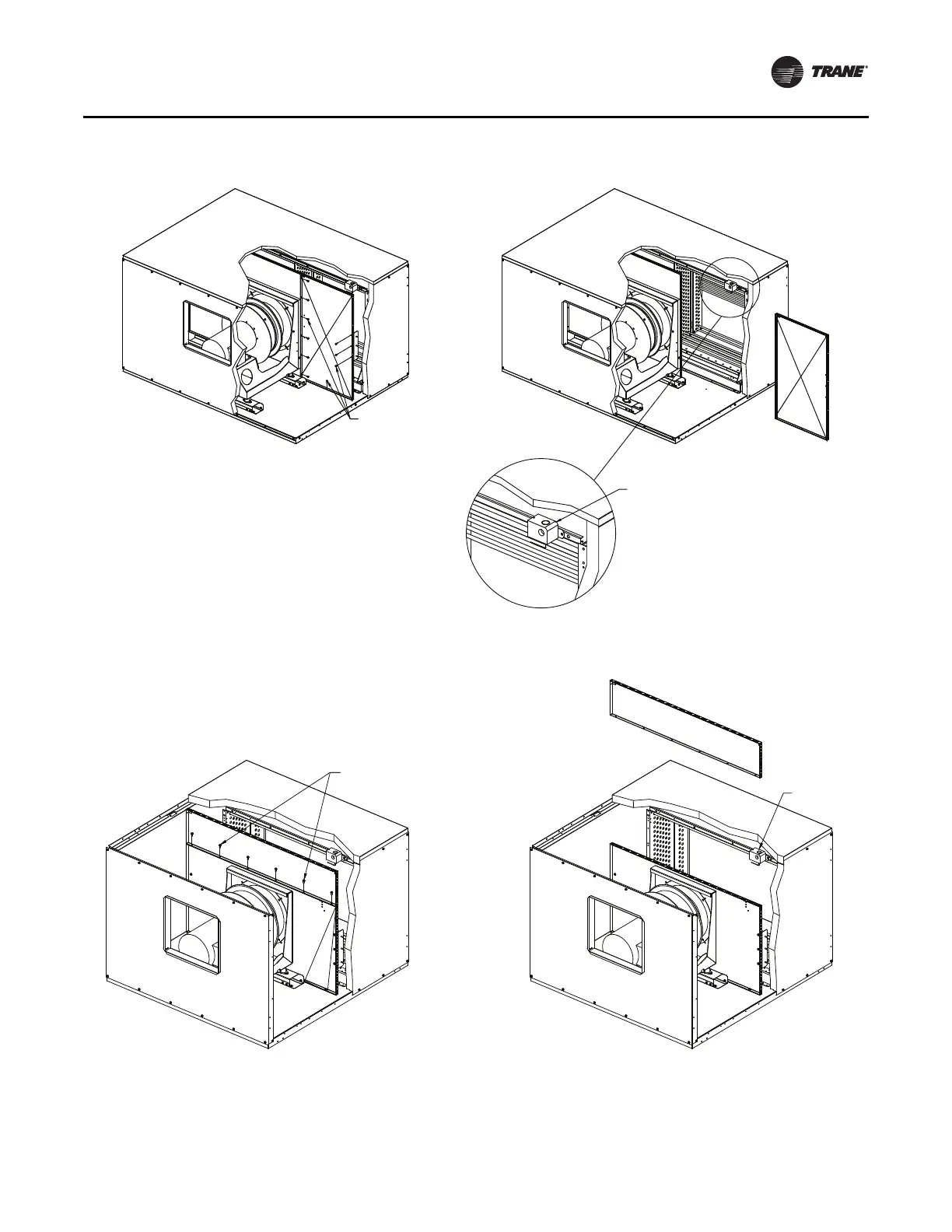

Figure 74. Resetting low limit switch for horizontal DDP fan units sizes 3, 6, 10, and 12
Removable
access
panel
Screw: 10-16 x 0.750 self-driller
Remove all from perimeter panel
Panel
removed
from unit
Low limit freeze stat
Detail A
Figure 75. Resetting low limit switch for horizontal DDP fan units sizes 8 and 14-30
Removable
access panel
Low limit
freeze stat
Panel removed
from unit
Screw: 10-16 x 0.750 self-driller
Remove all from perimeter of panel
