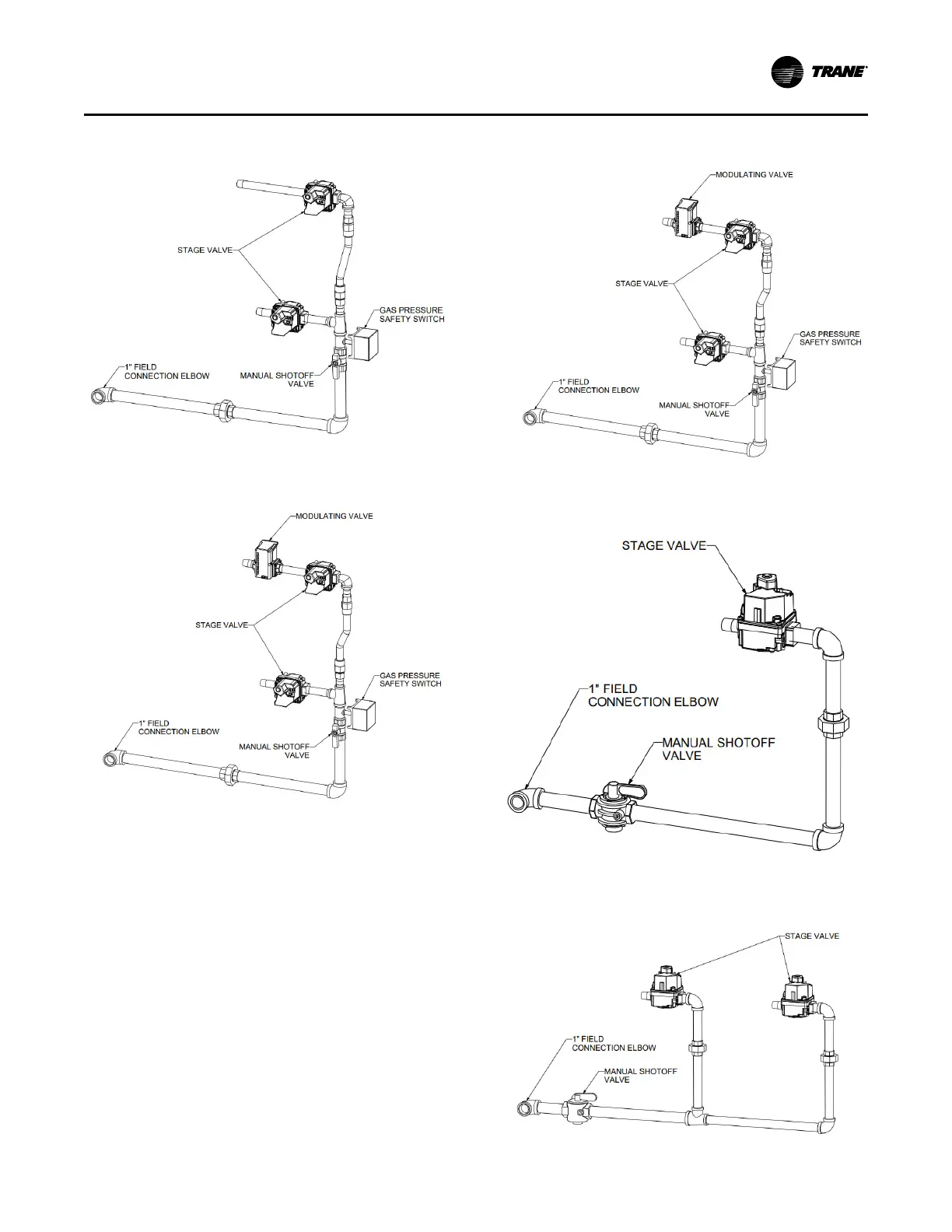

Figure 26. 600MBh 2–stage gas train
Figure 27. 600MBh Mod gas train
Figure 28. 400MBh 2–stage gas train
Figure 29. 400MBh Mod gas train
Figure 30. 800MBh 2–stage gas train
Installation Piping
