Step 2 — Determine Unit Clearances

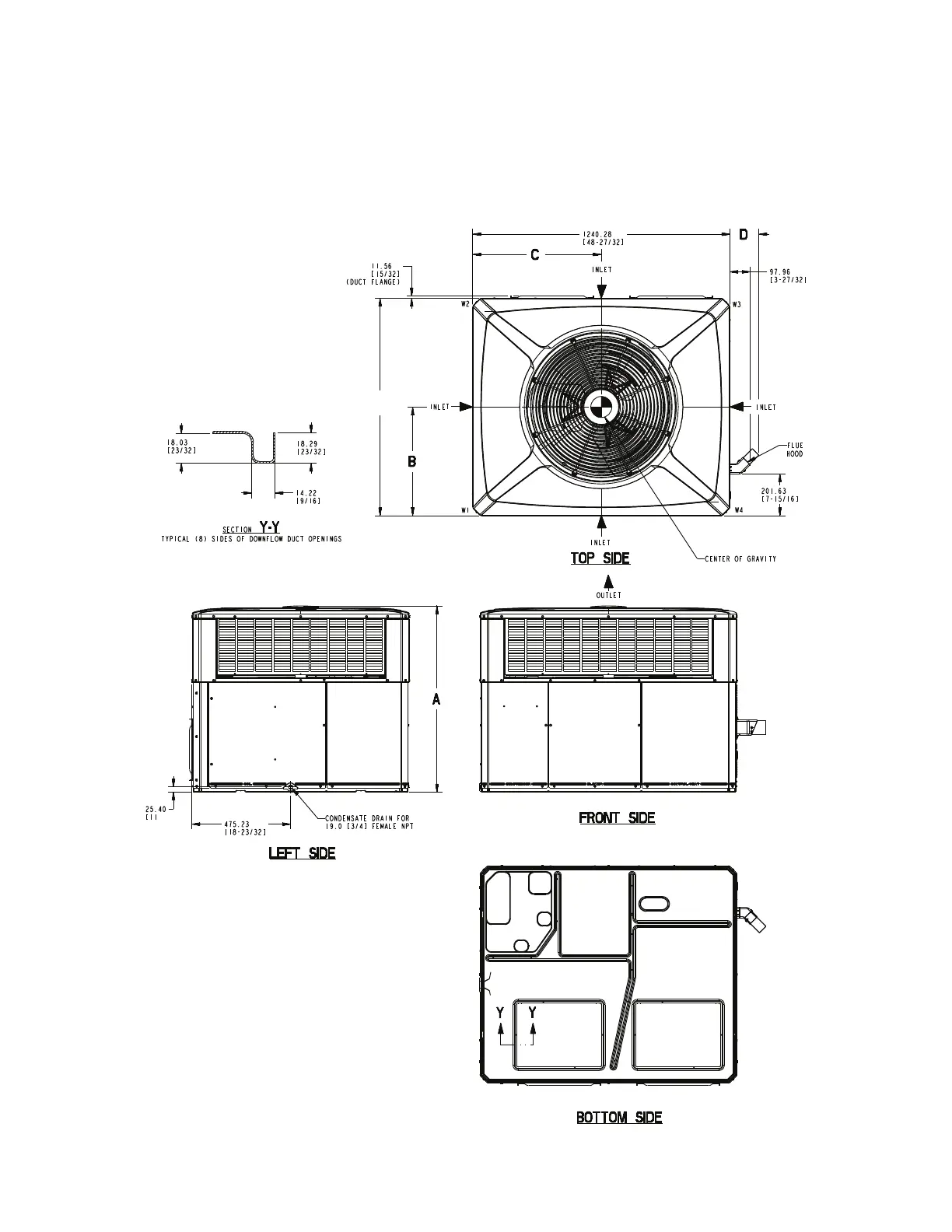

Figure 1. 4YCC4024–4036
Note: The view labeled “Bottom side”
represents the base as viewed looking
up from underneath the unit.
1049.02
[41-5/16]
