FAXA-SVX01B-EN 13
Installation
pre-installation
considerations
CURB LEGEND
Ex

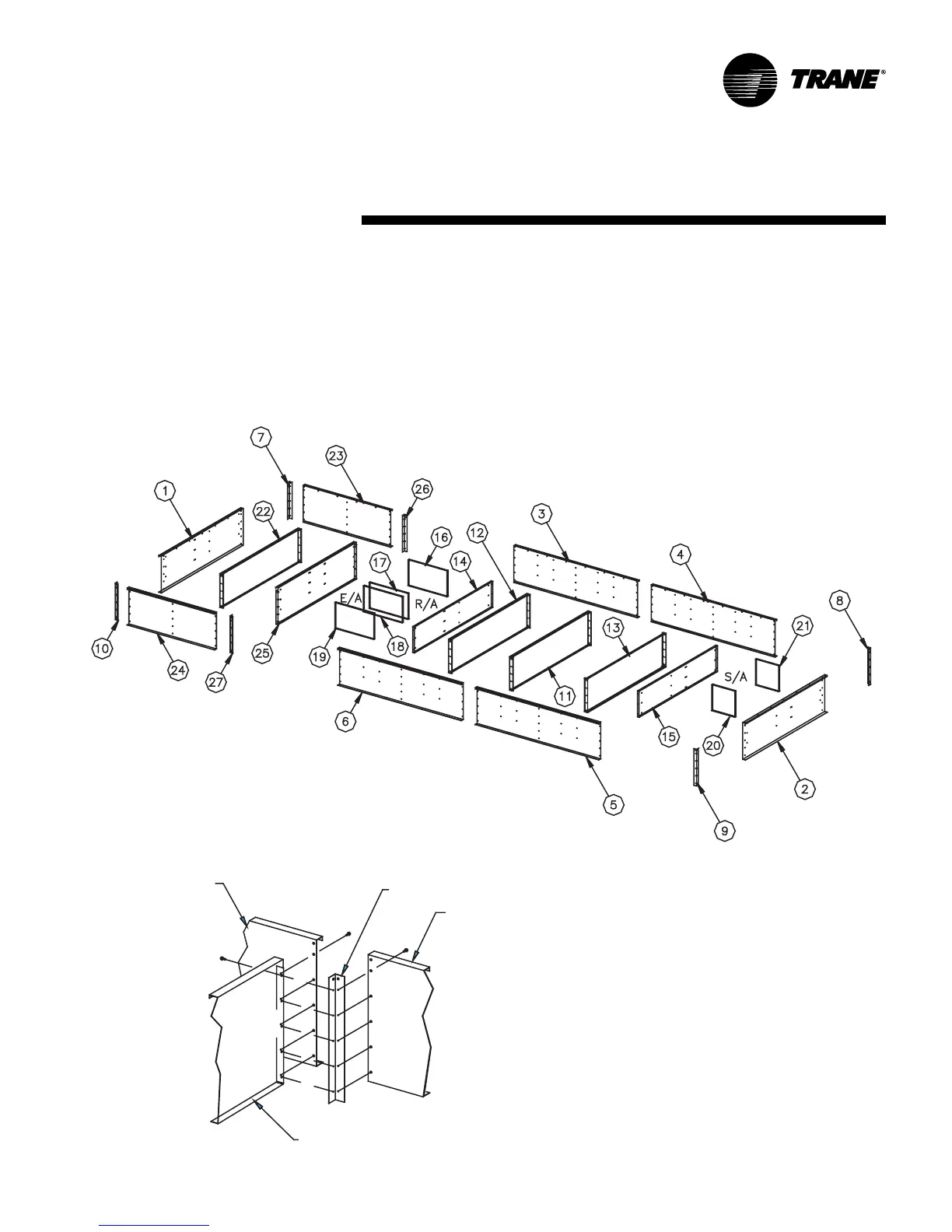

tended Height Roof Curb Component Layout
Wi
th Total Energy Wheel
Figure 4
side rail
side rail
corner angle
duct support end rail
Typical standard roof curb assembly for units with the TE wheel
EN
D
Extended Height Roof Curb Component Layout
Wi
th Total Energy Wheel
Figure 4
Standard roof curb assembly,
units with the TE wheel
Curb legend
(1) end rail (R/A, E/A end) (15) duct support end rail
(2) end rail (S/A end) (16) duct support side rail (R/A end)
(3) side rail (17) duct support side rail (R/A end)
(4) side rail (18) duct support side rail (E/A end)
(5) side rail (19) duct support side rail (E/A end)
(6) side rail (20) duct support side rail (S/A end)
(7) corner angle (21) duct support side rail (S/A end)
(8) corner angle (22) crossmember
(9) corner angle (23) side rail
(10) corner angle (24) side rail
(11) crossmember (25) duct support end rail
(12) crossmember (26) corner angle
(13) crossmember (27) corner angle
(14) duct support end rail
